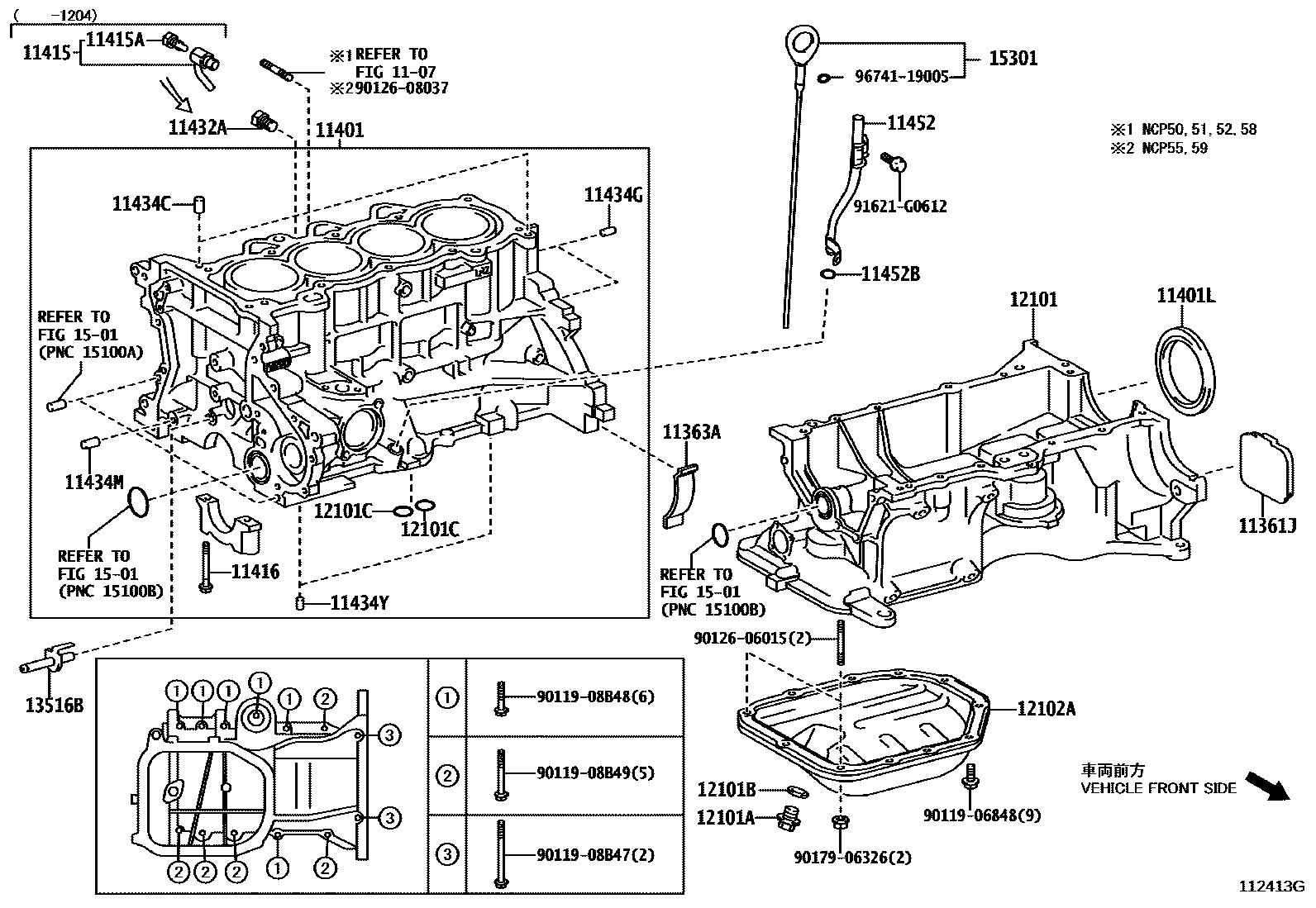

CYLINDER BLOCK

0001 1 0002 1

1107

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i1NZ#,2NZFE..NCP5#..DX,F,GL,TX,U,UL200206-200304

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-21010i1NDTV..NLP51;1NZ#,2NZFE..NCP5#..DX,F,GL,TX,U,UL200206-200304

11401BLOCK SUB-ASSY, CYLINDER

main11401-29675i2NZFE..NCP50200206-200304

sub11401-29845

main11401-29686i1NZFE..NCP51,55,58,59200206-200212

sub11401-29687

main11401-29687i1NZFE..NCP51,55,58,59200212-200304

sub11401-29855

main11401-29845i2NZFE..NCP50200304-200812

sub11401-29846

main11401-29846i2NZFE..NCP50200812-201111

sub11401-29847

main11401-29847i2NZFE..NCP50201111

sub11401-29848

main11401-29855i1NZ#..NCP51,52,55,58,59200304-200812

sub11401-29856

main11401-29856i1NZ#..NCP51,52,55,58,59200812-201111

sub11401-29857

main11401-29857i1NZ#..NCP51,52,55,58,59201111-201204

sub11401-29858

sub12315-21044

sub12315-21051

sub15100-21043

sub15100-21053

sub91551-80635

sub91551-C0830

main11401-29858i1NZ#..NCP51,52,55,58,59201204

sub11401-80881

main11401-39545i1NDTV..NLP51200206-200310

sub11401-39715

sub90345-52001

main11401-39615i1NDTV..NLP51200310-200404

sub11401-39715

sub90345-52001

main11401-39715i1NDTV..NLP51200404-200505

sub11401-39716

main11401-39716i1NDTV..NLP51200505-200708

11401LSEAL, ENGINE REAR OIL

main90311-75016i1NZ#,1NDTV,2NZFE..NCP5#,NLP51200206-201201

sub90311-75019

main90311-75019i1NZ#,2NZFE..NCP5#201201-201409

sub90311-75022

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i1NZ#,2NZFE..NCP5#200206-201204

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1NZ#,2NZFE..NCP5#200206-201204

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02125i1NZ#,2NZFE..NCP5#200206-201409

sub90910-02207

main90910-02147i1NDTV..NLP51200206-200708

sub90910-02183

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i1NZ#,2NZFE..NCP5#201204

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i1NZ#,1NDTV,2NZFE..NCP5#,NLP51200206

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i1NZ#,1NDTV,2NZFE..NCP5#,NLP51200206

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i1NZ#,2NZFE..NCP5#200206-201409

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08120i1NZ#,1NDTV,2NZFE..NCP5#,NLP51200206

11452GUIDE, OIL LEVEL GAGE

main11452-21030i1NZ#,2NZFE..NCP5#200206-201409

main11452-33020i1NDTV..NLP51200206-200708

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1NZ#,1NDTV,2NZFE..NCP5#,NLP51200206-201409

12101PAN SUB-ASSY, OIL

main12111-21033i1NZ#,2NZFE..NCP5#200206

main12111-33050i1NDTV..NLP51200206-200708

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1NZ#,1NDTV,2NZFE..NCP5#,NLP51200206

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1NZ#,1NDTV,2NZFE..NCP5#,NLP51200206-201409

12101CRING, O(FOR OIL PAN)

main96722-24020i1NZ#,1NDTV,2NZFE..NCP5#,NLP51200206-201409

12102APAN SUB-ASSY, OIL, NO.2

main12102-21010i1NZ#,1NDTV,2NZFE..NCP5#,NLP51200206

13516BJET, OIL

main13516-21010i1NZ#,2NZFE..NCP5#200206-201312

sub13516-21011

main13516-21011i1NZ#,2NZFE..NCP5#201401-201409

main13516-21020i1NDTV..NLP51200206-200708

sub13516-21021

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21030i1NZ#,2NZFE..NCP5#200206-200709

sub15301-21040

main15301-21040i1NZ#,2NZFE..NCP5#200709-201203

sub15301-21060

main15301-21060i1NZ#,2NZFE..NCP5#201203

sub15301-21061

main15301-33030i1NDTV..NLP51200206-200708

9011906848

main90119-06848

9011908B47

main90119-08B47

9011908B48

main90119-08B48

9011908B49

main90119-08B49

9012606015

main90126-06015

9012608037

main90126-08037

9017906326

main90179-06326

91621G0612

main91621-G0612

9674119005

main96741-19005

32 parts on this diagram · 2 diagrams in section
