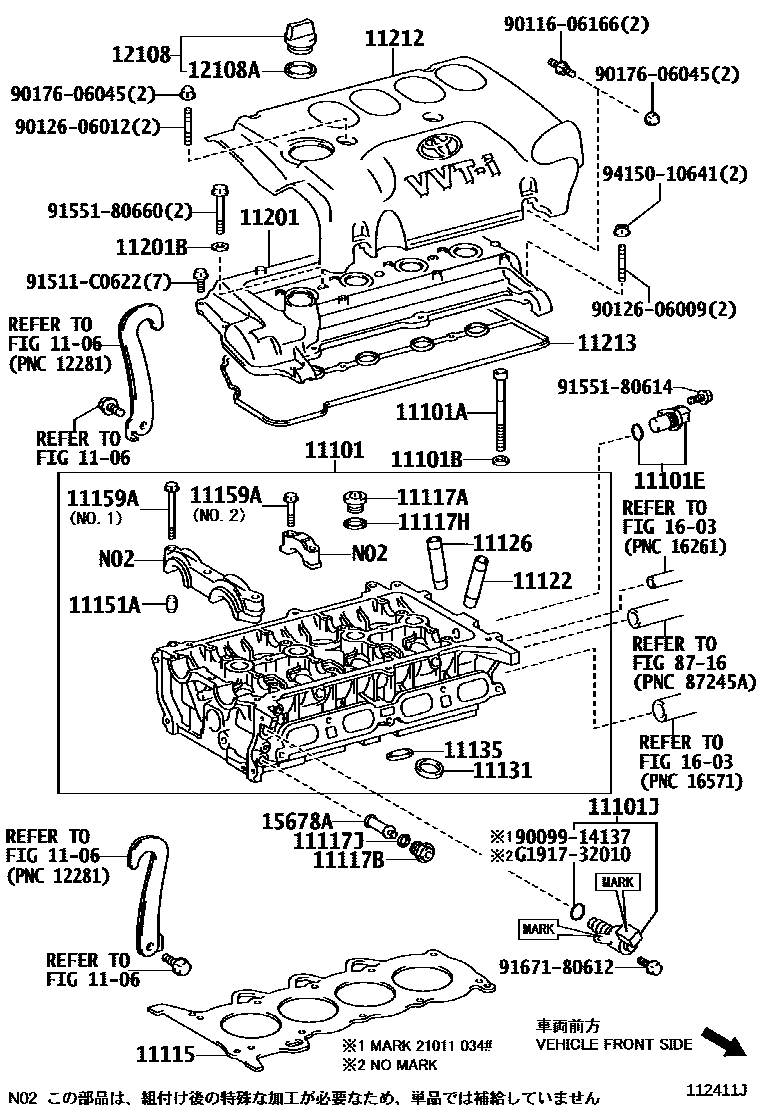

CYLINDER HEAD

0001 1 0002 1

1106

11101HEAD SUB-ASSY, CYLINDER

main11101-21031i1NZFE,2NZFE..NCP5#200206-200304

main11101-21033i1NZFE,2NZFE..NCP50,51,55,58,59200304-201110

main11101-21034i1NZFE,2NZFE..NCP50,51,55,58,59201110-201409

main11101-21071i1NZFNE..NCP52200304-201110

main11101-21072i1NZFNE..NCP52201110-201409

main11101-33030i1NDTV..NLP51200206-200708

sub11101-33031

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02126×10i1NZ#,2NZFE..NCP5#200206-200701

main90910-02148×10i1NDTV..NLP51200206-200708

sub90910-02182

main90910-02170×10i1NZ#,2NZFE..NCP5#200701

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024×10i1NZ#,2NZFE..NCP5#200206

main90201-13021×10i1NDTV..NLP51200206-200708

11101ESENSOR, CAM POSITION

main90919-05024i1NZ#,2NZFE..NCP5#200206

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21011i1NZ#,2NZFE..NCP5#200206-201409

11115GASKET, CYLINDER HEAD

main11115-21030i1NZFE,2NZFE..NCP5#200206-200302

main11115-21040i1NZ#,2NZFE..NCP5#200302-200308

main11115-21050i1NZ#,2NZFE..NCP5#200308-201110

main11115-21080i1NZ#,2NZFE..NCP5#201110-201204

main11115-21090i1NZ#,2NZFE..NCP5#201204-201409

sub11115-21091

main11115-33020-A0i1NDTV..NLP51200206-200301

main11115-33020-B0i1NDTV..NLP51200206-200301

main11115-33020-C0i1NDTV..NLP51200206-200301

main11115-33020-D0i1NDTV..NLP51200206-200301

main11115-33020-E0i1NDTV..NLP51200206-200301

main11115-33021-C0i1NDTV..NLP51200301-200506

main11115-33021-D0i1NDTV..NLP51200301-200506

main11115-33021-E0i1NDTV..NLP51200301-200506

main11115-33022-C0i1NDTV..NLP51200506-200708

main11115-33022-D0i1NDTV..NLP51200506-200708

main11115-33022-E0i1NDTV..NLP51200506-200708

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-14008×3i1NDTV..NLP51200206-200708

main90341-20002i1NZFE,2NZFE..NCP50,51,55,58,59200206

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZ#,2NZFE..NCP5#200206

11117HGASKET(FOR WATER HOLE)

main90430-14008×3i1NDTV..NLP51200206-200708

main90430-20004i1NZFE,2NZFE..NCP50,51,55,58,59200206

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZ#,2NZFE..NCP5#200206-201409

11122BUSH, INTAKE VALVE GUIDE

main11122-21010×8i1NZ#,2NZFE..NCP5#200206

main11122-30020×4i1NDTV..NLP51200206-200504

main11122-33030×4i1NDTV..NLP51200504-200708

main11123-21010×8i1NZ#,2NZFE..NCP5#200206

main11123-30020×4i1NDTV..NLP51200206-200504

main11123-33030×4i1NDTV..NLP51200504-200708

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010×8i1NZ#,2NZFE..NCP5#200206

main11122-30020×4i1NDTV..NLP51200206-200504

main11122-33030×4i1NDTV..NLP51200504-200708

main11123-21010×8i1NZ#,2NZFE..NCP5#200206

main11123-30020×4i1NDTV..NLP51200206-200504

main11123-33030×4i1NDTV..NLP51200504-200708

11131SEAT, INTAKE VALVE

main11131-21020×8i1NZFE,2NZFE..NCP50,51,55,58,59200206

sub11131-21021

main11131-21040×8i1NZFNE..NCP52200304

sub11131-21041

main11132-21020×8i1NZFE,2NZFE..NCP50,51,55,58,59200206

sub11132-21021

main11132-21040×8i1NZFNE..NCP52200304

11135SEAT, EXHAUST VALVE

main11135-21020×8i1NZFE,2NZFE..NCP5#200206-200208

sub11135-21041

main11135-21040×8i1NZFE,2NZFE..NCP50,51,55,58,59200208

sub11135-21041

main11135-21050×8i1NZFNE..NCP52200304-201012

main11135-21051×8i1NZFNE..NCP52201012

main11136-21020×8i1NZFE,2NZFE..NCP5#200206-200208

main11136-21040×8i1NZFE,2NZFE..NCP50,51,55,58,59200208

main11136-21050×8i1NZFNE..NCP52200304-201012

main11136-21051×8i1NZFNE..NCP52201012

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001×4i1NZFE,2NZFE..NCP50,51,55,58,59200206

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080×16i1NZ#,2NZFE..NCP5#200206

main90119-07008×4i1NDTV..NLP51200206-200708

main90119-07009×8i1NDTV..NLP51200206-200708

main90119-08A29×3i1NZ#,2NZFE..NCP5#200206

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21050i1NZFE,2NZFE..NCP50,51,55,58,59200206-201211

main11201-21051i1NZFE,2NZFE..NCP50,51,55,58,59201211

main11201-21061i1NZFNE..NCP52200304-200509

main11201-21062i1NZFNE..NCP52200509

main11201-33020i1NDTV..NLP51200206-200512

main11201-33021i1NDTV..NLP51200512-200708

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-05008×2i1NZ#,2NZFE..NCP5#201402-201409

main90210-06013×2i1NZ#,2NZFE..NCP5#200206-201401

11212COVER, CYLINDER HEAD, NO.2

main11212-21010i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

main11212-21011i1NZ#,2NZFE..NCP5#200410-200509

main11212-21012i1NZ#,2NZFE..NCP5#200510-201006

sub11212-21032

main11212-21050i1NZ#,2NZFE..NCP5#201006

main11212-33010i1NDTV..NLP51200206-200708

11213GASKET, CYLINDER HEAD COVER

main11213-21011i1NZ#,2NZFE..NCP5#200206-201409

main11213-33020i1NDTV..NLP51200206-200301

main11213-33021i1NDTV..NLP51200301-200708

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i1NZ#,2NZFE..NCP5#200206-201011

main12180-28010i1NDTV..NLP51200206-200708

main12180-38010i1NZ#,2NZFE..NCP5#201011

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i1NZ#,2NZFE..NCP5#201011-201409

main90430-37004i1NDTV..NLP51200206-200708

main90430-37140i1NZ#,2NZFE..NCP5#200206-201011

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1NZ#,2NZFE..NCP5#200206

1603

8716

9009914137

main90099-14137

9011606166

main90116-06166

9012606009

main90126-06009

9012606012

main90126-06012

9017606045

main90176-06045

91511C0622

main91511-C0622

9155180614

main91551-80614

9155180660

main91551-80660

9167180612

main91671-80612

9415010641

main94150-10641

G191732010

mainG1917-32010

37 parts on this diagram · 2 diagrams in section
