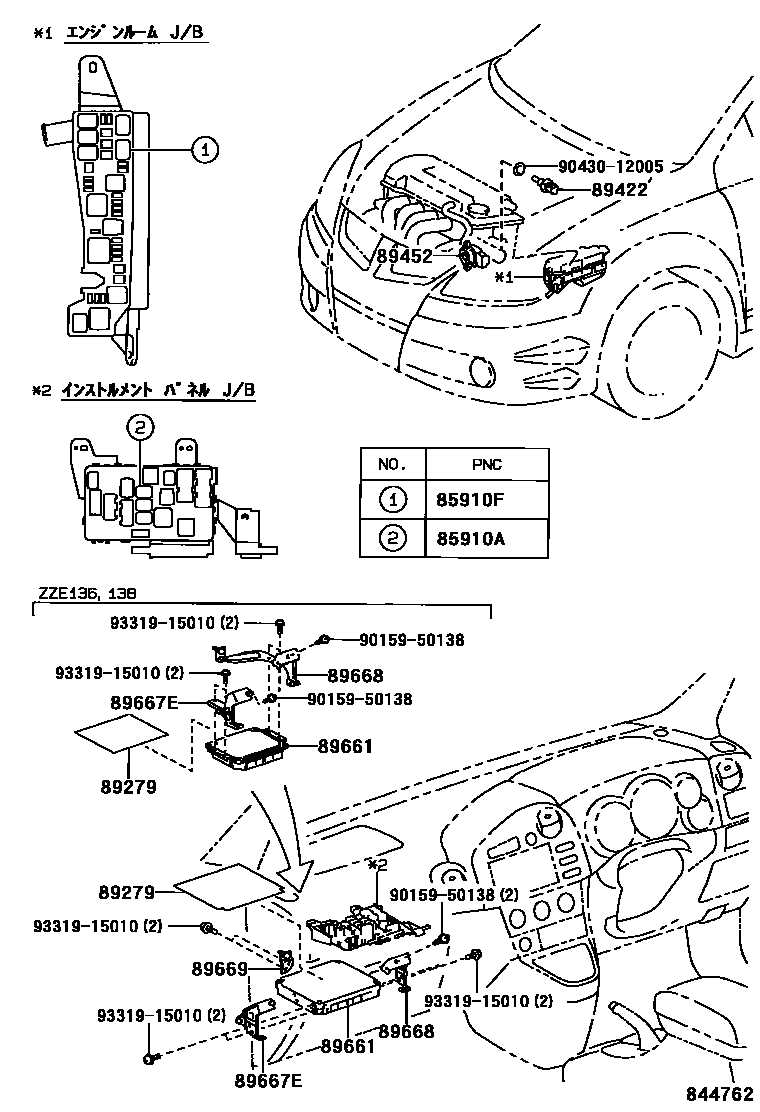

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87010iZZE13#200205

main90084-98031iZZE13#200205

85910FRELAY, COMPUTER (FOR EFI)

main90080-87010iZZE13#200205

main90084-98031iZZE13#200205

89279COVER, ENGINE CONTROL COMPUTER

main89279-01010iZZE137200205-200402

main89279-02060iZZE136,138200205-200402

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iZZE13#200205

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-02020iZZE136200205-200402

main89452-20130iZZE136,138200205-200402

main89452-35020iZZE137200205-200402

89661COMPUTER, ENGINE CONTROL

main89661-01070iZZE136200205-200402

main89661-01080iZZE138200205-200402

main89661-01090iZZE137..6F200205-200402

main89661-01100iZZE137..4FC200205-200402

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-01010iZZE137200205-200402

main89667-02060iZZE136,138200205-200402

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-01010iZZE137200205-200402

main89668-02060iZZE136,138200205-200402

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-01010iZZE137200205

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

12 parts on this diagram · 1 diagram in section
