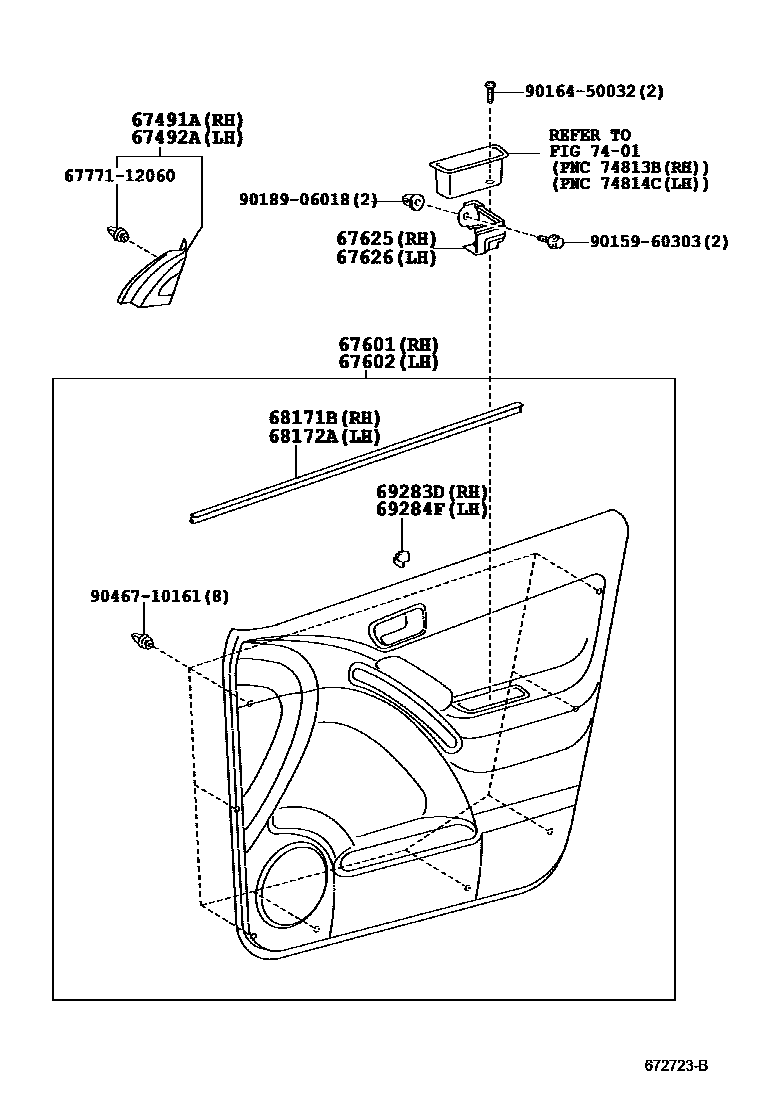

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-01060iZZE13#200205-200402

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-01060iZZE13#200205-200402

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-01230-B2iZZE13#200205-200305

STONE-LIGHT GRAY,TRIM13

sub67610-01370

main67610-01230-B3iZZE13#200205-200305

DARK GRAY,TRIM14

sub67610-01370

main67610-01260-B0iZZE13#200305-200402

STONE LIGHT GRAY,TRIM13

main67610-01260-B1iZZE13#200305-200402

DARK GRAY,TRIM14

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-01340-B2iZZE13#200205-200305

STONE-LIGHT GRAY,TRIM13

sub67620-01500

main67620-01340-B3iZZE13#200205-200305

DARK GRAY,TRIM14

sub67620-01500

main67620-01370-B0iZZE13#200305-200402

STONE LIGHT GRAY,TRIM13

main67620-01370-B1iZZE13#200305-200402

DARK GRAY,TRIM14

67625BRACKET, FRONT DOOR TRIM, RH

main67625-01010iZZE13#200205-200402

67626BRACKET, FRONT DOOR TRIM, LH

main67625-01010iZZE13#200205-200402

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-01040×3iZZE13#200205-200402

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-01040×3iZZE13#200205-200402

69283DPLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-02010-B1iZZE13#200205-200402

DK.GRAY,TRIM13,14

69284FPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-02010-B1iZZE13#200205-200402

DK.GRAY,TRIM13,14

7401

6777112060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12060

9015960303

main90159-60303

9016450032

main90164-50032

9018906018

main90189-06018

9046710161

main90467-10161

16 parts on this diagram · 2 diagrams in section
