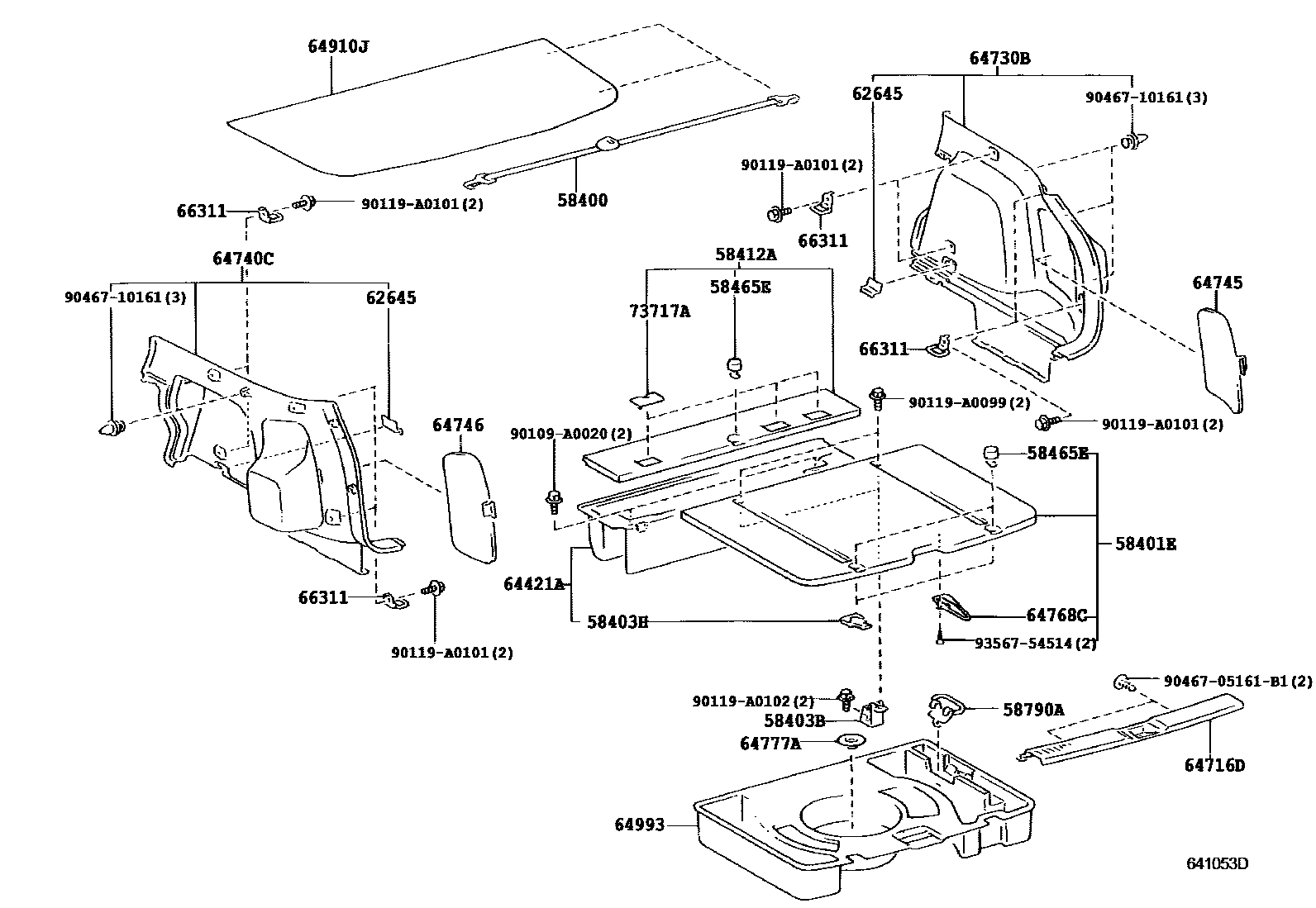

DECK BOARD & DECK TRIM COVER

58400BELT ASSY, LUGGAGE HOLD, NO.1

main58400-01010×2iZZE13#200205

58401EBOARD SUB-ASSY, DECK

main58410-01010-B0iZZE13#200201-200405

STONE,TRIM13,14

58403BHINGE, DECK BOARD

main58404-12020×2iZZE13#200205

58403HSPACER, DECK BOARD LOCK

main58491-12020×3iZZE13#200205

sub58491-12021

58412ABOARD, DECK, NO.2

main58412-01010-B0iZZE13#200201-200405

STONE,TRIM13,14

58465EHANDLE, DECK BOARD

main58465-12010-B0×3iZZE13#200201-200405

STONE,TRIM13,14

58790ACARRIER ASSY, JACK

main58790-52020iZZE13#200205

62645COVER, SHOCK ABSORBER HEAD

main62645-01010-B0×2iZZE13#200205-200402

STONE,TRIM13,14

64421ATRAY, LUGGAGE COMPARTMENT

main64421-01010iZZE13#200205-200210

main64421-01020iZZE13#200210

64716DCOVER, DECK TRIM, REAR

main64716-01050-B0iZZE13#200201-200405

STONE,TRIM13,14

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-01020-B0iZZE13#200205-200305

STONE,TRIM13,14

main64730-01021-B0iZZE13#200305-200310

STONE,TRIM13,14

main64730-01022-B0iZZE13#200310-200402

STONE,TRIM13,14

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-01020-B0iZZE13#200205-200305

STONE,TRIM13,14

main64740-01021-B0iZZE13#200305-200310

STONE,TRIM13,14

main64740-01022-B0iZZE13#200310-200402

STONE,TRIM13,14

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-01050-B0iZZE13#200201-200405

STONE,TRIM13,14

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-01040-B0iZZE13#200201-200405

STONE,TRIM13,14

64768CSTOPPER, LUGGAGE ROOM BOX LID

main58492-01010iZZE13#200205

64777ACLAMP, SPARE WHEEL COVER

main64777-01020iZZE13#200312

main64777-33010iZZE13#200205-200312

64910JCOVER ASSY, TONNEAU

main64910-01010-B1iZZE13#200201-200405

STONE,TRIM13,14

64993BOX, DECK FLOOR, REAR

main64993-01010iZZE13#200205

66311HOOK, ROPE

main66310-12010×8iZZE13#200205

73717ACOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-01010-B0×3iZZE13#200201-200405

STONE,TRIM13,14

90109A0020

main90109-A0020

90119A0099

main90119-A0099

90119A0101

main90119-A0101

90119A0102

main90119-A0102

9046705161B1

main90467-05161B1

9046710161

main90467-10161

9356754514

main93567-54514

27 parts on this diagram · 1 diagram in section
