FLOOR INSULATOR

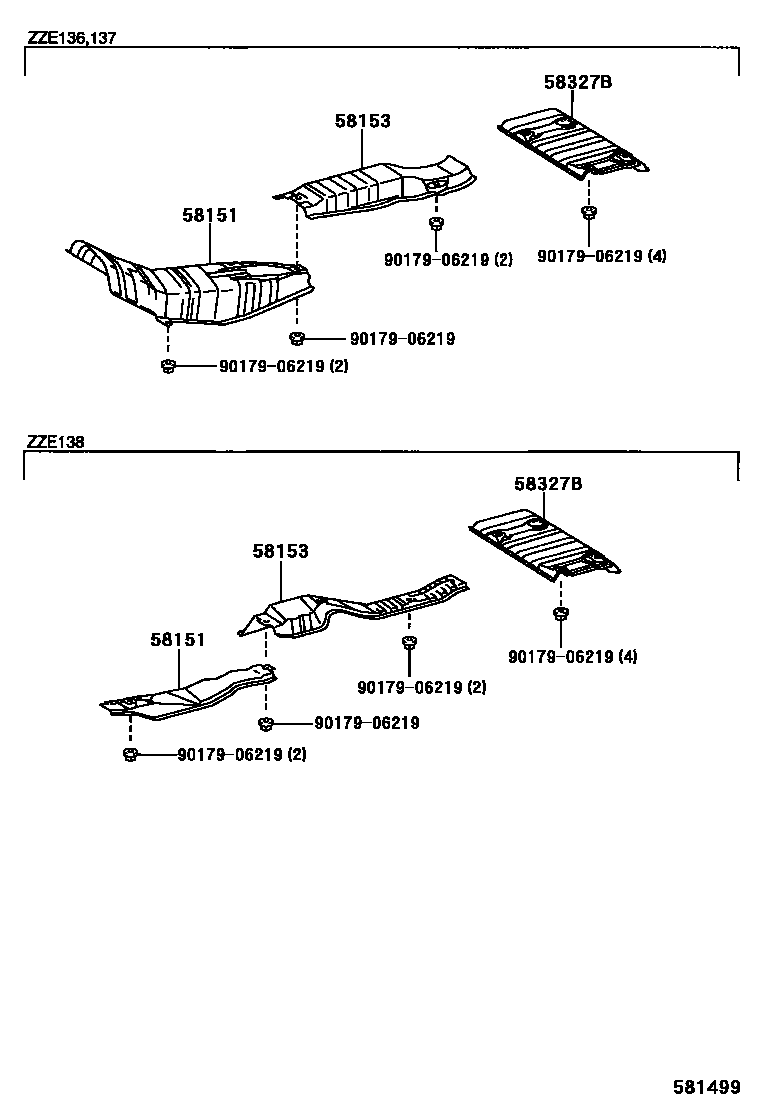

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12180i200205-200301

main58151-12190i200205

main58151-12210i200301-200308

main58151-12220i200308

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12160i200205

main58153-20141i200205

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-01030i200205

9017906219

main90179-06219

4 parts on this diagram · 1 diagram in section
