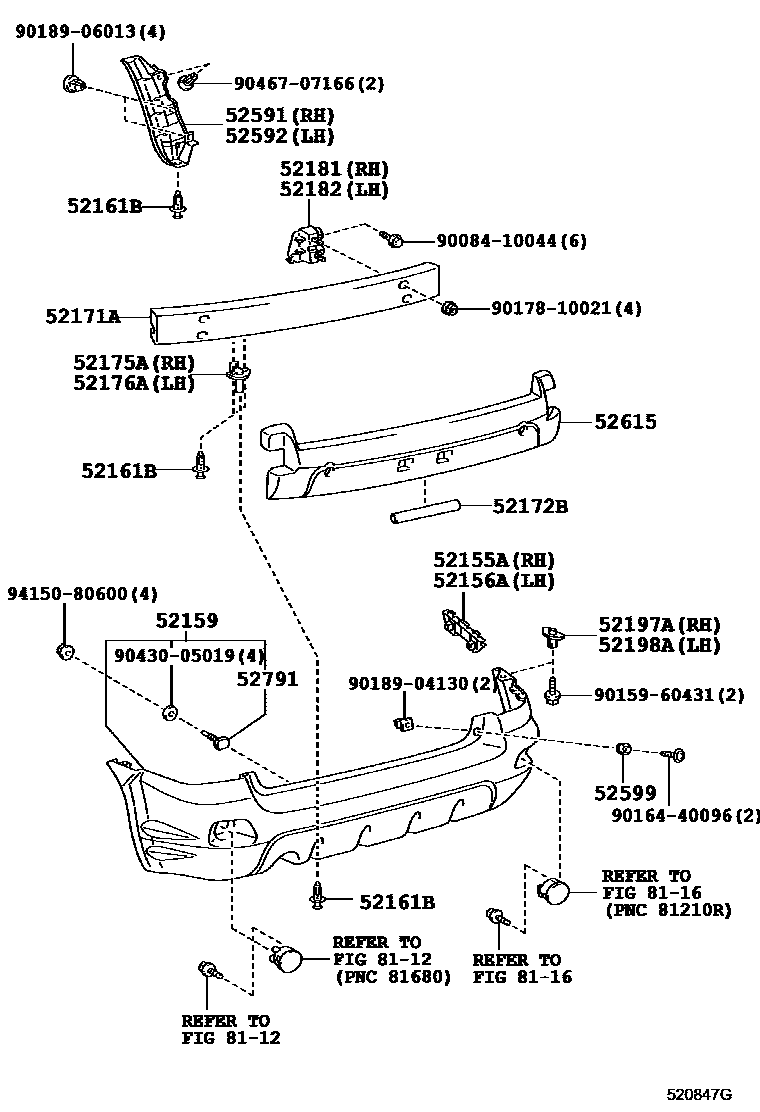

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
SUPER WHITE 2,040
DK.GRAY M.M.,KJ5
CHARCOAL GRAY ME.,KH9 ,KJ1 ,KJ3
CHARCOAL GRAY ME.,1E6
SILVER ME.,1C8
BLACK MC.,209
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
52161BPIECE, REAR BUMPER
52171AREINFORCEMENT, REAR BUMPER, NO.1
52172BREINFORCEMENT, REAR BUMPER, NO.2
52175ABRACKET, REAR BUMPER ARM MOUNTING, RH
52176ABRACKET, REAR BUMPER ARM MOUNTING, LH
52181ARM, REAR BUMPER, RH
52182ARM, REAR BUMPER, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
52615ABSORBER, REAR BUMPER ENERGY
52791BOLT, BUMPER MOULDING SET, NO.1
8112
8116
9008410044
main90084-10044
9015960431
main90159-60431
9016440096
main90164-40096
9017810021
main90178-10021
9018904130
main90189-04130
9018906013
main90189-06013
9043005019
main90430-05019
9046707166
main90467-07166
9415080600
main94150-80600
28 parts on this diagram · 1 diagram in section
