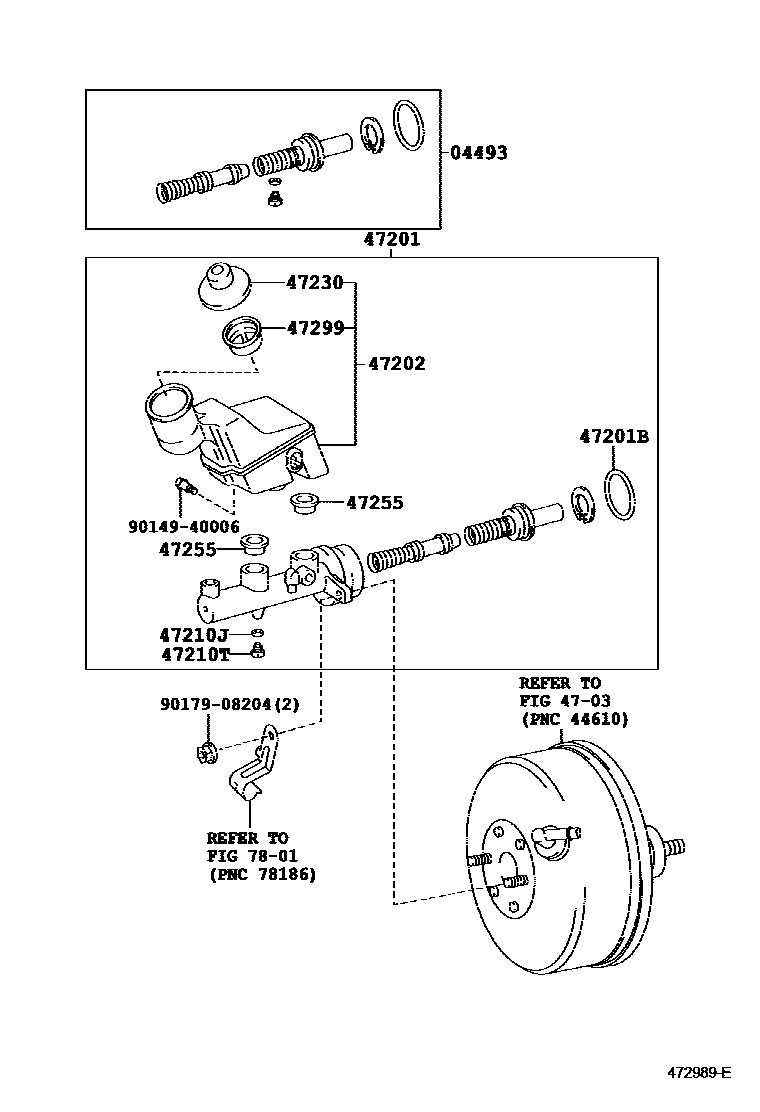

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-01020iZZE13#200205

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-01040iZZE13#..4FC200205

main47201-01050iZZE137..6F200205

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iZZE13#200205

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-01030iZZE13#..4FC200205

sub47220-12120

main47220-01040iZZE137..6F200205

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iZZE13#200205

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iZZE13#200205

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iZZE13#200205-200402

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-03010×2iZZE13#200205

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iZZE13#200205

7801

9014940006

main90149-40006

9017908204

main90179-08204

13 parts on this diagram · 1 diagram in section
