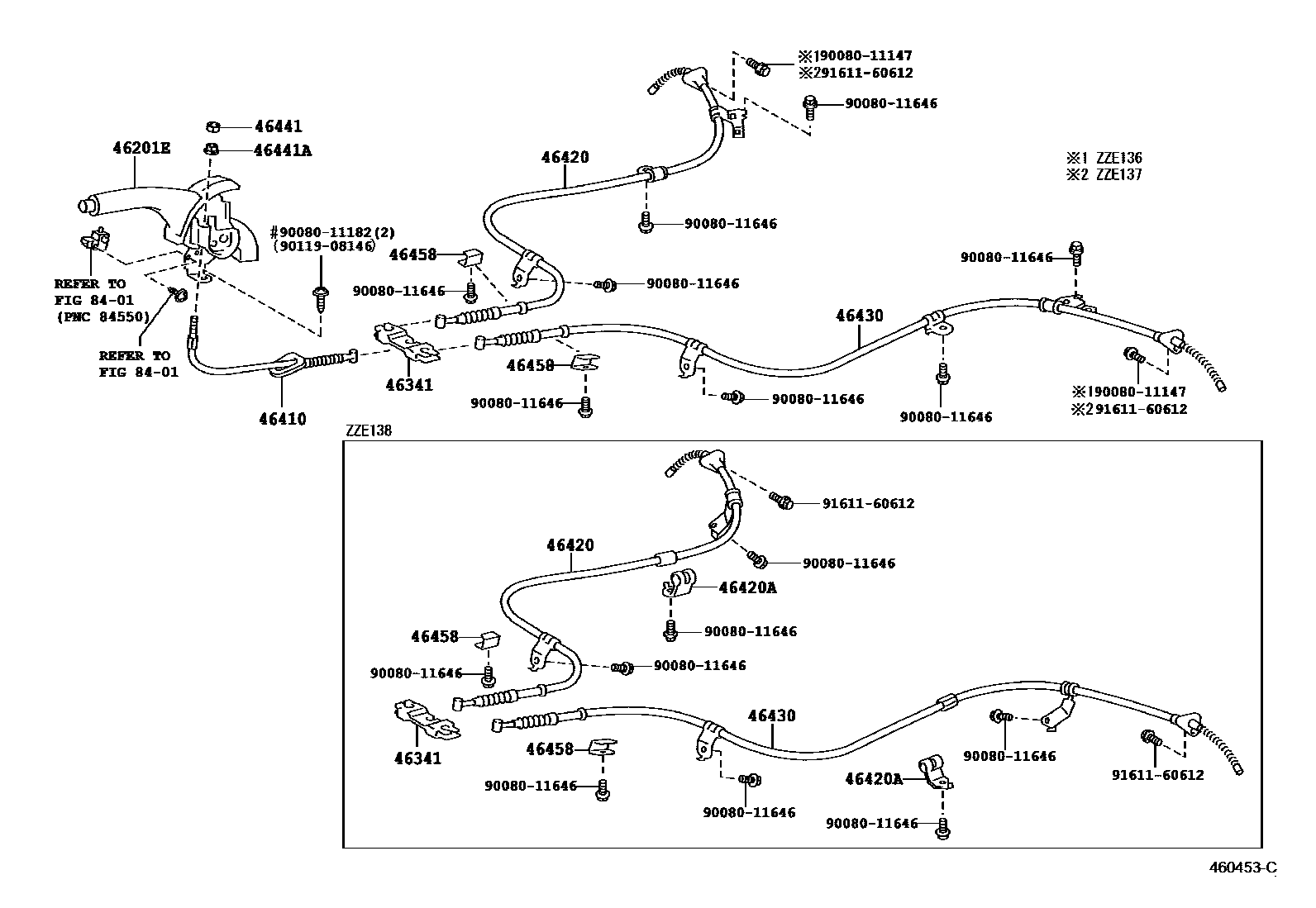

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12310-B0iZZE13#200205-200402

DK.GRAY,TRIM13,14

46341EQUALIZER, PARKING BRAKE

main46341-20070iZZE13#¥360200205

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-42040iZZE13#¥2,270200205

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-01030iZZE136¥5,100200205

main46420-12550iZZE137¥5,100200205

main46420-12560iZZE138¥5,100200205

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01C31iZZE138¥340200205

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-01030iZZE136¥4,930200205

main46430-12450iZZE137¥4,930200205

main46430-12460iZZE138¥3,100200205

46441NUT, WIRE ADJUSTING, NO.1

main90179-06058iZZE13#¥130200205

sub90179-06299¥70

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iZZE13#¥160200205

46458RETAINER, CABLE

main46458-01020iZZE13#¥260200205

8401

9008011147

main90080-11147¥110

9008011182

main90080-11182¥80

9008011646

main90080-11646¥60

9011908146

main90119-08146¥200

9161160612

main91611-60612¥130

15 parts on this diagram · 2 diagrams in section
