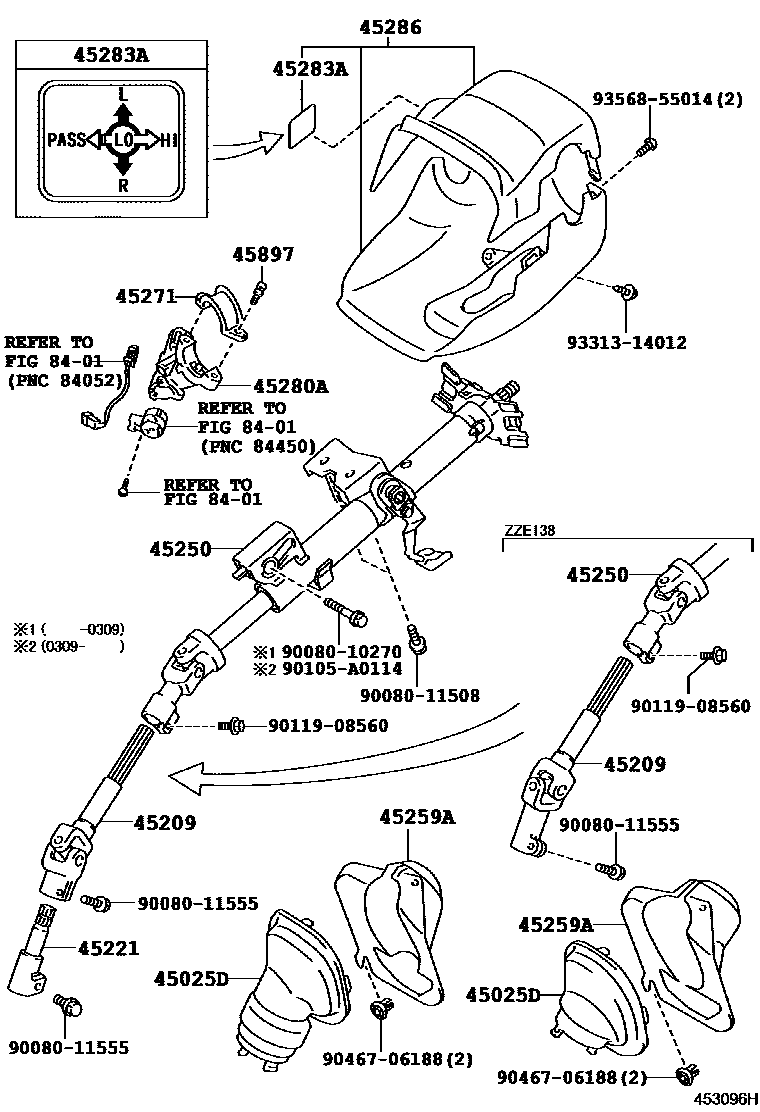

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-01030iZZE136,137200205-200402

main45025-01040iZZE138200205-200402

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-02070iZZE136,137200205-200402

main45209-02080iZZE138200205-200402

45221SHAFT, STEERING INTERMEDIATE

main45221-02030iZZE136,137200205-200402

45250COLUMN ASSY, STEERING

main45250-02460iZZE13#200205-200402

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12010iZZE136,137200205-200402

main45259-12020iZZE138200205-200402

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iZZE13#200205-200402

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-02070iZZE137..6F200205-200402

main45280-02080iZZE13#..4FC200205-200402

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iZZE13#200205-200402

45286COVER, STEERING COLUMN

main45286-01900-B2iZZE13#200205-200402

DK.GRAY,TRIM13,14

45897BOLT, STEERING LOCK SET

main45897-12020×2iZZE13#200205-200402

8401

9008010270

main90080-10270

9008011508

main90080-11508

9008011555

main90080-11555

90105A0114

main90105-A0114

9011908560

main90119-08560

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

19 parts on this diagram · 1 diagram in section
