MIRROR

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-28140iGZEA14..02S¥5,100202212-202409

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-12G20iGZEA14..02S¥27,400202212-202409

87915COVER, OUTER MIRROR, RH

main87915-52251-C3iGZEA14..02S202212-202304

BLACK,040 ,089 ,1L5 ,1M1 ,219 ,3U5

main87915-52251-C3iGZEA14..05S202212-202409

BLACK,040 ,089 ,1L5 ,219 ,3U5 ,8W9

8791BACOVER, OUTER MIRROR, RH NO.3

main8791B-12G30iGZEA14..02S¥1,860202212-202409

87931OUTER MIRROR, RH

main87902-12030iGZEA14..02S¥4,090202212-202409

87939COVER, OUTER MIRROR HOLE, RH

main87939-12G20iGZEA14..02S¥1,400202212-202409

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-12G40iGZEA14..02S¥27,400202212-202409

87945COVER, OUTER MIRROR, LH

main87945-52251-C3iGZEA14..02S202212-202304

BLACK,040 ,089 ,1L5 ,1M1 ,219 ,3U5

main87945-52251-C3iGZEA14..05S202212-202409

BLACK,040 ,089 ,1L5 ,219 ,3U5 ,8W9

87946RETRACTOR, OUTER MIRROR, RH

main87946-12G20iGZEA14..02S¥13,000202212-202409

87948COVER, OUTER MIRROR HOLE, LH

main87948-12G40iGZEA14..02S¥1,400202212-202409

8794BACOVER, OUTER MIRROR, LH NO.3

main8794B-12G50iGZEA14..02S¥1,860202212-202409

87961MIRROR OUTER, LH

main87907-33170iGZEA14..02S¥4,090202212-202409

87966RETRACTOR, OUTER MIRROR, LH

main87966-12G40iGZEA14..02S¥13,000202212-202409

9017906146

main90179-06146¥100

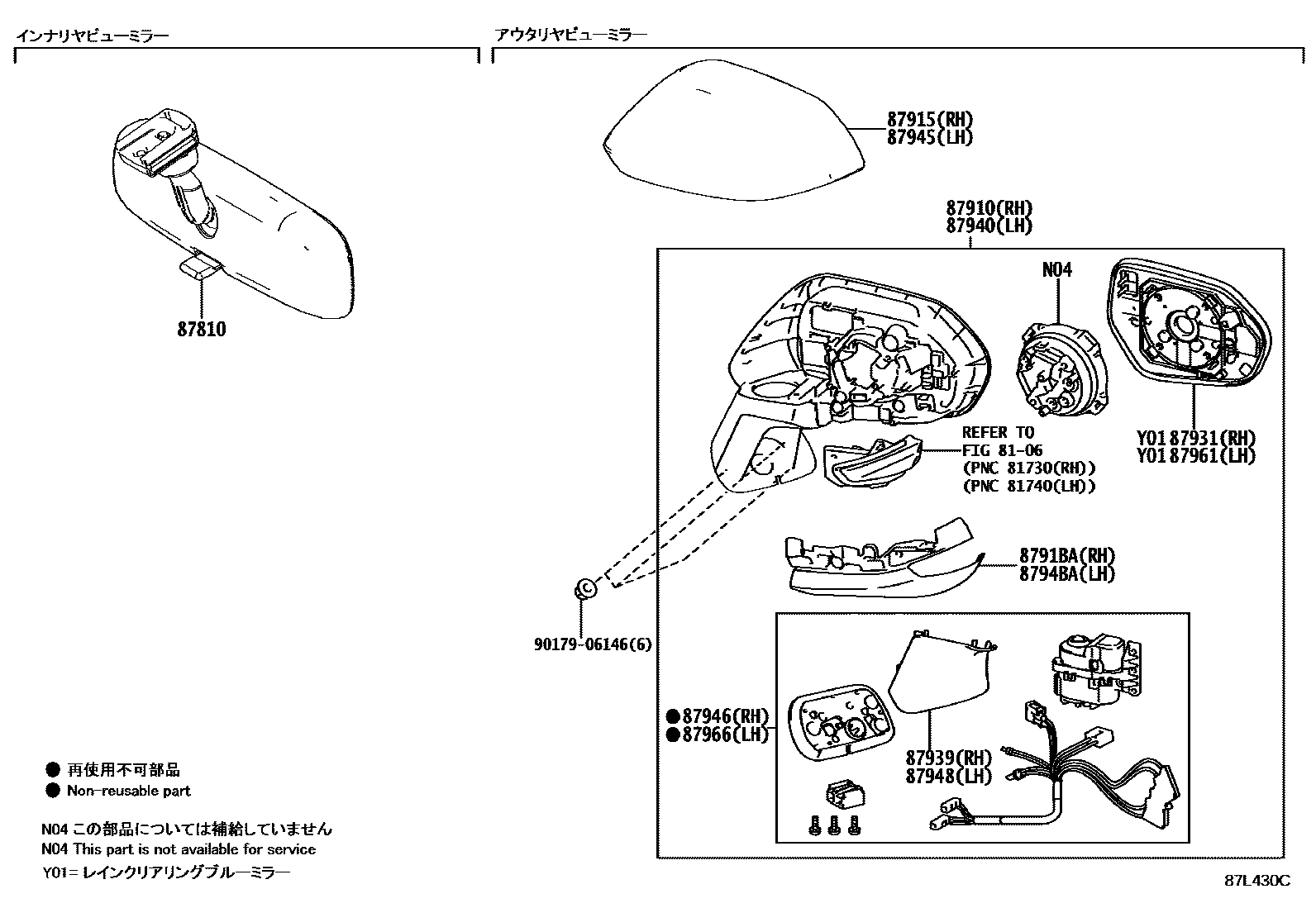

15 parts on this diagram · 1 diagram in section
