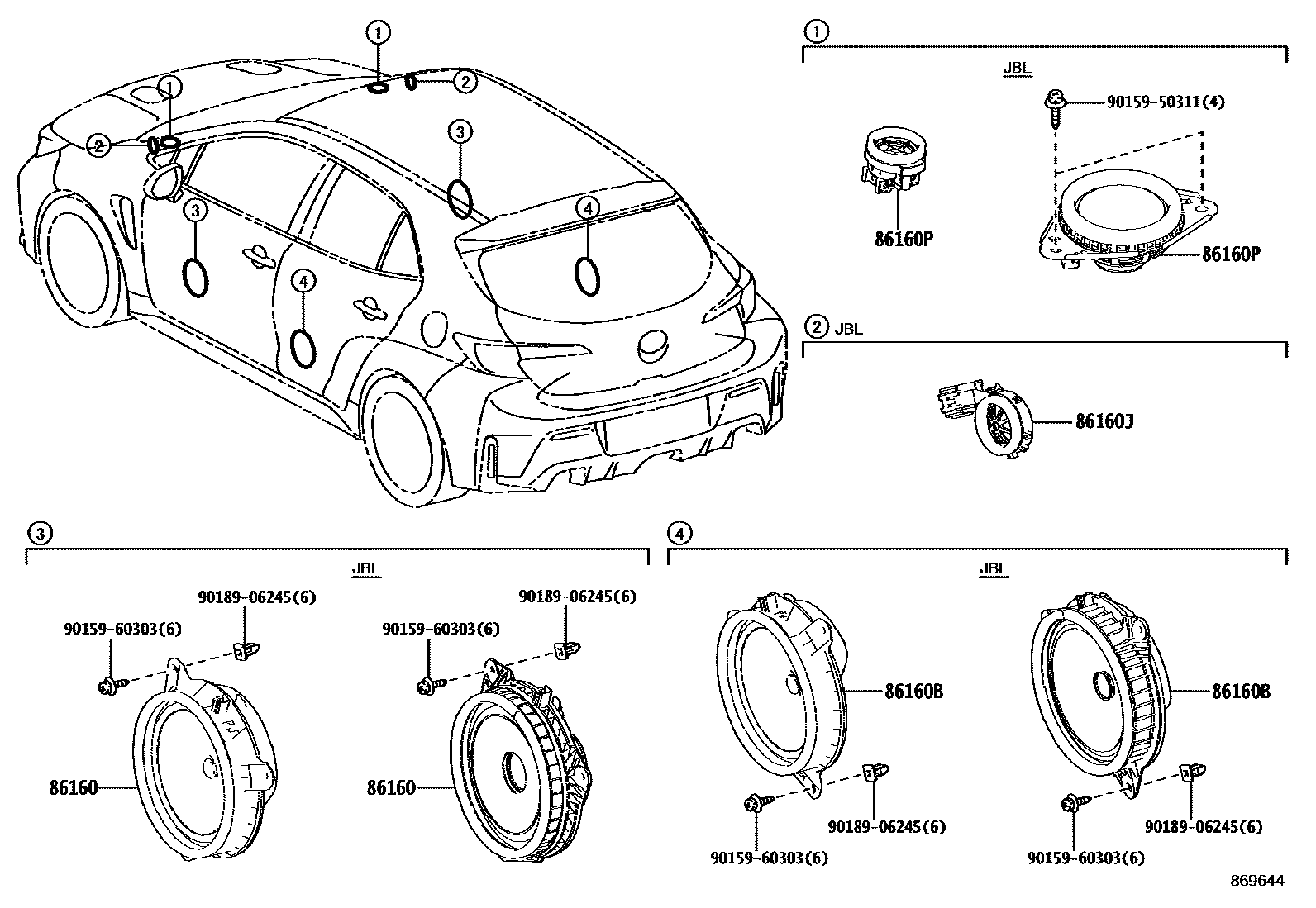

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-12A00×2supersedes 86160-1A210iGZEA14..05S202212-202409

86160BSPEAKER ASSY, REAR

main86160-42170×2supersedes 86160-1A210iGZEA14..02S202212-202304

86160JSPEAKER ASSY, FRONT NO.3

main86150-12240supersedes 86150-12280iGZEA14..02S202212-202304

main86150-12250supersedes 86150-12280iGZEA14..02S202212-202304

86160PSPEAKER ASSY, FRONT NO.2

main86150-12230×2supersedes 86160-52340iGZEA14..02S202212-202304

9015950311

main90159-50311

9015960303

main90159-60303

9018906245

main90189-06245

7 parts on this diagram · 1 diagram in section
