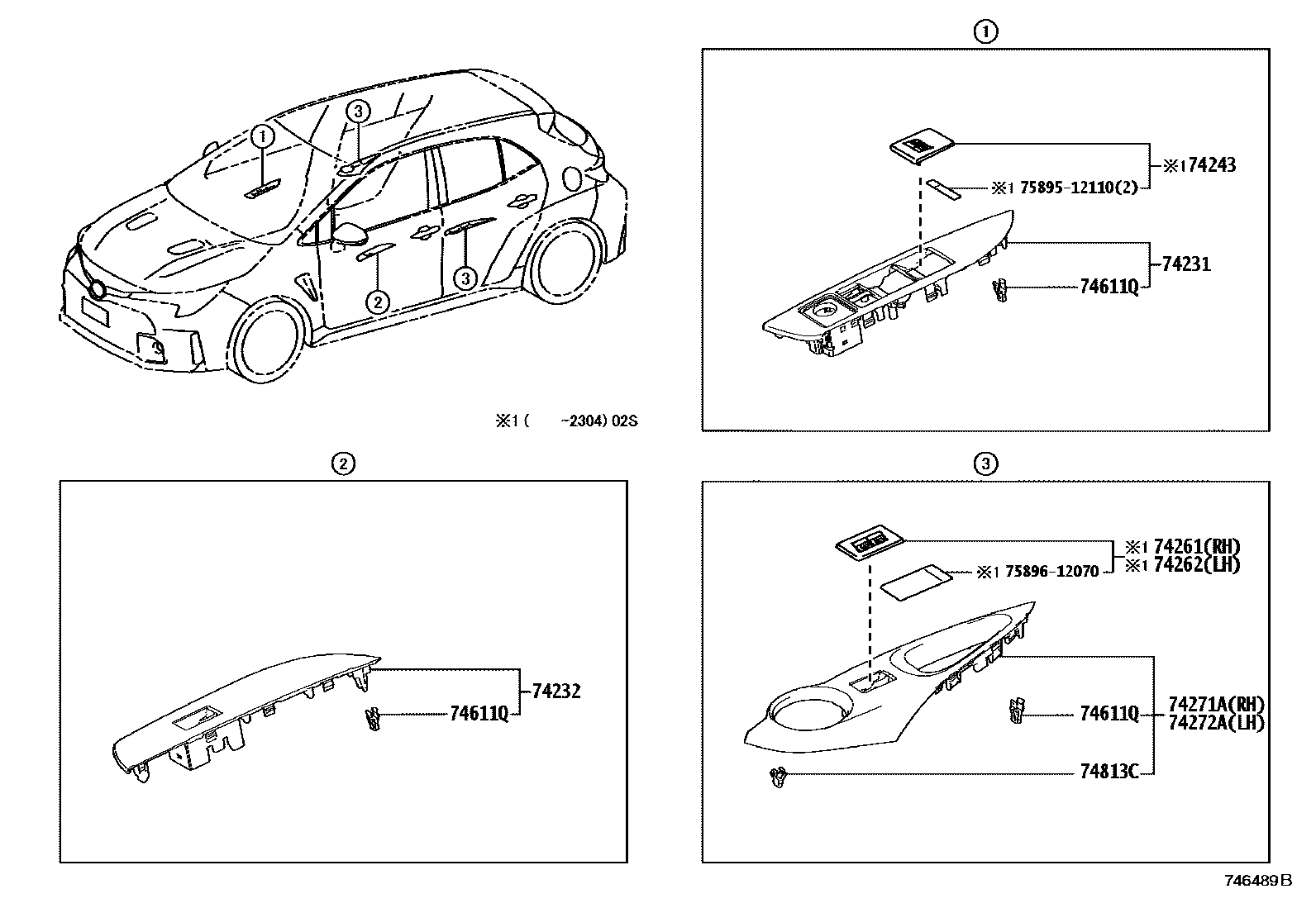

ARMREST & VISOR

0001 1������ 0002 1����� & ����������

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12D70iGZEA14..05S202212-202409

main74231-12E80iGZEA14..02S202212-202304

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12B80iGZEA14..05S202212-202409

main74232-12C40iGZEA14..02S202212-202304

74243COVER, FRONT DOOR ARMREST BASE, LOWER RH

main74243-12020iGZEA14..02S202212-202304

74261COVER, REAR DOOR ARMREST, RH

main74261-12040iGZEA14..02S202212-202304

74262COVER, REAR DOOR ARMREST, LH

main74261-12040iGZEA14..02S202212-202304

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12550iGZEA14..02S202212-202304

main74271-12560iGZEA14..05S202212-202409

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12490iGZEA14..02S202212-202304

main74272-12530iGZEA14..05S202212-202409

74611QCLIP

main90467-10203iGZEA14..02S202212-202409

74813CCLIP

main90467-12080iGZEA14..02S202212-202409

7589512110RETAINER, LUGGAGE DOOR MOULDING, NO.3

main75895-12110

7589612070JOINT, QUARTER PANEL MOULDING, NO.1 LH

main75896-12070

11 parts on this diagram · 2 diagrams in section
