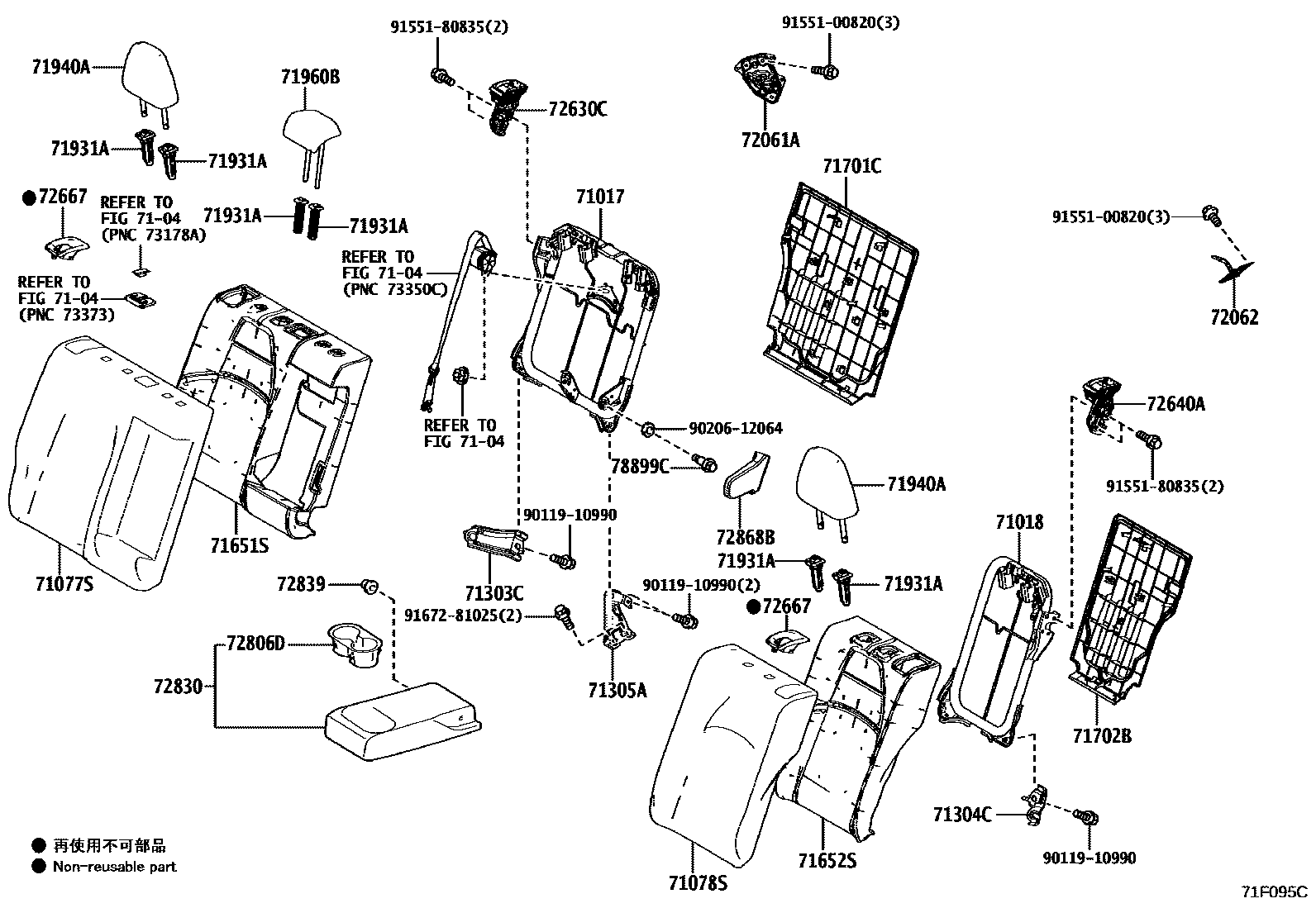

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
BLACK/GRAY,TRIM2#
BLACK/RED,TRIM3#
BLACK/BLUE NO.121,TRIM21
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
BLACK/GRAY,TRIM2#
BLACK/RED,TRIM3#
BLACK/BLUE NO.121,TRIM21
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
71702BBOARD SUB-ASSY, REAR SEATBACK, LH
71931ASUPPORT, REAR SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
BLACK/GR RED GOSEN Y55,TRIM3#
BLACK/GRAY NO.205,TRIM20
BLACK/BLUE NO.121,TRIM21
71960BHEADREST ASSY, REAR SEAT, CENTER
BLACK/RED GOSEN Y55,TRIM3#
BLACK/GRAY NO.205,TRIM2#
BLACK/BLUE NO.121,TRIM21
72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH
72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH
72630CLOCK ASSY, REAR SEATBACK, RH
BLACK,TRIM2#,3#
72640ALOCK ASSY, REAR SEATBACK, LH
BLACK,TRIM2#,3#
72667BEZEL, REAR SEATBACK LOCK, UPPER
BLACK,TRIM2#,3#
72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
BLACK,TRIM2#,3#
72830ARMREST ASSY, REAR SEAT, CENTER
BLACK,TRIM2#,3#
72839SHIM, REAR SEAT ARMREST HINGE
72868BCOVER, CENTER ARMREST HINGE
BLACK,TRIM2#,3#
78899CBOLT, REAR SUB SEAT
9011910990
main90119-10990
9020612064
main90206-12064
9155100820
main91551-00820
9155180835
main91551-80835
9167281025
main91672-81025
30 parts on this diagram · 2 diagrams in section
