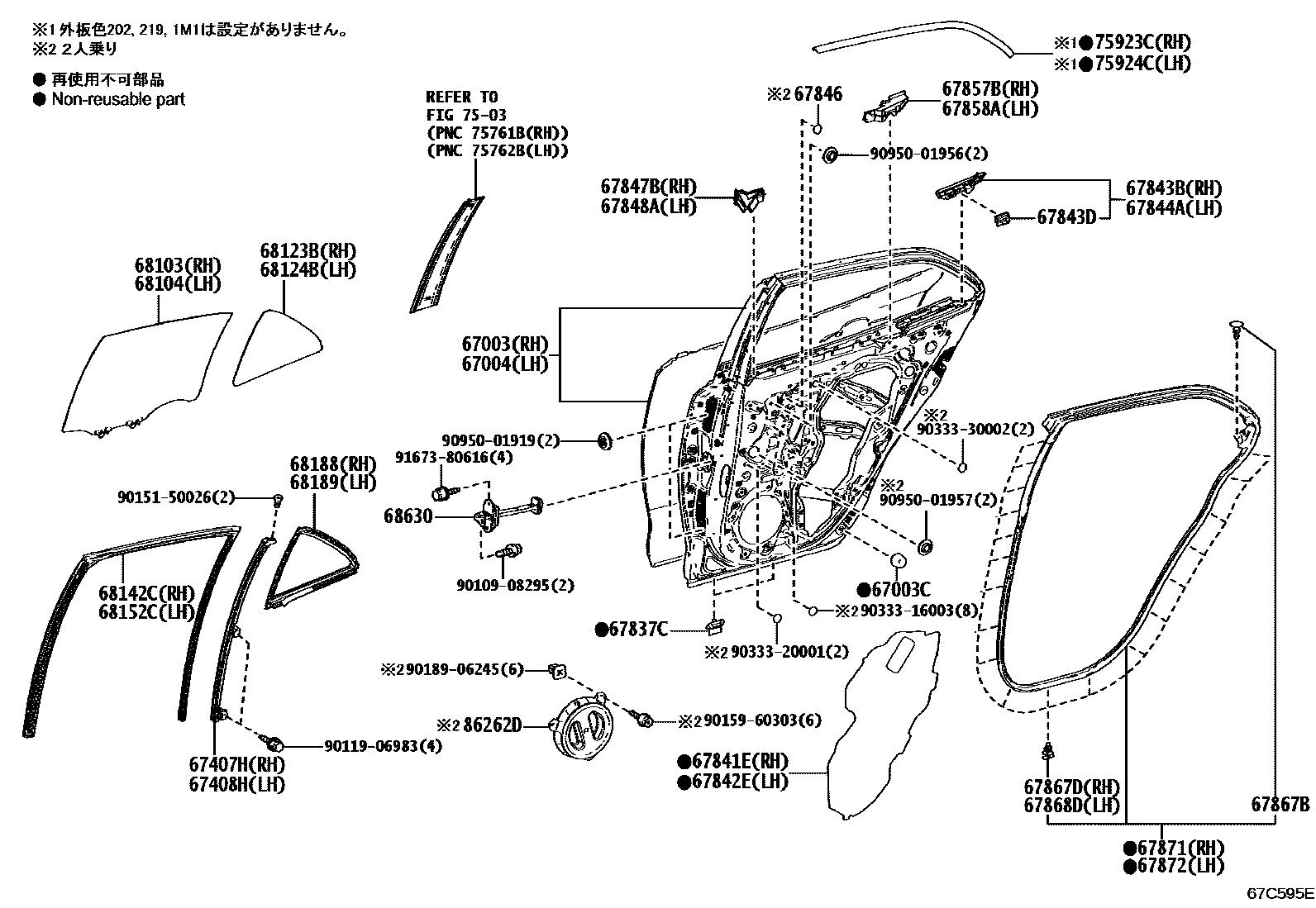

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH
67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH
67843DCLIP, REAR DOOR SERVICE HOLE
67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH
67846SEAL, REAR DOOR SERVICE HOLE
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67857BPROTECTOR, REAR DOOR PANEL, RH
67858APROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630CHECK ASSY, REAR DOOR
7503
75923CTAPE, BLACK OUT, NO.2 RH
75924CTAPE, BLACK OUT, NO.2 LH
86262DCOVER, REAR DOOR SPEAKER
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9015960303
main90159-60303
9018906245
main90189-06245
9033316003
main90333-16003
9033320001
main90333-20001
9033330002
main90333-30002
9095001919
main90950-01919
9095001956
main90950-01956
9095001957
main90950-01957
9167380616
main91673-80616
46 parts on this diagram · 2 diagrams in section
