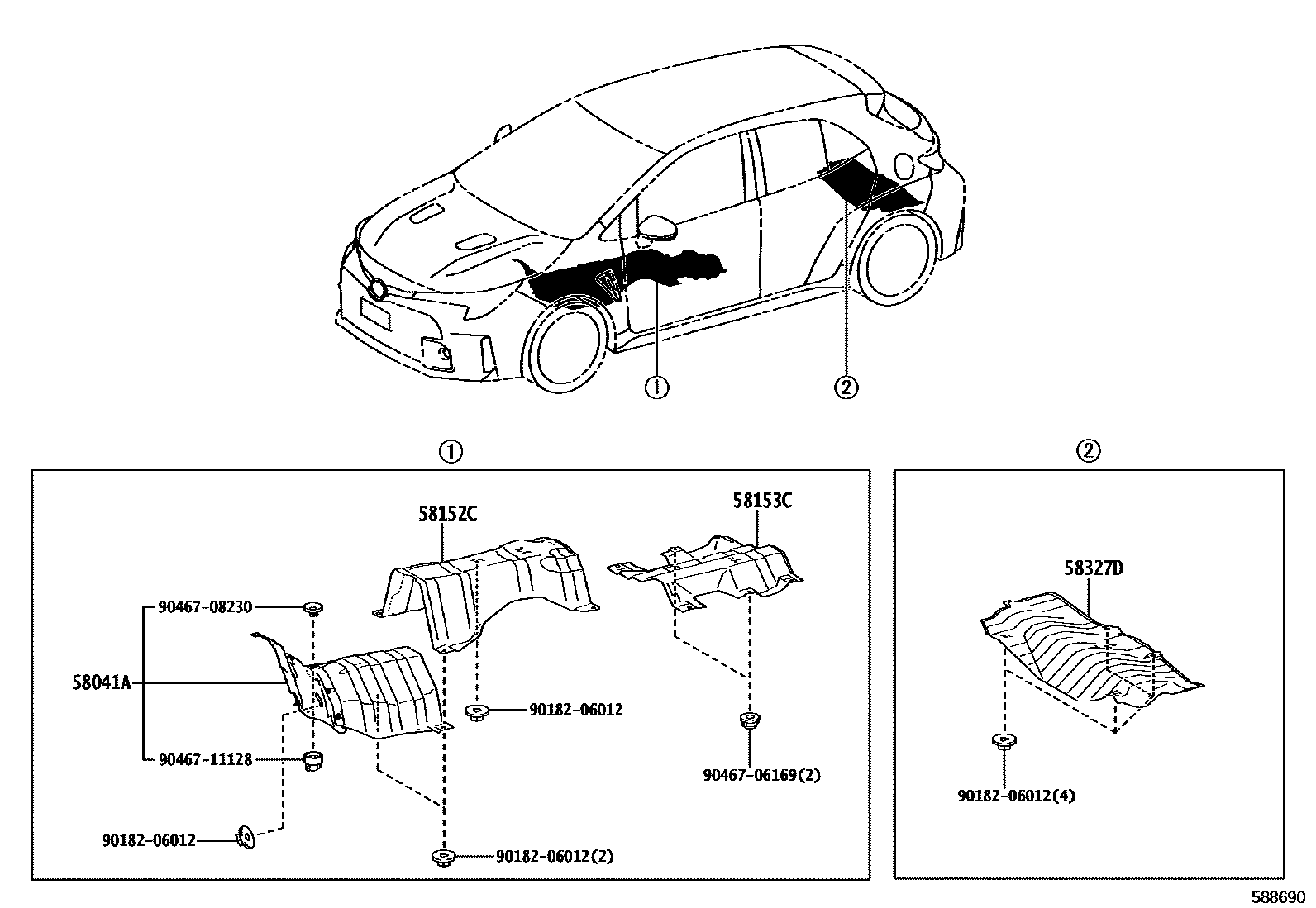

FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-12160iGZEA14..02S202212-202409

58152CINSULATOR, FLOOR HEAT, NO.2

main58152-12120iGZEA14..02S202212-202409

58153CINSULATOR, FLOOR HEAT, NO.3

main58153-10040iGZEA14..02S202212-202409

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-12290iGZEA14..02S202212-202409

9018206012

main90182-06012

9046706169

main90467-06169

9046708230

main90467-08230

9046711128

main90467-11128

8 parts on this diagram · 1 diagram in section
