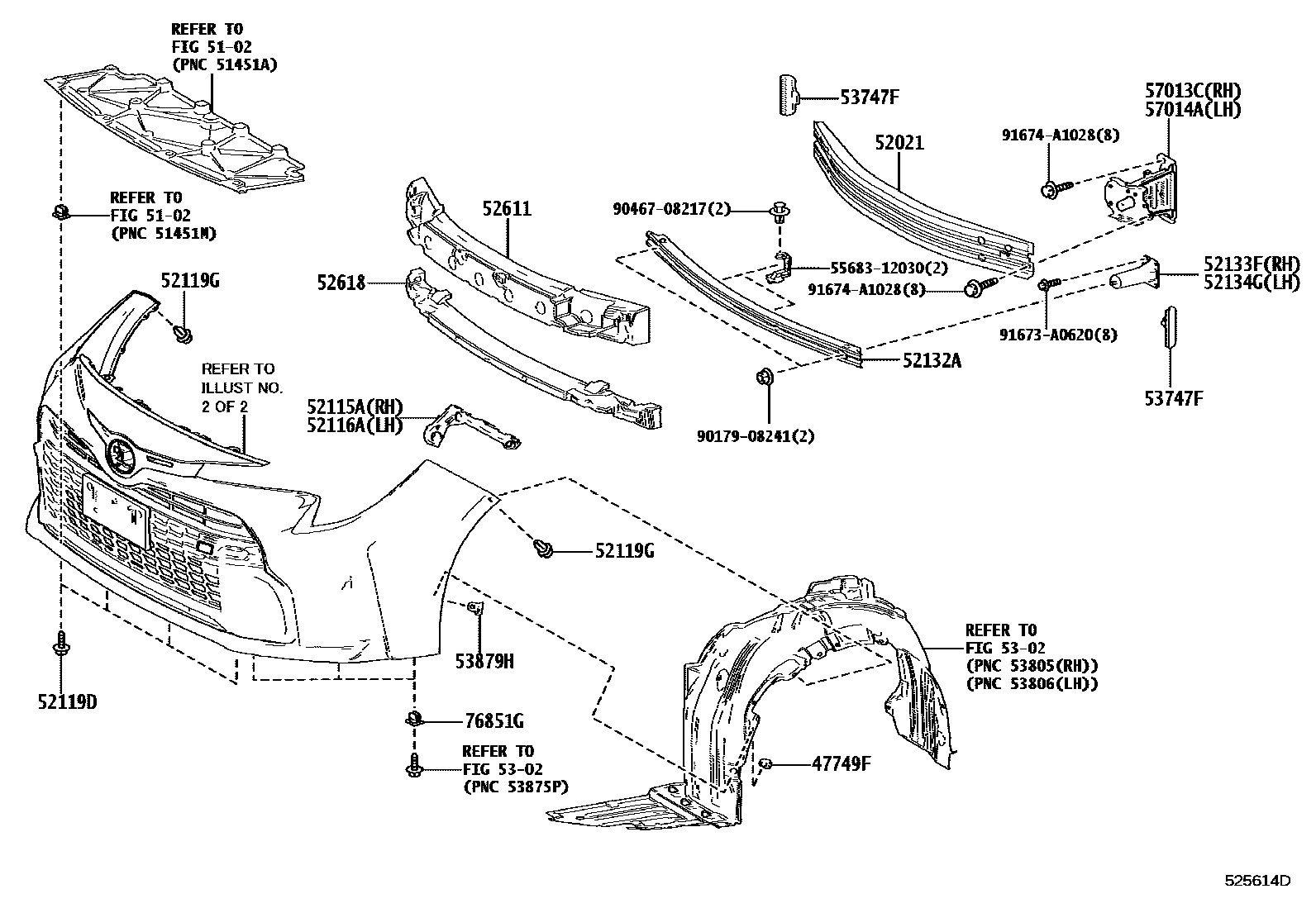

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
5102
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119DSCREW, NO.1
52119GCLIP, NO.1
52132AREINFORCEMENT, FRONT BUMPER, NO.2
52133FBRACKET, FRONT BUMPER, RH
52134GBRACKET, FRONT BUMPER, LH
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
5302
53747FPLATE, AIR SEALED
53879HRETAINER, FRONT FENDER LINER
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
76851GGROMMET, SCREW, NO.1
5568312030SUPPORT, INSTRUMENT REGISTER, NO.3
main55683-12030
9017908241
main90179-08241
9046708217
main90467-08217
91673A0620
main91673-A0620
91674A1028
main91674-A1028
23 parts on this diagram · 4 diagrams in section
