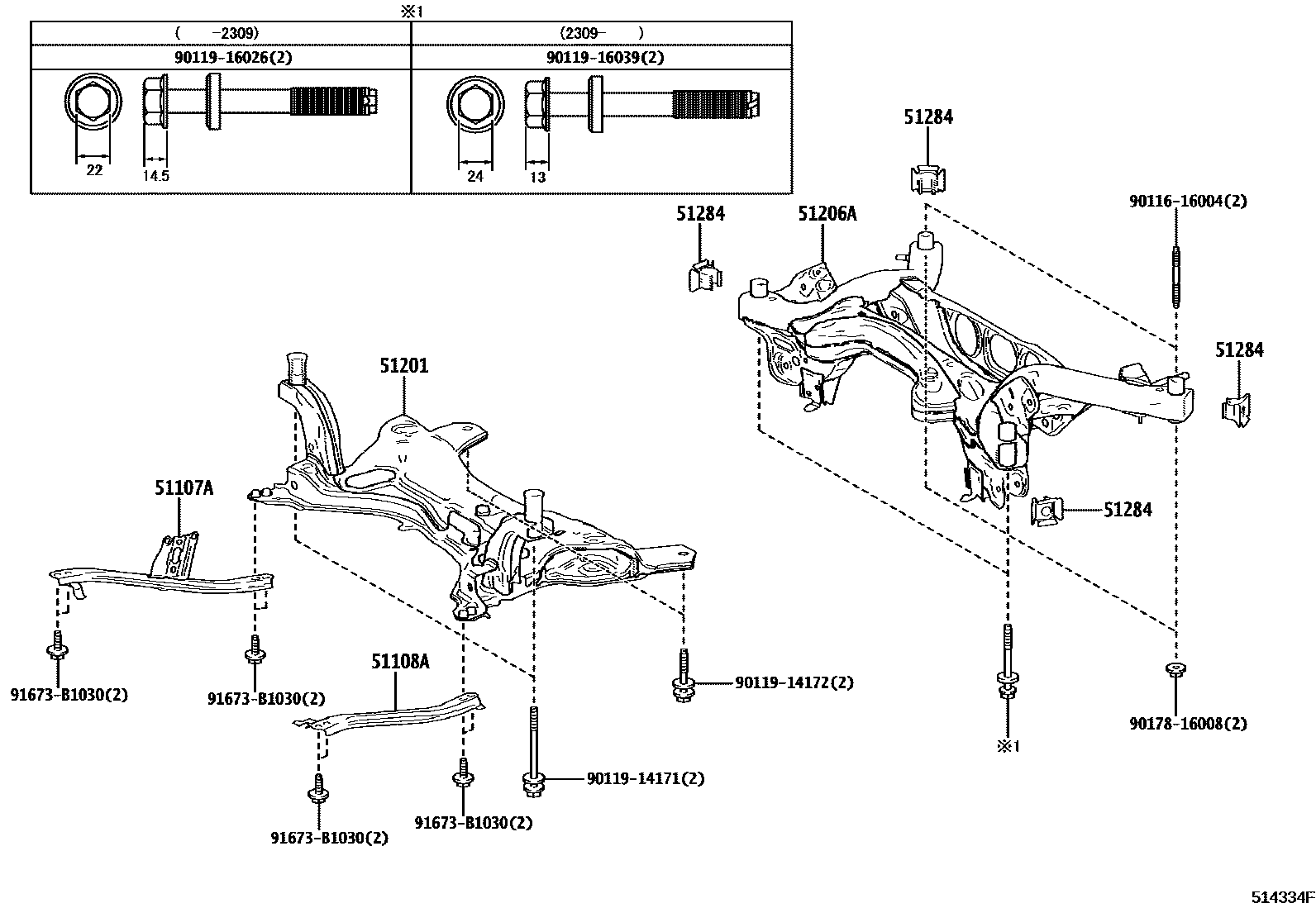

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1��������������� 0002 1������������� 0003 1�����������

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-12030iGZEA14..05S202212-202409

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-12040iGZEA14..02S202212-202409

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12480iGZEA14..05S202212-202409

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12220iGZEA14..02S202212-202409

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iGZEA14..02S202212-202409

9011616004

main90116-16004

9011914171

main90119-14171

9011914172

main90119-14172

9011916026

main90119-16026

9011916039

main90119-16039

9017816008

main90178-16008

91673B1030

main91673-B1030

12 parts on this diagram · 3 diagrams in section
