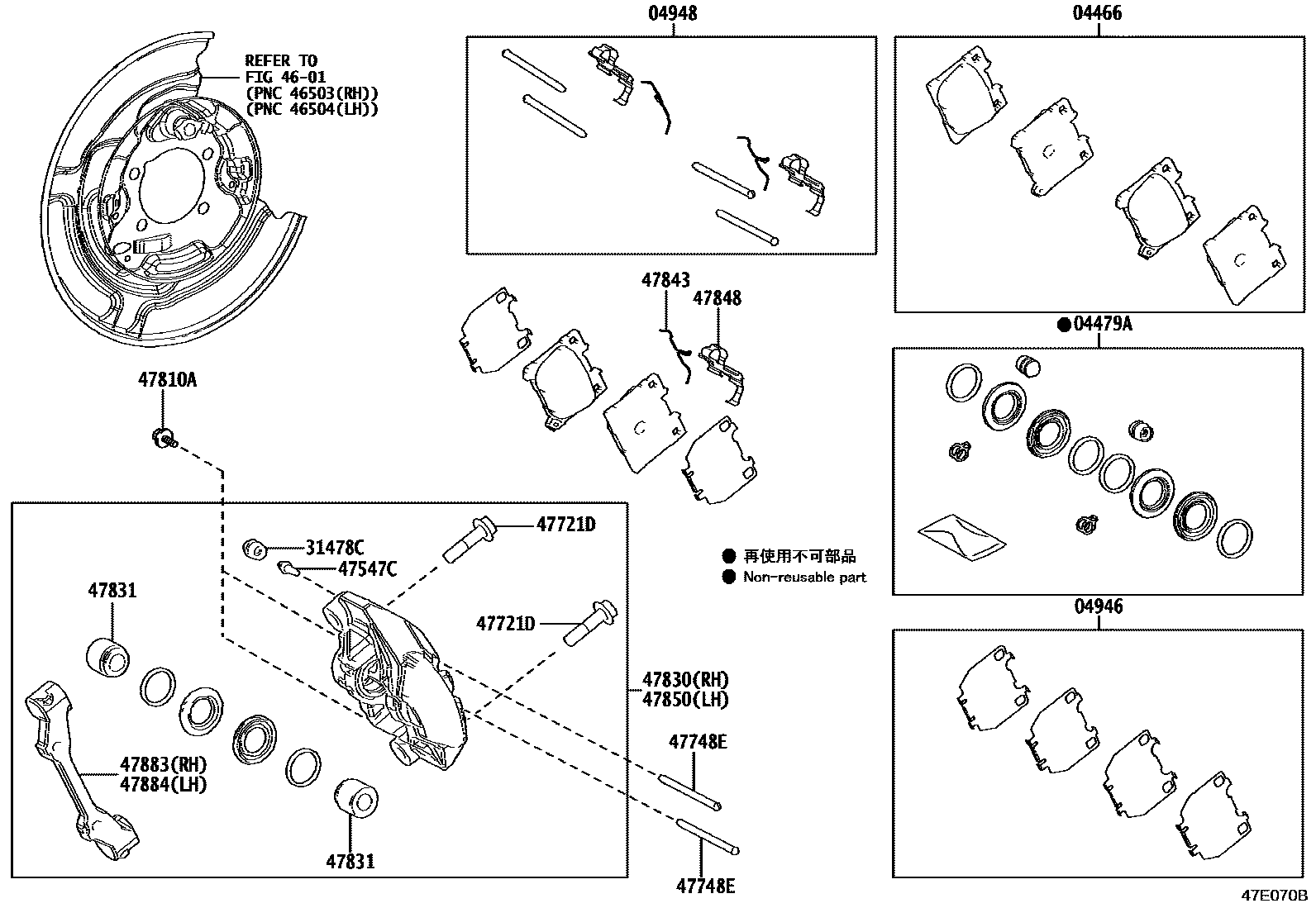

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52200iGZEA14..02S202212-202304

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52280iGZEA14..02S202212-202304

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52120iGZEA14..02S202212-202304

04948FITTING KIT, DISC BRAKE, REAR

main04948-52050iGZEA14..02S202212-202304

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020×2iGZEA14..02S202212-202304

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020×2iGZEA14..02S202212-202304

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA604×4iGZEA14..02S202212-202304

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main47735-52310×4iGZEA14..02S202212-202304

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iGZEA14..02S202212-202304

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52250iGZEA14..02S202212-202304

47831PISTON, REAR DISC BRAKE

main47731-18030×4iGZEA14..02S202212-202304

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-52250×2iGZEA14..02S202212-202304

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47848-52250×2iGZEA14..02S202212-202304

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52250iGZEA14..02S202212-202304

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-52040iGZEA14..02S202212-202304

47884BRACKET, CALIPER SUPPORT, REAR LH

main47883-52040iGZEA14..02S202212-202304

17 parts on this diagram · 1 diagram in section
