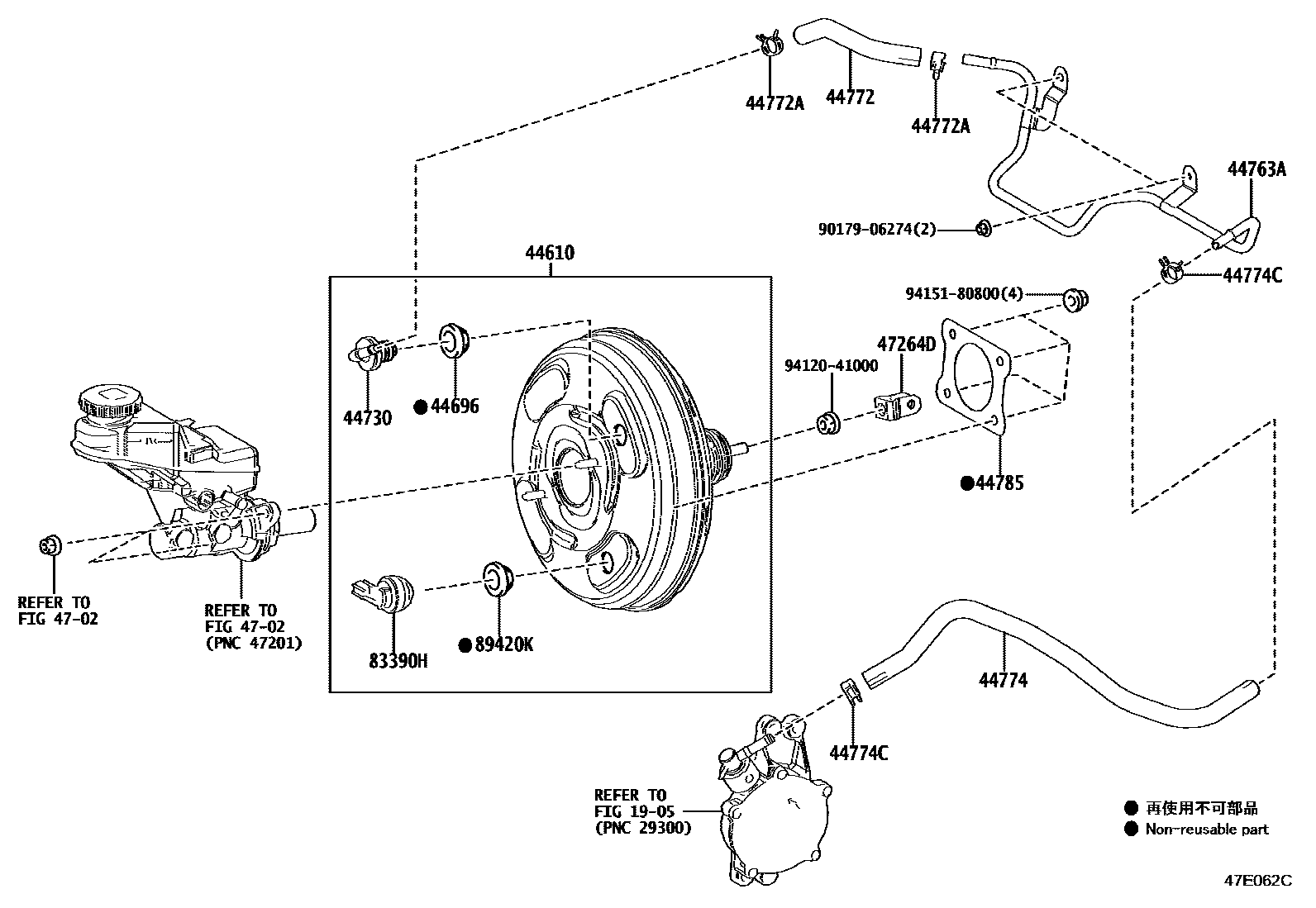

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-12N80iGZEA14..02S202212-202409

44696GROMMET, CHECK VALVE

main90480-24439iGZEA14..02S202212-202409

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iGZEA14..02S202212-202409

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12590iGZEA14..02S202212-202409

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12810iGZEA14..02S202212-202409

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iGZEA14..02S202212-202409

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12B10iGZEA14..02S202212-202409

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iGZEA14..02S202212-202409

44785GASKET, BRAKE BOOSTER

main44785-12040iGZEA14..02S202212-202409

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iGZEA14202311-202409

main47264-63010iGZEA14..05S202212-202311

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGZEA14..02S202212-202409

89420KGROMMET, VACUUM SENSOR

main90480-24439iGZEA14..02S202212-202409

9017906274

main90179-06274

9412041000

main94120-41000

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
