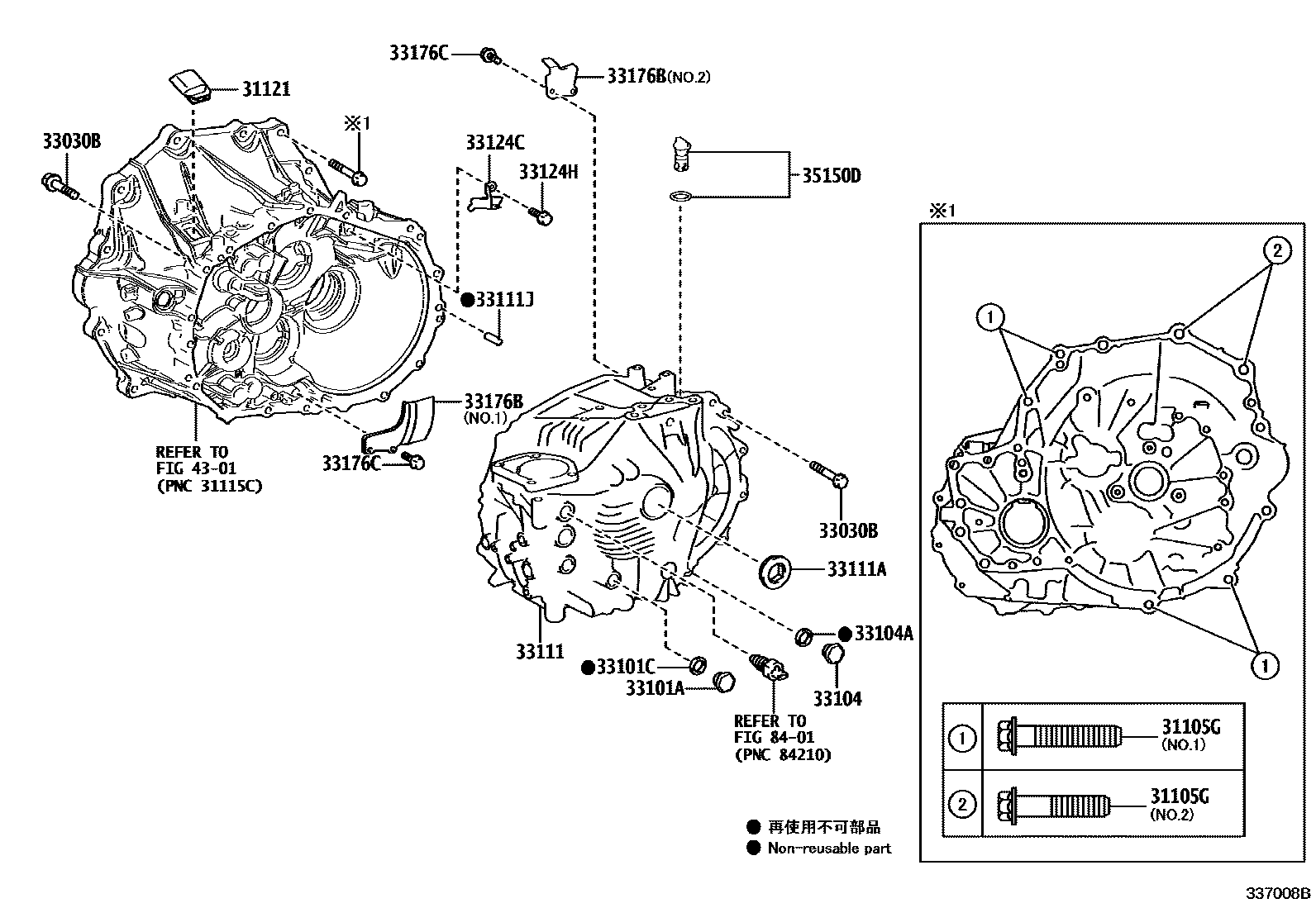

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10591iGZEA14..05S202212-202409

main91552-81250iGZEA14..05S202212-202409

31121COVER, CLUTCH HOUSING, NO.1

main31121-52020iGZEA14..05S202212-202409

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iGZEA14..05S202212-202409

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iGZEA14..05S202212-202404

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iGZEA14..05S202212-202409

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18085iGZEA14..05S202212-202409

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGZEA14..05S202212-202409

33111CASE, MANUAL TRANSMISSION

main33111-52080iGZEA14..05S202212-202409

33111APLUG, MANUAL TRANSMISSION CASE

main90341-42002iGZEA14..05S202212-202409

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iGZEA14..05S202212-202409

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-52040iGZEA14..05S202212-202409

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-B0616iGZEA14..05S202212-202409

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-20010iGZEA14..05S202212-202409

main33176-52030iGZEA14202212-202409

33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)

main91611-B0616iGZEA14..05S202212-202409

35150DPLUG ASSY, TRANSMISSION CASE

main35150-44010iGZEA14..02S202212-202409

4301

8401

17 parts on this diagram · 1 diagram in section
