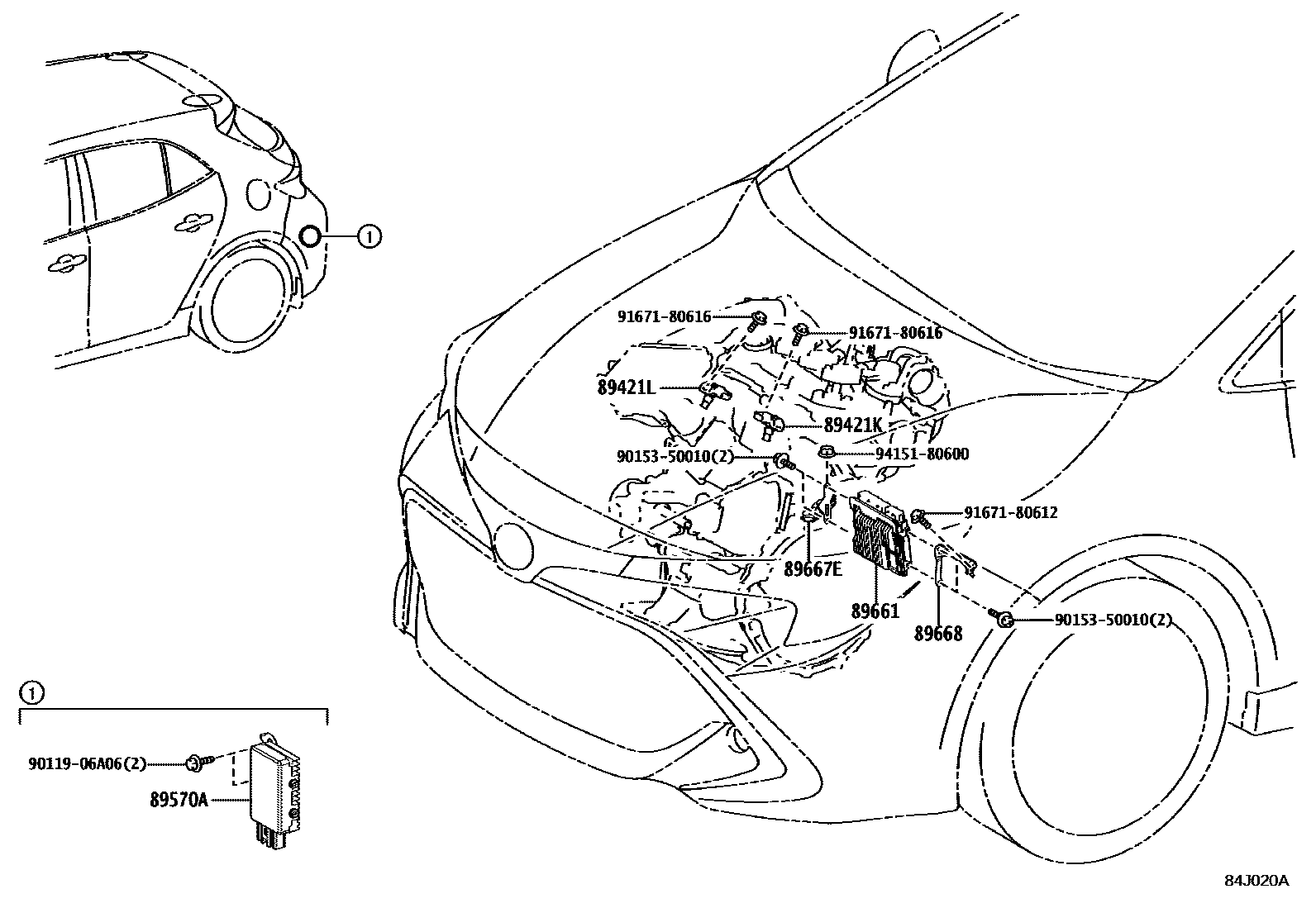

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZWE211201806-202005

main89421-33010iMZEA12202210-202505

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-78010iNRE21#201806

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-78010iNRE21#..CVT201806

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-12410iNRE21#..CVT201806

89661COMPUTER, ENGINE CONTROL

main89661-12W10iZWE213202006

main89661-12Z20iZWE211201806-202005

main89661-12Z40iNRE210..CVT201806-201810

main89661-12Z41iNRE210..CVT201811-201903

main89661-12Z42iNRE210..CVT201904

main89661-12Z50iNRE214201806-201810

main89661-12Z51iNRE214201811-201903

main89661-12Z52iNRE214201904

main89661-12Z60iNRE210..6F201808-201810

main89661-12Z61iNRE210..6F201811-201903

main89661-12Z62iNRE210..6F201904

main89661-16820iZWE219202404

main89661-1AF70iZWE219202210-202404

main89661-1AG20iMZEA12202210-202505

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-10050iNRE21#201806

main89667-12350iMZEA12202210-202505

main89667-47100iZWE211201806-202005

main89667-47120iZWE219202210

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12280iMZEA12202210-202505

main89668-12320iNRE21#201806

main89668-47050iZWE211201806-202005

main89668-47070iZWE219202210

9011906A06

main90119-06A06

9015350010

main90153-50010

9167180612

main91671-80612

9167180616

main91671-80616

9415180600

main94151-80600

12 parts on this diagram · 4 diagrams in section
