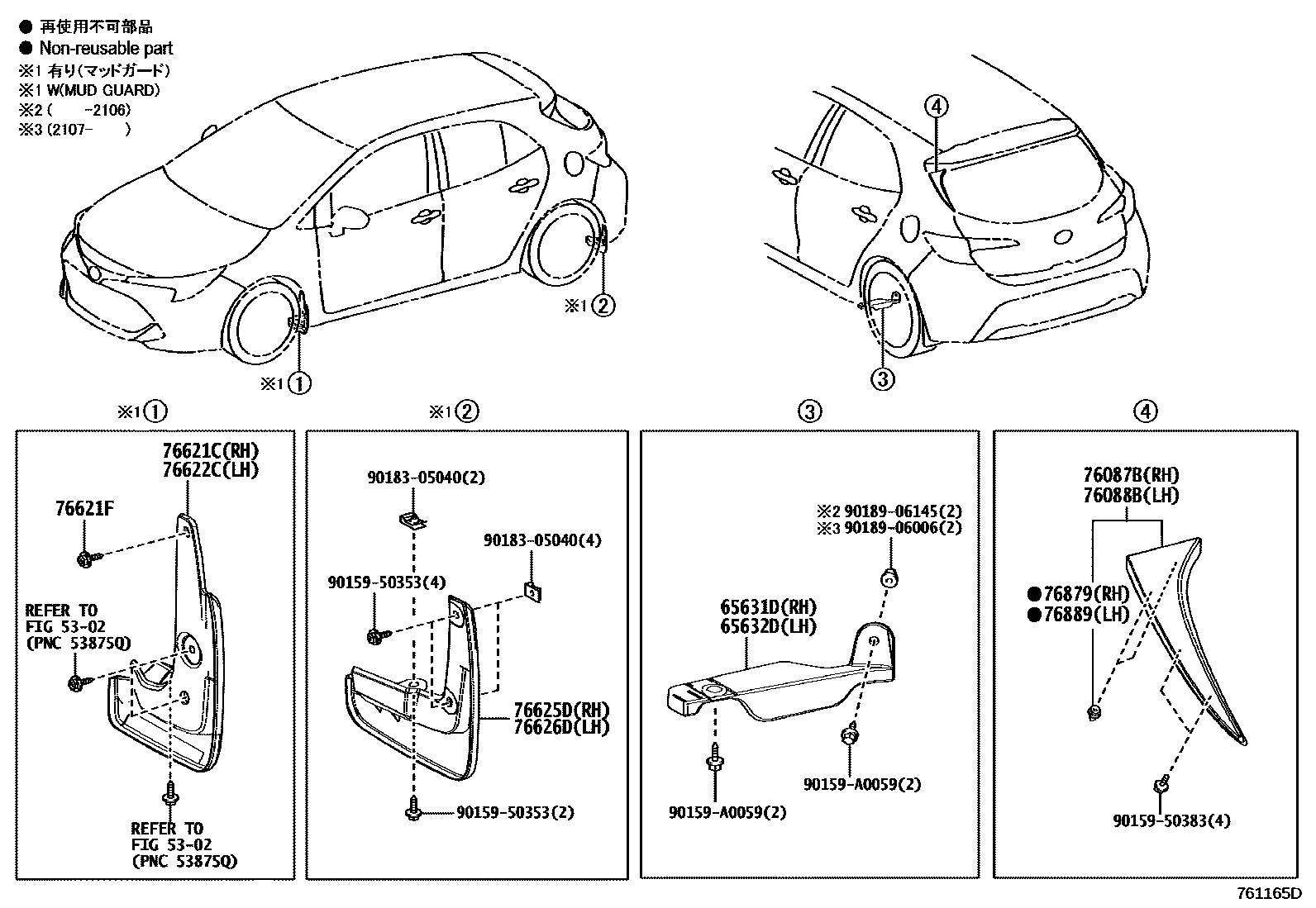

MUDGUARD & SPOILER

5302

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-12110iZWE211201806-202505

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-12110iZWE211201806-202505

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-12060iZWE211201806-202505

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-12060iZWE211201806-202505

76621CMUDGUAD, FRONT FENDER, RH

main76621-12230iZWE211201806-202505

76621FSCREW, NO.1

main90159-60622iNRE21#,ZWE211201806-201904

sub90159-60623

main90159-60623iZWE211201905-202505

76622CMUDGUARD, FRONT FENDER, LH

main76622-12230iZWE211201806-202505

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-12660iZWE211201806-202505

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-12640iZWE211201806-202505

76879CLIP, REAR SPOILER, NO.1

main90467-09233iZWE211201806-202505

76889CLIP, REAR SPOILER, NO.2

main90467-09233iZWE211201806-202505

9015950353

main90159-50353

9015950383

main90159-50383

90159A0059

main90159-A0059

9018305040

main90183-05040

9018906006

main90189-06006

9018906145

main90189-06145

18 parts on this diagram · 1 diagram in section
