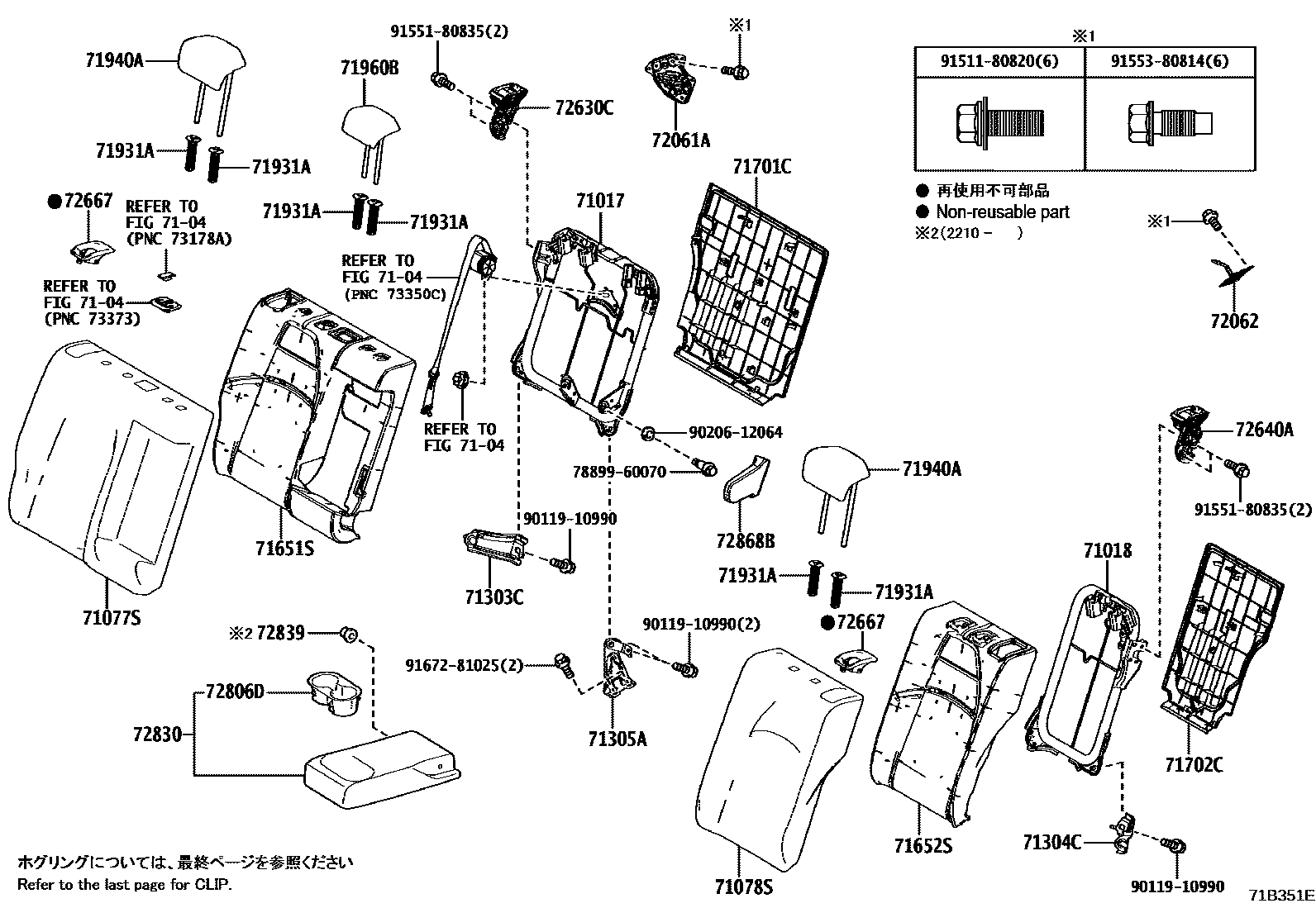

REAR SEAT & SEAT TRACK

0001 1������� 0002 1�������� 0003 1�������� 0004 1�������� 0005 1�������

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-12C20iZWE211201806-202005

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-12540iNRE21#,ZWE213201806

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-12V10-C7iNRE210201806-201909

main71077-12V10-C8iNRE21#,ZWE211201806-201909

main71077-12X40-C5supersedes 71077-12X70-C3iNRE21#,ZWE211201806-201909

main71077-12X80-E3iNRE21#,ZWE211201806-201909

main71077-12Y90-E0iNRE21#,ZWE213201909

main71077-12Z00-C0supersedes 71077-12Y80-C0iNRE21#,ZWE213201909

main71077-12Z00-C1iNRE21#,ZWE213201909

main71077-12Z10-C0supersedes 71077-12Y80-C0iNRE21#201909-202006

main71077-12Z20-C0iNRE21#,ZWE213202006-202111

main71077-1AC10-C2supersedes 71077-1AB60-C2iMZEA12,ZWE219202210-202404

main71077-1AC11-C3supersedes 71077-1AB61-C3iZWE219202404

main71077-1AC20-C4supersedes 71077-1AB60-C2iMZEA12,ZWE219202210-202404

main71077-1AC20-C5iMZEA12,ZWE219202210-202404

main71077-1AC21-C6supersedes 71077-1AB61-C3iMZEA12202404-202505

main71077-1AC21-C7iMZEA12202404-202505

main71077-1AF60-C0iZWE213202111

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-12Q40-E3iNRE21#,ZWE211201806-201909

main71078-12Q60-C7iNRE210201806-201909

main71078-12Q60-C8iNRE21#,ZWE211201806-201909

main71078-12Q80-20supersedes 71078-12S10-C4iNRE21#,ZWE211201806-201909

main71078-12S60-E0iZWE211201909-202005

main71078-12S70-C0supersedes 71078-12Q30-C0iZWE211201909-202005

main71078-12S70-C1iZWE211201909-202005

main71078-12S80-C0supersedes 71078-12Q30-C0iZWE211201909-202005

main71078-12T20-C0iNRE21#,ZWE213202006-202111

main71078-12U30-C2supersedes 71078-12U00-C2iMZEA12,ZWE219202210-202404

main71078-12U31-C3supersedes 71078-12U01-C3iMZEA12202404-202505

main71078-12U40-C4supersedes 71078-12U00-C2iMZEA12,ZWE219202210-202404

main71078-12U40-C5iMZEA12,ZWE219202210-202404

main71078-12X40-C0iZWE213202111

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-12230iNRE21#,ZWE211,213201806

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-12100iNRE21#,ZWE211,213201806

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47040iNRE21#,ZWE211,213201806

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-12B90iZWE219202210

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-12A20iZWE211201806-202005

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-12010iZWE211201806-202005

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-12010iZWE211201806-202005

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5×3iZWE211201909-202005

main71931-47030-C4×3iNRE21#..CVT201909

71940AHEADREST ASSY, REAR SEAT

main71940-12F10-C7×2iNRE21#,ZWE213201806

BLACK / GRAY DOT,TRIM2#

main71940-12F50-C4×2supersedes 71940-12F10-C7iNRE21#202006-202111

main71940-12F50-C6×2iZWE213202006-202111

main71940-12F50-C7×2iZWE213202111

main71940-12F50-D3×2iNRE21#,ZWE213201806

main71940-12F50-E2×2iZWE211201806-202005

main71940-12F51-C8×2supersedes 71940-12F11-C9iZWE219202404

main71940-12F51-D4×2iMZEA12202404-202505

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-12B10-C2iZWE211201806-202005

BLACK / GRAY DOT,TRIM2#

main71960-12B11-C4iMZEA12202404-202505

BLACK/GRAY,TRIM2#

main71960-12B20-C2iNRE21#,ZWE213202006-202111

main71960-12B20-E3iZWE211201806-202005

main71960-12B21-C6iMZEA12202404-202505

72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH

main72061-12020iNRE21#,ZWE213201806

72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH

main72062-12020iZWE219202210

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47050-C2iNRE21#,ZWE213201806

BLACK,TRIM2#,3#,4#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47050-C2iMZEA12202210-202505

BLACK,TRIM2#,3#,4#

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-47010-C1×2iZWE211201806-202005

BLACK,TRIM2#,3#,4#

72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-47010-C1iZWE211201806-202005

BLACK,TRIM2#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-12A91-C5iZWE211201806-202005

BLACK,TRIM2#

main72830-12A92-C7iMZEA12202404-202505

BLACK/GRAY,TRIM2#

main72830-12B01-C3iZWE211201806-202005

main72830-12B01-E4iZWE213201806

main72830-12B02-C4iMZEA12202404-202505

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010iMZEA12202210-202505

72868BCOVER, CENTER ARMREST HINGE

main72868-12080-C0iNRE21#,ZWE213201806

BLACK,TRIM2#

7889960070BOLT, FRONT SEAT

main78899-60070

9011910990

main90119-10990

9020612064

main90206-12064

9151180820

main91511-80820

9155180835

main91551-80835

9155380814

main91553-80814

9167281025

main91672-81025

31 parts on this diagram · 5 diagrams in section
