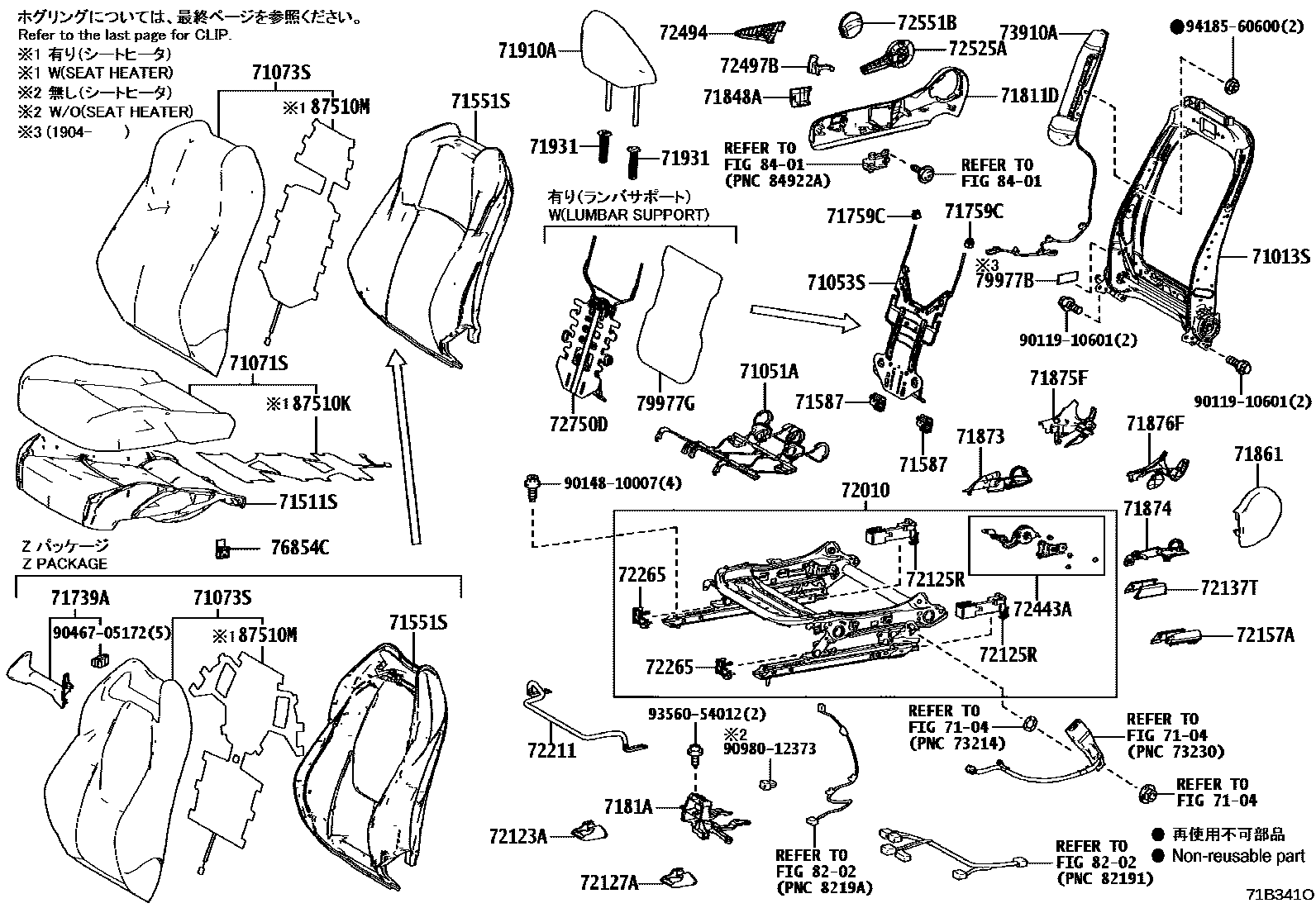

FRONT SEAT & SEAT TRACK

0001 1RH 0002 1LH 0003 1�������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-33390iZWE219202210

main71013-33550iMZEA12201806-202505

sub71013-33390

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iZWE219201806-202505

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-47050iZWE211201806-202505

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-1AF00-C4iZWE211201909-202111

sub71071-1AF01

main71071-1AF00-C5iNRE21#,ZWE213201806-202111

sub71071-1AF01

main71071-1AF01-C4iNRE21#,ZWE213202112

main71071-1AF01-C5iNRE21#,ZWE213202112

main71071-1AF20-C2iZWE211201806-202005

main71071-1AF30-C2iZWE211201806-202005

BLACK/GRAY DOT,TRIM2#

main71071-1AK50-C1iZWE211201806-202006

main71071-1AK70-E2iNRE21#201806-202006

main71071-1AK80-E2iZWE211201806-202005

main71071-1AM50-C0iNRE21#,ZWE213201909-202005

main71071-1AM70-C0iNRE21#,ZWE213202006-202111

main71071-1AM80-C0iNRE21#,ZWE213202006-202111

main71071-1AP50-C0iMZEA12,ZWE219202210-202404

BLACK/GRAY DOT,TRIM2#

main71071-1AP51-C2iZWE219202404-202505

BLACK/GRAY,TRIM2#

main71071-1AP60-C0iMZEA12,ZWE219202210-202404

main71071-1AP61-C2iMZEA12202404-202505

main71071-1AQ50-C1iMZEA12,ZWE219202210-202404

main71071-1AQ51-C2iMZEA12202404-202505

main71071-1AR00-C0iZWE219202210-202505

main71071-1AR00-C1iMZEA12202210-202505

main71071-1AS70-C0iZWE213202111

main71071-1AS80-C0iZWE213202111

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1AF40-C6iZWE213201806-202011

sub71073-1AF41

main71073-1AF40-C7iNRE21#,ZWE213201806-202011

sub71073-1AF41

main71073-1AF41-C6iNRE21#,ZWE213202012

main71073-1AF41-C7iNRE21#,ZWE213202012

main71073-1AK20-E2iNRE21#,ZWE213201806-202005

main71073-1AK30-E2iZWE211201806-202006

main71073-1AK70-C1iNRE21#201806-202006

main71073-1AK80-C1iZWE211201806-202005

main71073-1AK90-C1iNRE21#,ZWE213201806-202005

BLACK/GRAY DOT,TRIM2#

main71073-1AM50-C0iZWE211201909-202005

main71073-1AM70-C0iNRE21#,ZWE213202006-202111

main71073-1AM80-C0iNRE21#,ZWE213202006-202111

main71073-1AQ70-C0iMZEA12202210-202505

BLACK/GRAY DOT,TRIM2#

main71073-1AQ80-C0iMZEA12202210-202505

main71073-1AR60-C1iMZEA12202210-202505

main71073-1AS20-C0iMZEA12202210-202505

main71073-1AS20-C1iMZEA12202210-202505

main71073-1AT80-C0iZWE213202111

main71073-1AT90-C0iZWE213202111

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-12C70iNRE21#,ZWE213201806-202505

main71511-12C90iZWE211201909-202505

main71511-12C90iNRE21#201806-202006

main71511-12C90iNRE21#,ZWE213201806-202505

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-12E20iZWE211201806-202505

main71551-12E30iZWE211201806-202006

main71551-12E30iZWE211201806-202505

main71551-12E30iZWE219201909-202505

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iZWE219201806-202505

71739ABEZEL, FRONT SEATBACK

main71739-12030iNRE21#,ZWE213201909-202505

main71739-12030iZWE211201806-202006

main71739-12040iZWE219201806-202505

71759CHOOK, FRONT SEATBACK, NO.1

main71759-50040iMZEA12202210-202505

main71759-52050iZWE211201806-202005

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-47140-C1iZWE213202006-202505

BLACK,TRIM2#,4#

sub71811-47140

main71811-47140-C1iZWE211201806-202005

BLACK,TRIM2#,3#,4#

sub71811-47140

main71811-47170-C1iNRE21#,ZWE213201806-202505

sub71811-47170

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-47010iZWE211201806-202505

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-10020-C0iZWE219202303-202505

BLACK,TRIM2#

main71848-47040-C1iZWE211201806-202005

sub71848-47040

sub71848-10020

main71848-47040-C1iZWE211201806-202005

BLACK,TRIM2#,3#,4#

sub71848-47040

sub71848-10020

main71848-47040-C1iZWE213202006-202303

BLACK,TRIM2#,4#

sub71848-47040

sub71848-10020

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C1iZWE213202006-202505

BLACK,TRIM2#,4#

sub71861-47070

main71861-47070-C1iZWE211201806-202005

BLACK,TRIM2#,3#,4#

sub71861-47070

main71861-47070-C1iZWE211201806-202005

sub71861-47070

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iMZEA12201806-202505

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-47080iMZEA12201806-202505

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-47040-C1iZWE211201806-202005

sub71875-47040

main71875-47040-C1iZWE211201806-202005

BLACK,TRIM2#,3#,4#

sub71875-47040

main71875-47040-C1iZWE213202006-202505

BLACK,TRIM2#,4#

sub71875-47040

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-47070-C1iZWE211201806-202005

BLACK,TRIM2#,3#,4#

sub71875-47070

main71875-47070-C1iZWE211201806-202005

sub71875-47070

main71875-47070-C1iZWE213202006-202505

BLACK,TRIM2#,4#

sub71875-47070

71910AHEADREST ASSY, FRONT SEAT

main71910-12M40-C3iZWE211201909-202103

main71910-12M40-D2iNRE21#,ZWE213201806-202103

main71910-12M41-C4iMZEA12,ZWE219202103-202404

main71910-12M41-D3iMZEA12,ZWE219202103-202404

main71910-12M42-C5iZWE219202404-202505

main71910-12M42-D4iZWE219202404-202505

main71910-12M50-C1iNRE21#,ZWE213201806-202404

BLACK/GRAY DOT,TRIM2#

main71910-12M51-C4iZWE219202404-202505

BLACK/GRAY,TRIM2#

main71910-12M60-C1iZWE211201909-202005

main71910-12M60-C1iZWE211201806-202006

main71910-12M60-C5iMZEA12,ZWE219202210-202404

main71910-12M61-C6iMZEA12202404-202505

main71910-12M70-E1iNRE21#201806-202006

main71910-12M70-E1iNRE21#,ZWE213201806-202005

main71910-12N70-C1iNRE21#,ZWE213202006-202009

sub71910-12N70

sub71910-12N72

main71910-12N70-C1iNRE21#,ZWE213202006-202009

sub71910-12N70

sub71910-12N72

main71910-12N71-C3iNRE21#,ZWE213202009-202111

sub71910-12N71

main71910-12N71-C3iNRE21#,ZWE213202009-202111

sub71910-12N71

main71910-12N71-C5iZWE213202111

sub71910-12N71

main71910-12N71-C5iZWE213202111

sub71910-12N71

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5iZWE211201806-202505

main71931-47030-C4iZWE219201806-202505

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-47360iNRE21#,ZWE211201806-201905

main72010-47361iZWE211201906-202505

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-47060iZWE211201806-202505

72125RCOVER, SEAT TRACK, UPPER REAR NO.1

main72125-47010iZWE219201806-202505

main72125-47010iNRE210,ZWE211201806-201909

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-47060iZWE211201806-202505

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iZWE211201806-202505

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-47080iZWE211201806-202505

72211HANDLE, SEAT TRACK ADJUSTING

main72211-47050iMZEA12201806-202505

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-47010iZWE219201806-202505

72443AGEAR, VERTICAL ADJUSTER, RH

main72443-47010iNRE21#,ZWE211201806-201903

main72443-47011iZWE219201904-202505

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-12080-C0iZWE219202303-202505

BLACK,TRIM2#

main72494-47030-C1iNRE21#201806-202005

sub72494-47030

main72494-47030-C1iZWE211201806-202005

BLACK,TRIM2#,3#,4#

sub72494-47030

main72494-47030-C1iZWE213202006-202303

BLACK,TRIM2#,4#

sub72494-47030

72497BCOVER, VERTICAL ADJUSTER BRACKET, RH

main72498-47010iZWE211201806-202505

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-33050-C0iZWE211201806-202505

BLACK,TRIM2#,4#

main72525-33050-C0iZWE211201806-202005

72551BCOVER, RECLINING HINGE, RH

main72551-33010-C0iZWE211201806-202505

BLACK,TRIM2#,3#,4#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-33140iZWE211201806-202505

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-12100iZWE211201806-202505

76854CRETAINER, FRONT SEAT CUSHION COVER

main76854-44010iMZEA12202210-202505

79977BFELT, SEATBACK FRAME

main79977-12090iZWE211201904-202505

79977GFELT, FRONT SEATBACK, RH

main79977-33030iZWE219201806-202505

8202

8401

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-12330iZWE211201806-202505

main87510-12330iZWE211201806-202005

main87510-12330iZWE213202111

main87510-12330iNRE21#,ZWE213202006-202111

main87510-12360iZWE211201909-202401

sub87510-12361

main87510-12361iMZEA12202402-202505

main87510-12370iMZEA12,ZWE219201806-202402

sub87510-12371

main87510-12371iMZEA12202403-202505

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-12090iZWE211201806-202005

main87530-12090iZWE211201806-202505

main87530-12090iNRE21#,ZWE213202006-202111

main87530-12090iZWE213202111

main87530-12110iMZEA12201909-202505

main87530-12110iZWE211201806-202505

9011910601

main90119-10601

9014810007

main90148-10007

9046705172

main90467-05172

9098012373

main90980-12373

9356054012

main93560-54012

9418560600

main94185-60600

49 parts on this diagram · 3 diagrams in section
