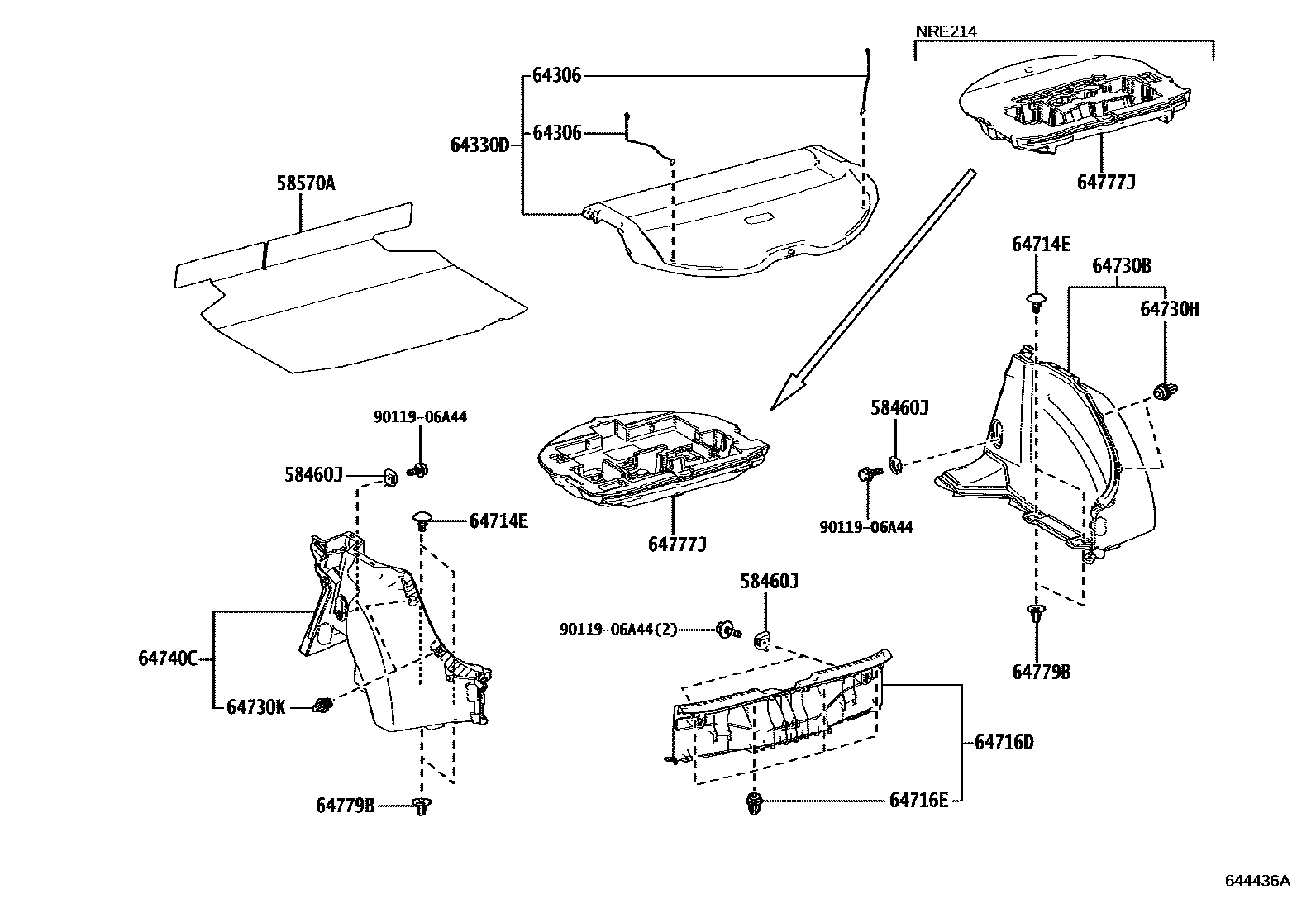

DECK BOARD & DECK TRIM COVER

0001 1���������(���������) 0002 1���������(��������) 0003 14:2:4�����������������������

58460JSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020×4iZWE211201806-202005

58570AMAT ASSY, REAR FLOOR

main58570-12520-C0iNRE21#,ZWE213201806

BLACK,TRIM2#,3#,4#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-12130×2iNRE21#,ZWE211201806-201811

main64306-12131×2iMZEA12202210-202505

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-12C30-C1iNRE21#,ZWE213201806-202105

BLACK,TRIM2#,3#,4#

main64330-12C31-C1iMZEA12202210-202505

BLACK,TRIM2#,3#,4#

64714ECLIP(FOR DECK TRIM SIDE COVER)

main64726-26010-C2×4iZWE211201806-202005

BLACK,TRIM2#,3#,4#

64716DCOVER, DECK TRIM, REAR

main64716-12370-C0iNRE21#,ZWE213201806

BLACK,TRIM2#,3#,4#

main64716-12380-C0supersedes 64716-12370-C0iZWE213202006

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10167×4iZWE211201806-202005

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-12480-C0iNRE21#,ZWE213201806

BLACK,TRIM2#,3#,4#

main64730-12490-C0supersedes 64730-12480-C0iZWE211201806-202005

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-10161×2iMZEA12202210-202505

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161×2iZWE219202210

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-12460-C0iNRE21#,ZWE213201806

BLACK,TRIM2#,3#,4#

main64740-12470-C0supersedes 64740-12460-C0iZWE211201806-202005

64777JCUSHION, SPARE WHEEL

main64777-12200iMZEA12202210-202505

main64777-12220iNRE214201806-202005

main64777-12330iNRE214202006

main64777-12210supersedes 64777-12200iZWE219202210

64779BSTOPPER, SPARE WHEEL COVER

main64779-26010×4iNRE21#,ZWE213201806

9011906A44

main90119-06A44

14 parts on this diagram · 3 diagrams in section
