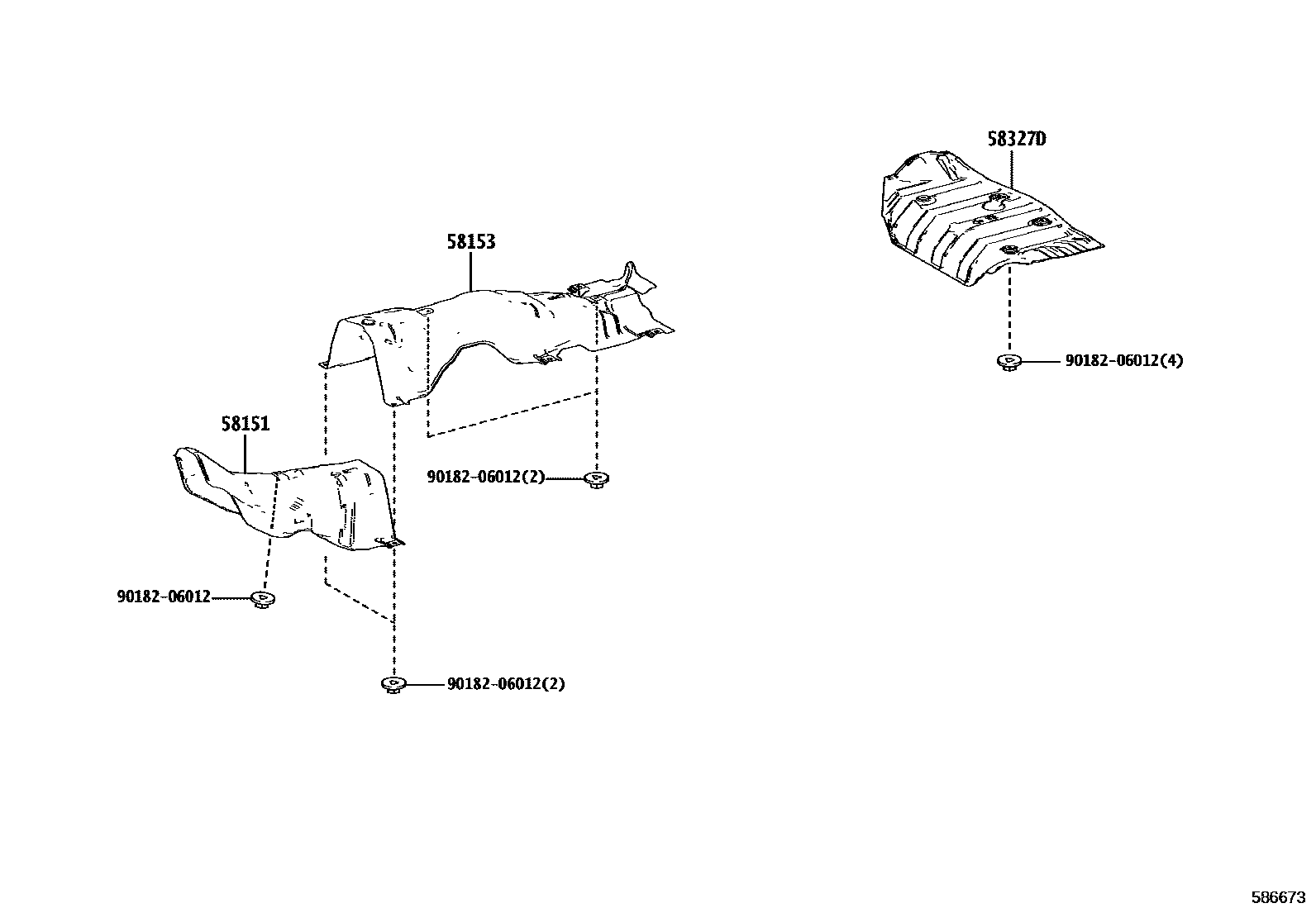

FLOOR INSULATOR

0001 1 0002 1 0003 1 0004 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-10060iNRE214201806

main58151-12380iNRE210201806

main58151-12390iMZEA12202210-202505

main58151-12420iZWE213201806

main58151-16060iZWE219202210

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-10040iNRE214201806

main58153-12230iNRE210,ZWE213201806-202105

main58153-12231iNRE210,ZWE213202106

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-12250iZWE211201806-202005

9018206012

main90182-06012

4 parts on this diagram · 4 diagrams in section
