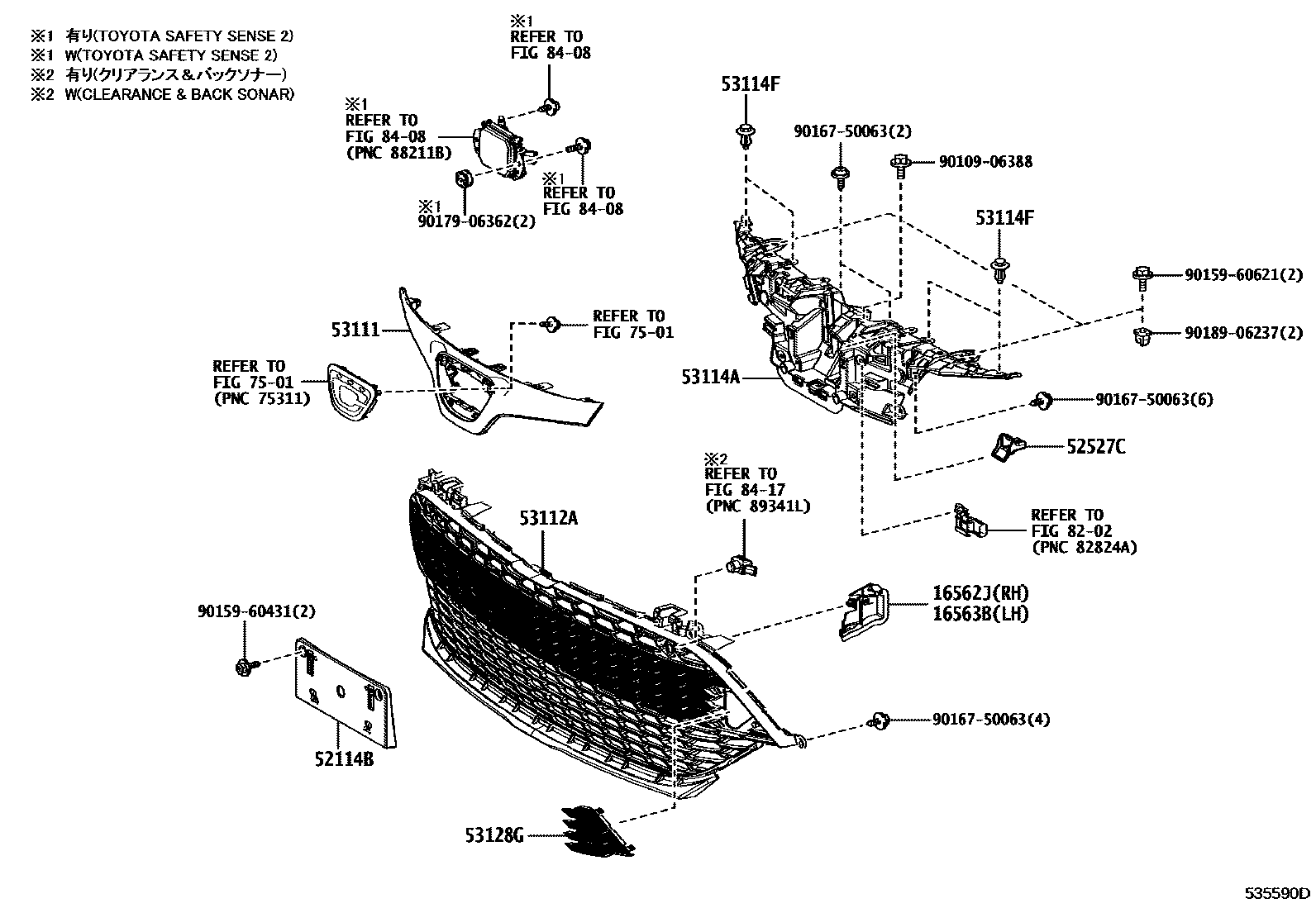

RADIATOR GRILLE

0001 1 0002 1

16562JSEAL, RADIATOR TO SUPPORT, NO.2

main16562-37050iM20AFKS..MZEA12202210-202505

16563BSEAL, RADIATOR TO SUPPORT, NO.3

main16563-37050iM20AFKS..MZEA12202210-202505

52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-12250iNRE21#,ZWE213201806

main52114-12320iMZEA12202210-202505

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-12060iMZEA12202210-202505

53111GRILLE, RADIATOR

main53111-12F20iMZEA12202210-202505

53112AGRILLE, RADIATOR, LOWER

main53102-12370supersedes 53102-12380iMZEA12202210-202505

main53112-12540supersedes 53112-12550iNRE21#,ZWE211201806-201909

53114AGRILLE, RADIATOR, INNER

main53114-12230iMZEA12202210-202505

53114FCLIP, RADIATOR GRILLE

main90467-05063-C0×4iMZEA12202210-202505

BLACK

53128GGRILLE, RADIATOR, LOWER SIDE LH

main53128-12100iZWE211201806-202005

main53128-12090iNRE21#,ZWE211201806-201909

main53128-12210supersedes 53128-12220iMZEA12202210-202505

7501

8202

8408

8417

9010906388

main90109-06388

9015960431

main90159-60431

9015960621

main90159-60621

9016750063

main90167-50063

9017906362

main90179-06362

9018906237

main90189-06237

19 parts on this diagram · 2 diagrams in section
