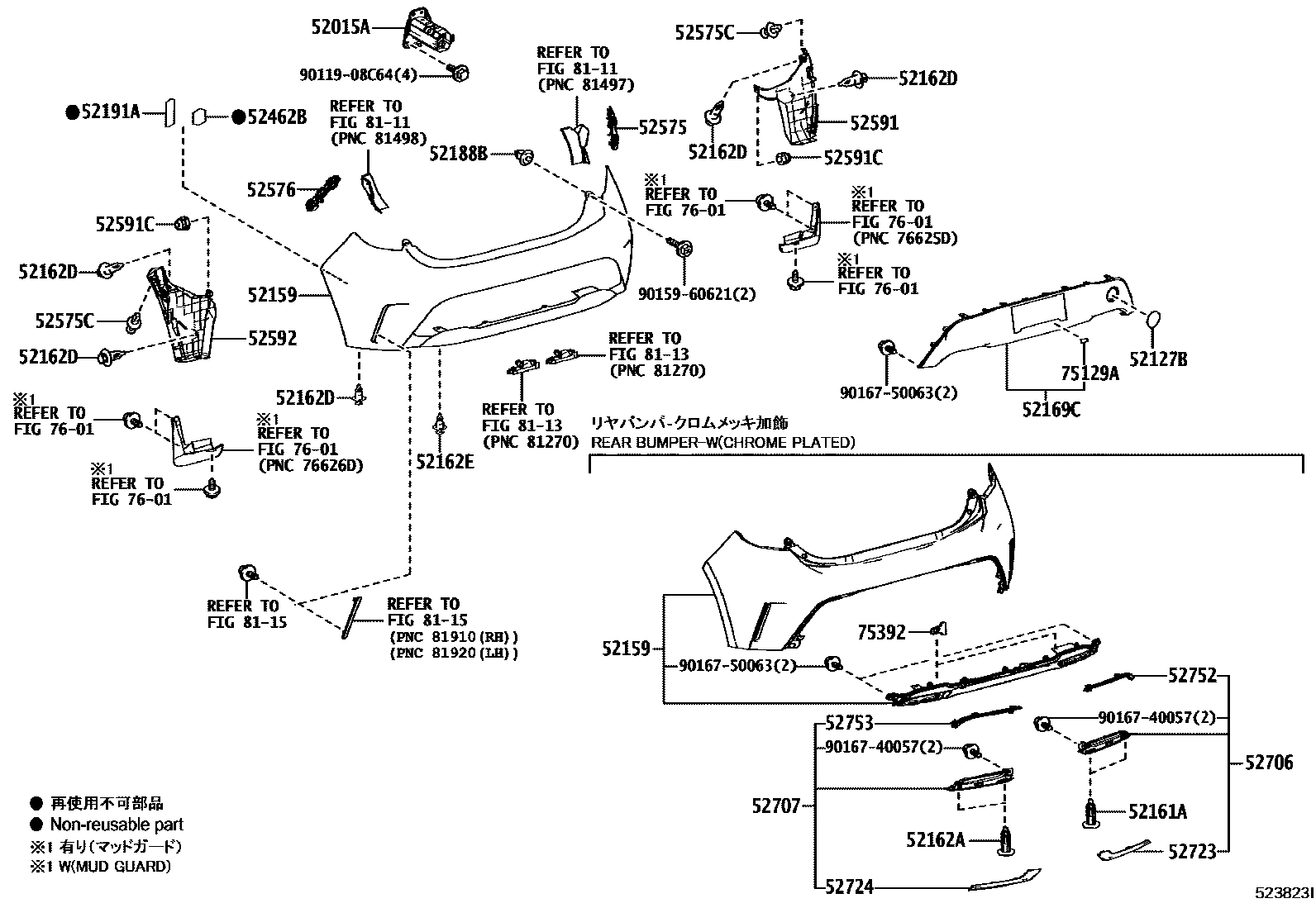

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52127BCOVER, REAR BUMPER HOLE, RH
52159COVER, REAR BUMPER
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
BLACKISH AGEHA GF.,221
ATTITUDE BLACK MC.,218
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,2XM ,3U9
OXIDE BRONZE ME.,2UD ,6X1
CYAN METALLIC,2UH ,8W9
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
EMOTIONAL RED 3,2XM ,3U9
ORANGE M.M.,4Y8
DK.BLUE M.M.,2RC ,8W7
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
SILVER ME.,1F7 ,2UF
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
SCARLET ME.,2UG ,3U4
OXIDE BRONZE ME.,2UD ,6X1
CYAN METALLIC,2UH ,8W9
52161APIECE, REAR BUMPER, RH
52162APIECE, REAR BUMPER, LH
52162DPIECE, REAR BUMPER
52162EPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
52188BSPACER, REAR BUMPER MOUNTING
52191ASEAL, REAR BUMPER ARM
52462BPAD, REAR BUMPER
52575RETAINER, REAR BUMPER SIDE, RH
52575CCLIP, REAR BUMPER SIDE RETAINER
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
52592SEAL, REAR BUMPER SIDE, LH
52706MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
52707MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
52723MOULDING, REAR BUMPER EXTENSION, RH
52724MOULDING, REAR BUMPER EXTENSION, LH
52752MOULDING, REAR BUMPER SIDE, RH
52753MOULDING, REAR BUMPER SIDE, LH
75129ACUSHION, REAR LICENCE PLATE
75392RETAINER, OUTSIDE MOULDING
7601
8111
8113
8115
9011908C64
main90119-08C64
9015960621
main90159-60621
9016740057
main90167-40057
9016750063
main90167-50063
33 parts on this diagram · 3 diagrams in section
