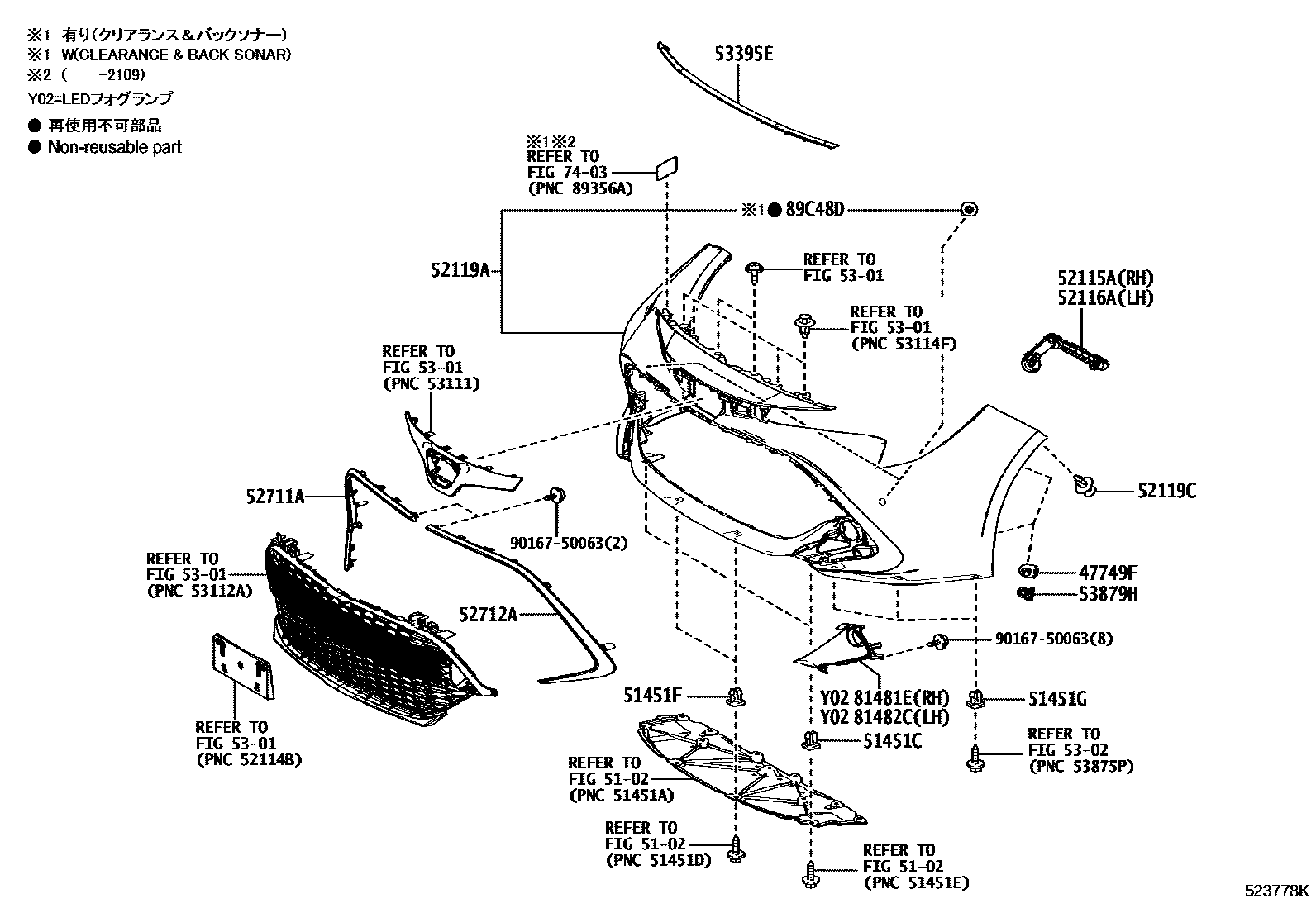

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
5102
51451CGROMMET(FOR ENGINE UNDER COVER)
51451FGROMMET, NO.1
51451GGROMMET, NO.2
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
BLACKISH AGEHA GF.,221
ATTITUDE BLACK MC.,218
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,2XM ,3U9
OXIDE BRONZE ME.,2UD ,6X1
CYAN METALLIC,2UH ,8W9
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
SCARLET ME.,3U4
OXIDE BRONZE ME.,6X1
CYAN METALLIC,8W9
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
EMOTIONAL RED 3,2XM ,3U9
ORANGE M.M.,4Y8
DK.BLUE M.M.,2RC ,8W7
52119CCLIP, FRONT BUMPER COVER
52711AGARNISH, FRONT BUMPER
52712AGARNISH, FRONT BUMPER, LH
5301
5302
53395ESEAL, HOOD TO FRONT END PANEL
53879HRETAINER, FRONT FENDER LINER
7403
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
9016750063
main90167-50063
20 parts on this diagram · 4 diagrams in section
