FRONT DRIVE SHAFT

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-10020i201806

main04437-10030i201806

main04437-47033i202210

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020i201806-202005

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-12131i201806-202208

main43040-12120i201806-202208

main43040-12160i202210-202505

main43040-47010i201806-202208

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-47010×2i202210-202505

main43247-F4020i201903-201904

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12B60i202210-202505

main43410-12B80i201806

main43410-12B90i201806

main43410-47040i201806

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35065i201808-202208

main90311-35076i201806-202208

main90311-40038i201806-202208

main90311-40047i202210-202505

main90311-40051i202210

main90316-28003i201806-202208

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008i201806

main90521-27005i201806

main90521-33002i201806

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070i201806

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230i201806-202005

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240i201806-202005

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230i201806-202005

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180i201806-202005

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49427i202210-202505

main43460-80186i201806-202208

main43470-80441i201806-202208

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-12210i201806

main43474-47020i202210-202505

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12090×2i201806

main42345-12100×2i201806

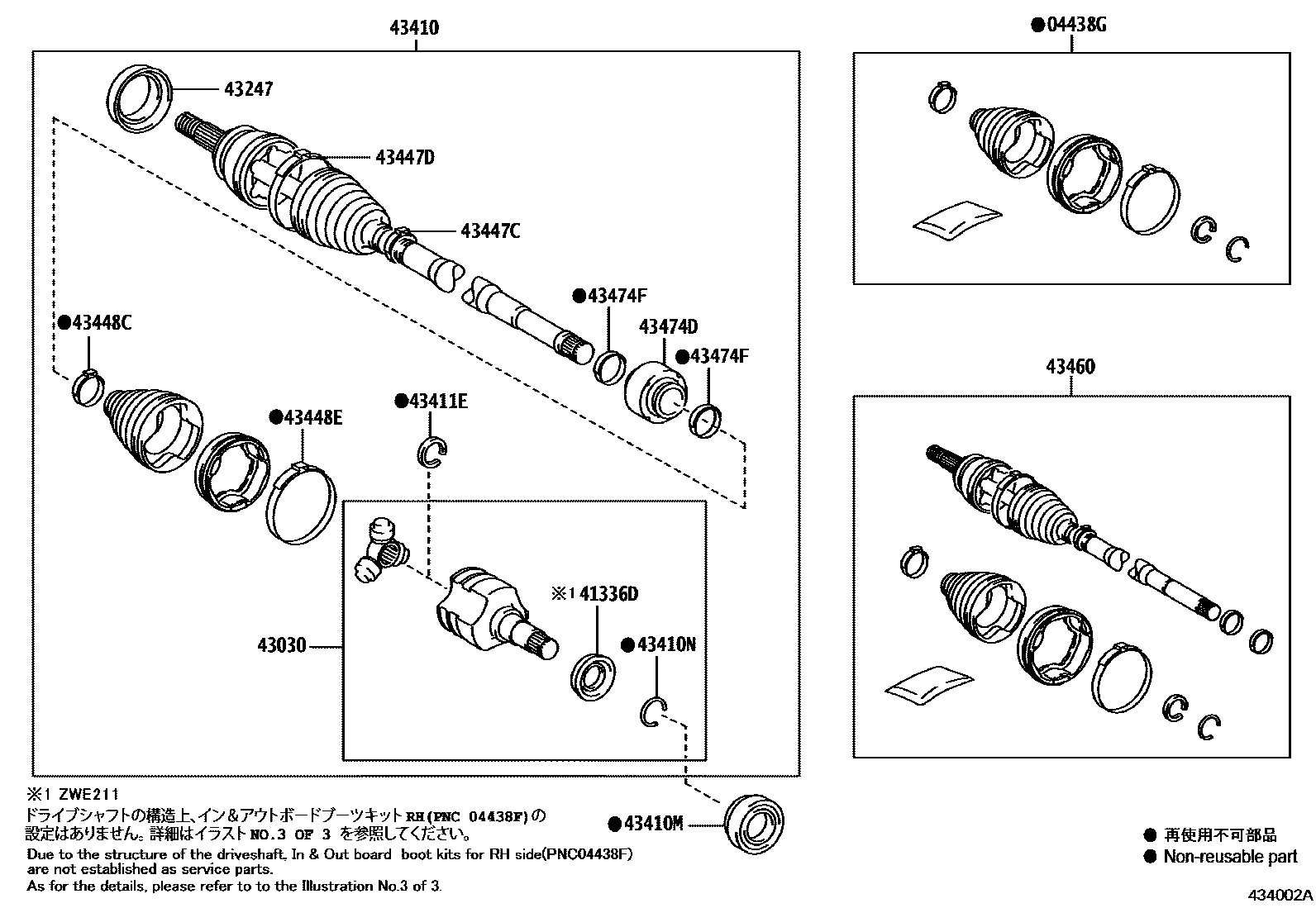

15 parts on this diagram · 4 diagrams in section
