PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-52010iNRE214201806

04376BEARING KIT, CENTER SUPPORT

main04376-52010iNRE214201806

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-10040iNRE214201806-202101

main37100-10041iNRE214202102

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-08197×8iNRE214201806

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90201-08097×8iNRE214201806

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444×2iNRE214201806

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081×2iNRE214201806

main90201-10083×2iNRE214201806

main90201-10084×2iNRE214201806

main90201-10085×2iNRE214201806

main90201-10123×2iNRE214201806

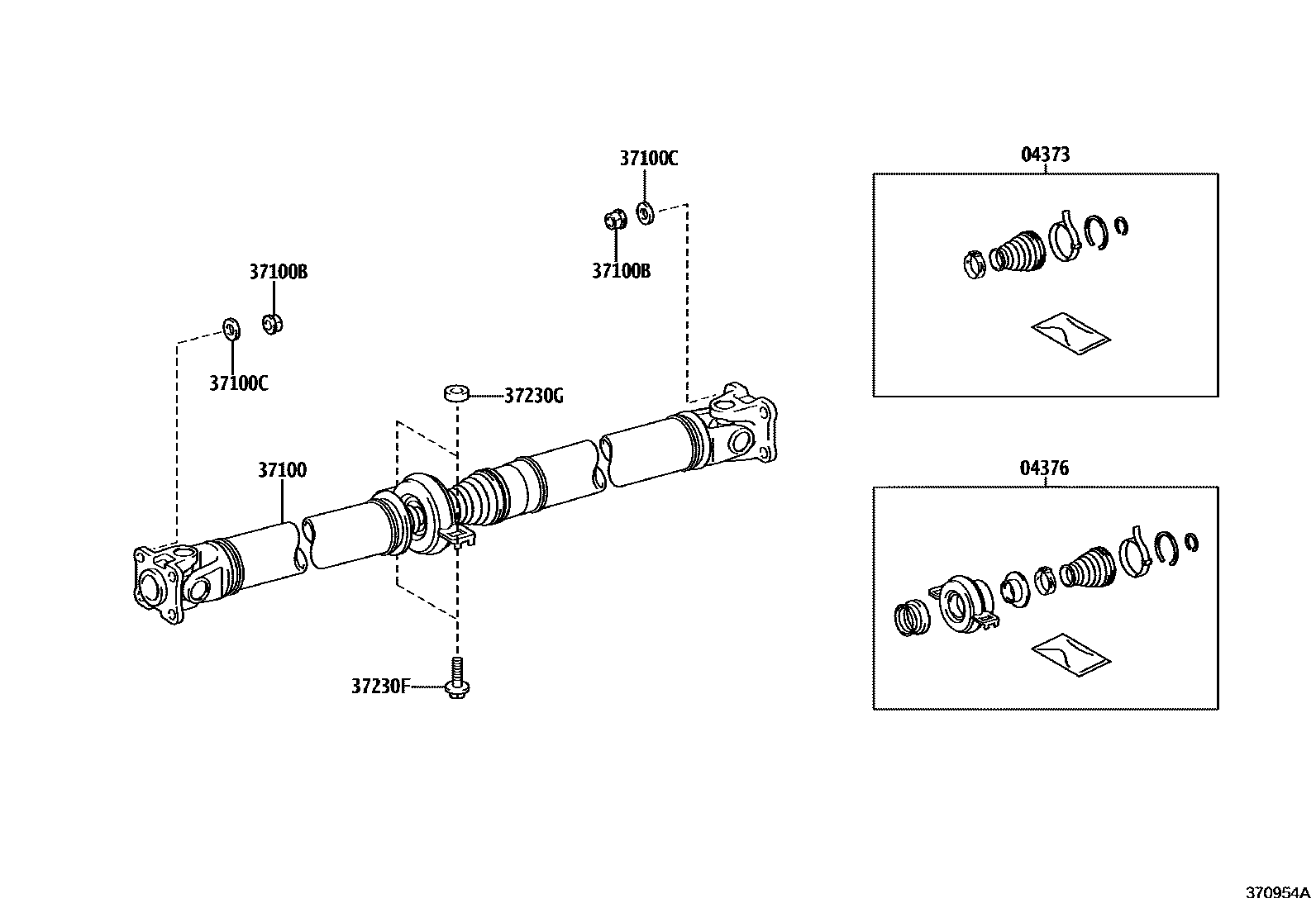

7 parts on this diagram · 1 diagram in section
