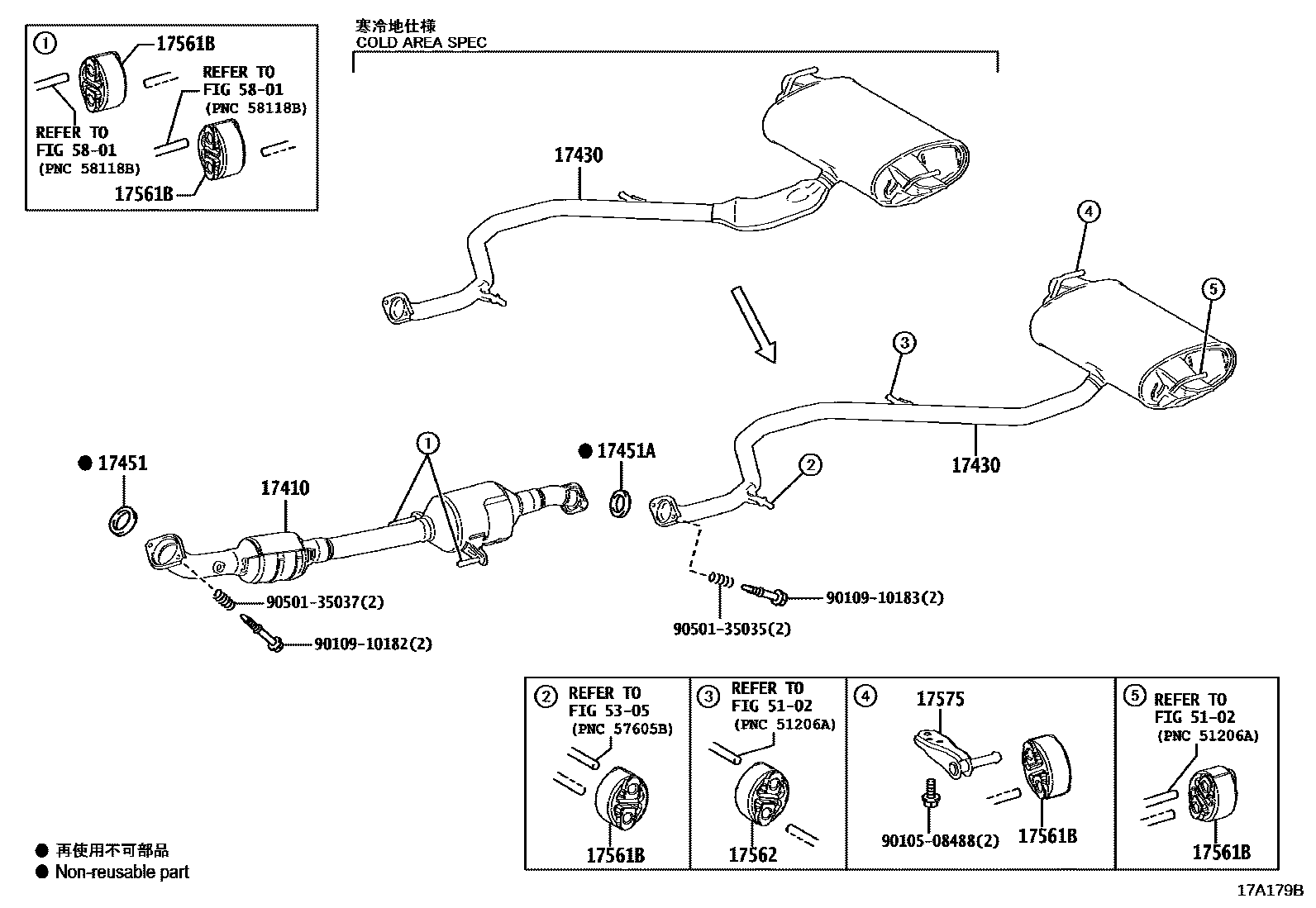

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-24680iM20AFKS..MZEA12202210-202505

main17410-37B30i2ZRFXE..ZWE211201806-202004

main17410-37B31i2ZRFXE..ZWE211202004-202005

main17410-37E50i2ZRFXE..ZWE219202210-202404

main17410-37G00i2ZRFXE..ZWE219202404

main17410-47330i8NRFTS..NRE214201806

main17410-47340i8NRFTS..NRE210201806

17430PIPE ASSY, EXHAUST, TAIL

main17430-47270iM20AFKS..MZEA12202210-202505

main17430-47280i8NRFTS..NRE214201806

main17430-37810supersedes 17430-37710i2ZRFXE..ZWE213201806

main17430-47180supersedes 17430-47270i8NRFTS..NRE210201806

17451GASKET, EXHAUST PIPE

main17451-24010i2ZRFXE..ZWE213202006

main17451-28040i2ZRFXE..ZWE211201806-202005

sub17451-28041

main90917-06089i8NRFTS..NRE214201806

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042i8NRFTS..NRE210201806

sub17451-23043

main17451-24020i2ZRFXE..ZWE219202210

main90917-06089i8NRFTS..NRE214201806

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22040×5i8NRFTS,2ZRFXE..NRE210,ZWE213201806

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-28010i2ZRFXE..ZWE211201806-202005

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-37030i2ZRFXE..ZWE211201806-202005

5102

5305

5801

9010508488

main90105-08488

9010910182

main90109-10182

9010910183

main90109-10183

9050135035

main90501-35035

9050135037

main90501-35037

15 parts on this diagram · 4 diagrams in section
