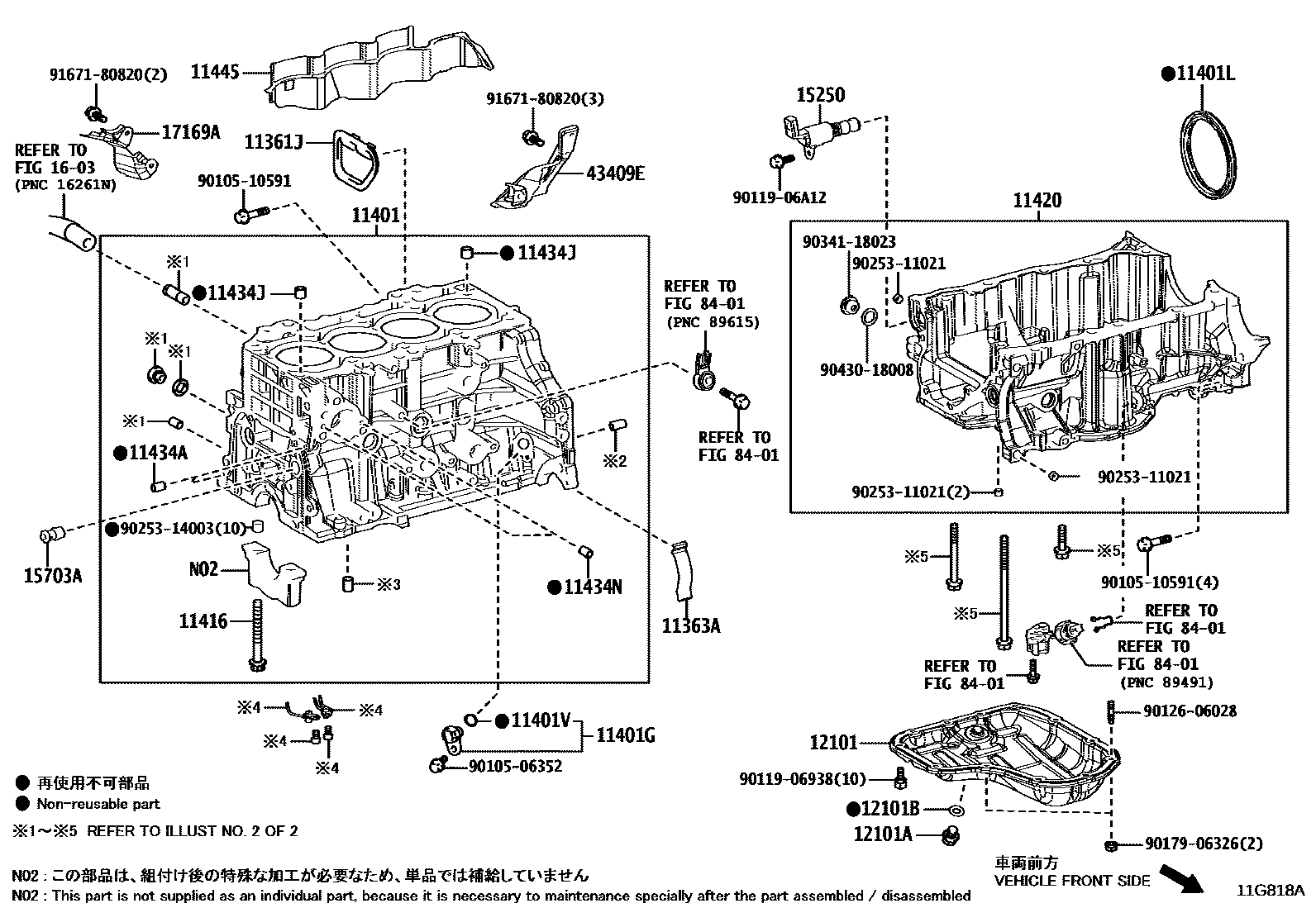

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
sub11410-39296
11401GSENSOR, CRANK POSITION
11401LSEAL, ENGINE REAR OIL
11401VO-RING, CRANK POSITION SENSOR
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11434PIN, STRAIGHT(FOR TIMING CHAIN COVER)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
15250VALVE ASSY, OIL PRESSURE CONTROL
15703AVALVE SUB-ASSY, OIL NOZZLE
1603
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
8401
9010506352
main90105-06352
9010510591
main90105-10591
9011906938
main90119-06938
9011906A12
main90119-06A12
9012606028
main90126-06028
9017906326
main90179-06326
9025311021
main90253-11021
9025314003
main90253-14003
9034118023
main90341-18023
9043018008
main90430-18008
9167180820
main91671-80820
33 parts on this diagram · 8 diagrams in section
