SHORT BLOCK ASSEMBLY

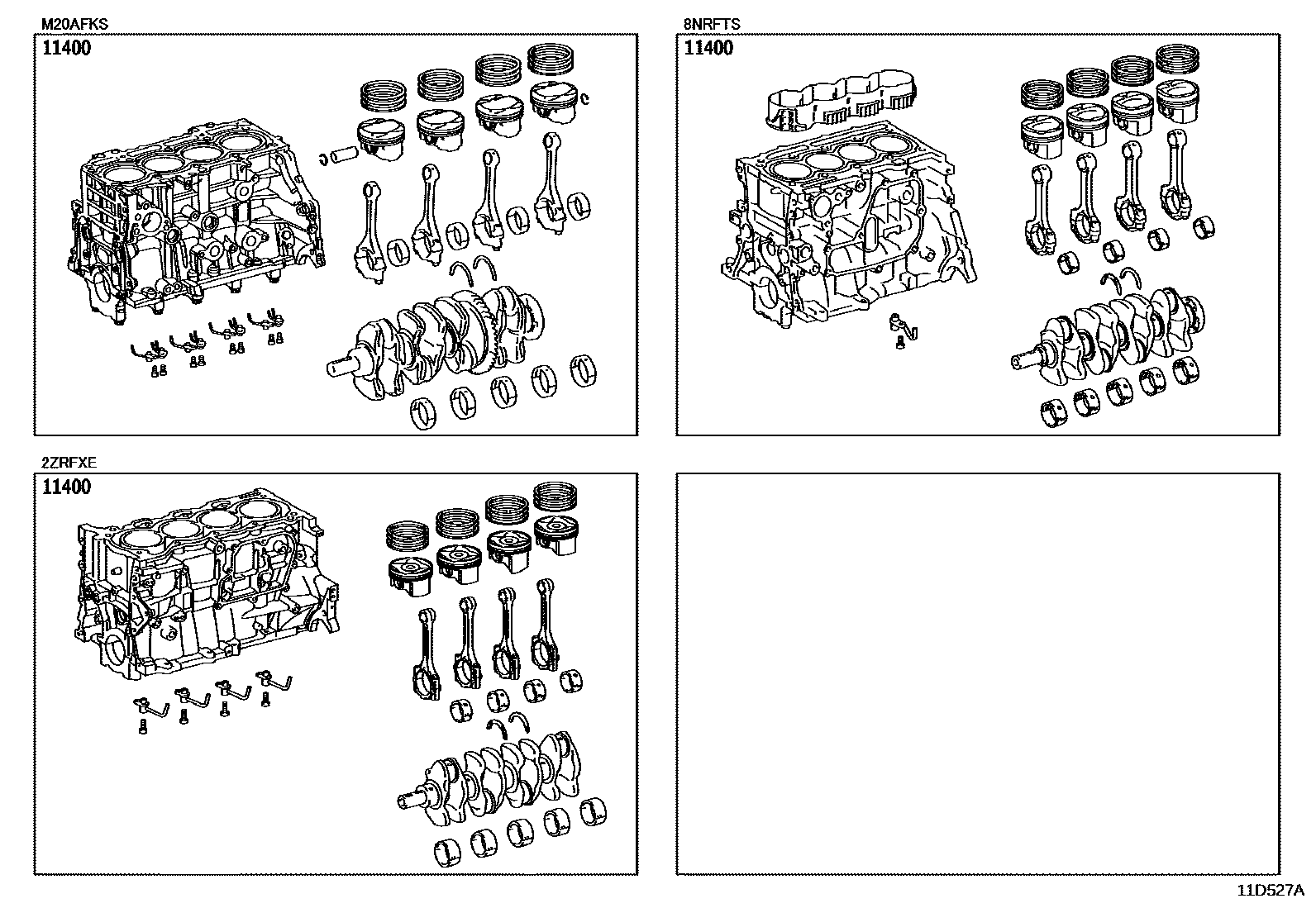

Parts diagram
11400BLOCK ASSY, SHORT
main11400-24030i202210-202505
main11400-37280i201806-202110
sub11400-37380
sub16278-37021
sub16281-37071
sub16281-37190
sub16295-37021
sub25601-37050
main11400-37370i202210
main11400-37380i202110
main11400-47230i201806

1 parts on this diagram · 1 diagram in section
