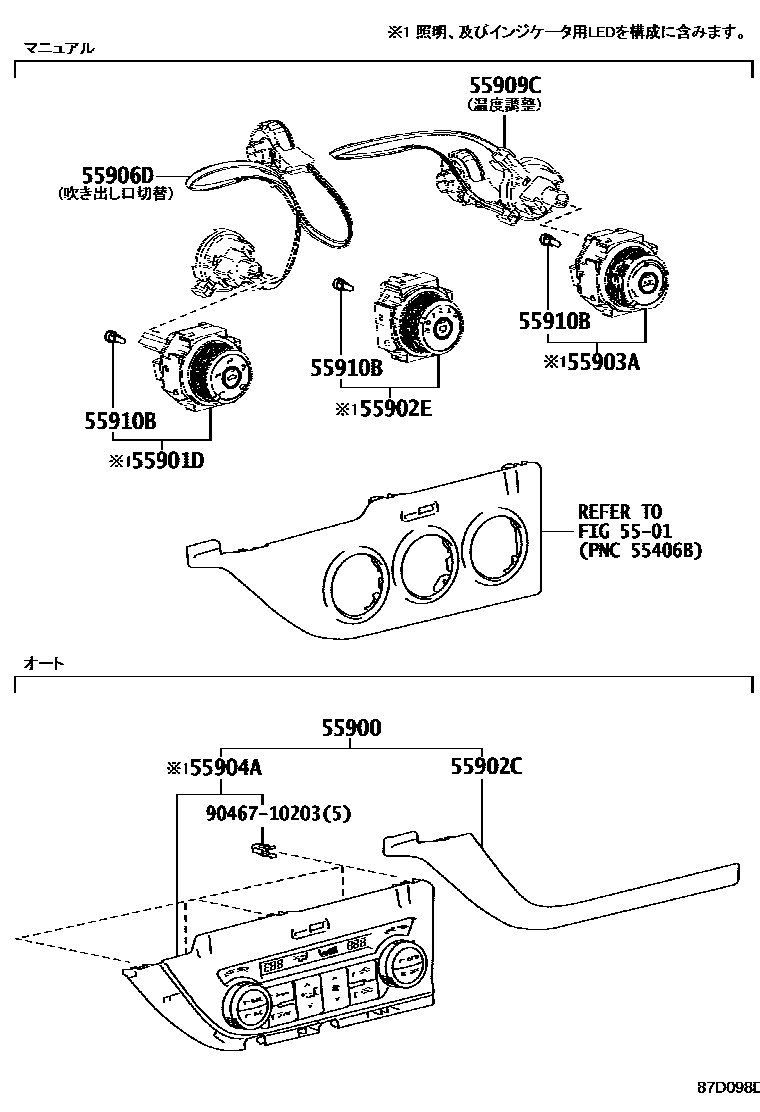

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501
55900CONTROL ASSY, AIR CONDITIONER
55901DCONTROL SUB-ASSY, HEATER, NO.1
55902CPANEL SUB-ASSY, AIR CONDITIONER
BLACK,TRIM0#,2#
55902ECONTROL SUB-ASSY, HEATER, NO.2
55903ACONTROL SUB-ASSY, HEATER, NO.3
55904AHOUSING SUB-ASSY, HEATER CONTROL
55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2
55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55910BBULB, HEATER CONTROL
9046710203
main90467-10203
11 parts on this diagram · 4 diagrams in section
