SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1����� 0005 1�������� 0006 1�������� 0007 1�������� �������� 0008 1�������� �������� 0009 1��� 0010 1������������ 0011 1������������ 0012 1������� 0013 1���,���,��� & �������

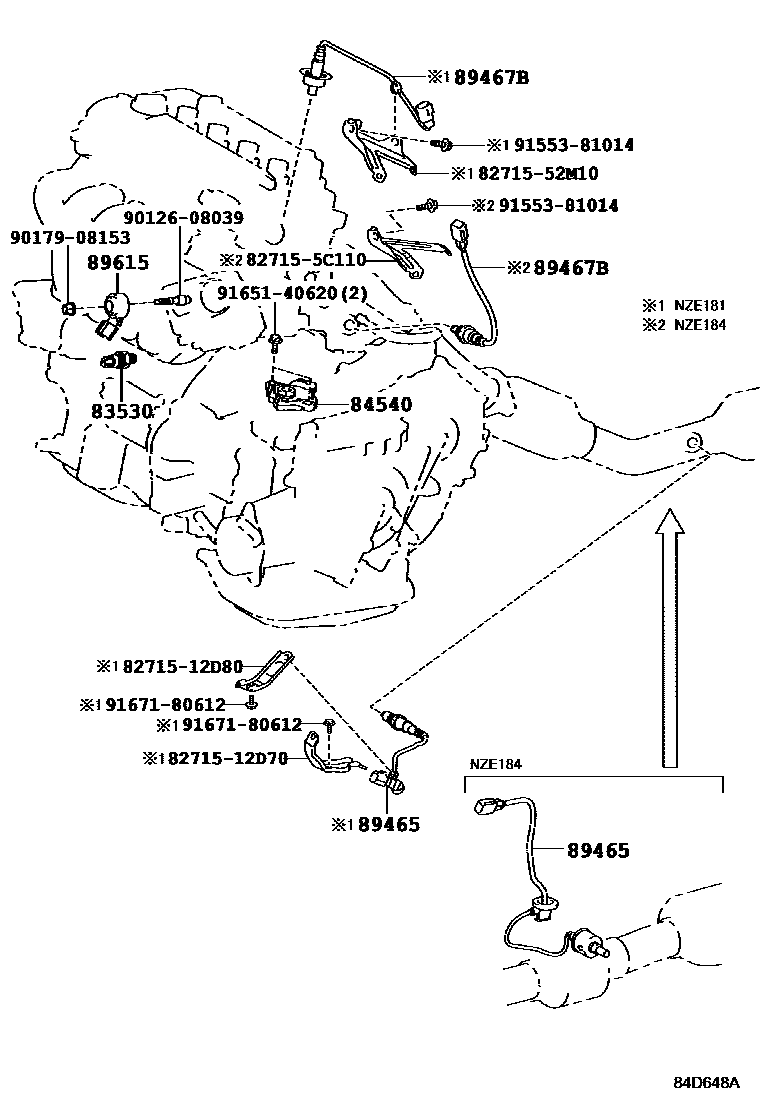

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZRE186201310-201402

sub83530-12060

main83530-12060iZRE186201503-201805

main83530-28020iNZE18#201208-201805

main83530-28020iZRE186201402-201503

main83530-60020iNZE18#201208-201805

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNRE185,NZE18#,ZRE186..CVT201208-201805

89465SENSOR, OXYGEN

main89465-12A40iZRE186201208-201503

main89465-12B00iNZE181201208-201503

main89465-12B20iNZE184201208-201503

main89465-12B80iNRE185201503

main89465-47080iZWE186201604

89467BSENSOR, AIR FUEL RATIO

main89467-12160iNZE181201208-201805

main89467-12270iNRE185201503-201805

main89467-30050iNZE184201208-201805

main89467-52060iZRE186,ZWE186201208-201805

89615SENSOR, KNOCK CONTROL

main89615-02020iZRE186201208-201503

main89615-20090iZRE186201208-201503

main89615-20090iNRE185,NZE18#,ZRE186,ZWE186201503

8271512D70BRACKET,WIRING HARNESS CLAMP

main82715-12D70

8271512D80BRACKET,WIRING HARNESS CLAMP

main82715-12D80

8271552M10BRACKET,WIRING HARNESS CLAMP

main82715-52M10

827155C110BRACKET,WIRING HARNESS CLAMP

main82715-5C110

9012608039

main90126-08039

9017908153

main90179-08153

9155381014

main91553-81014

9165140620

main91651-40620

9167180612

main91671-80612

14 parts on this diagram · 13 diagrams in section
