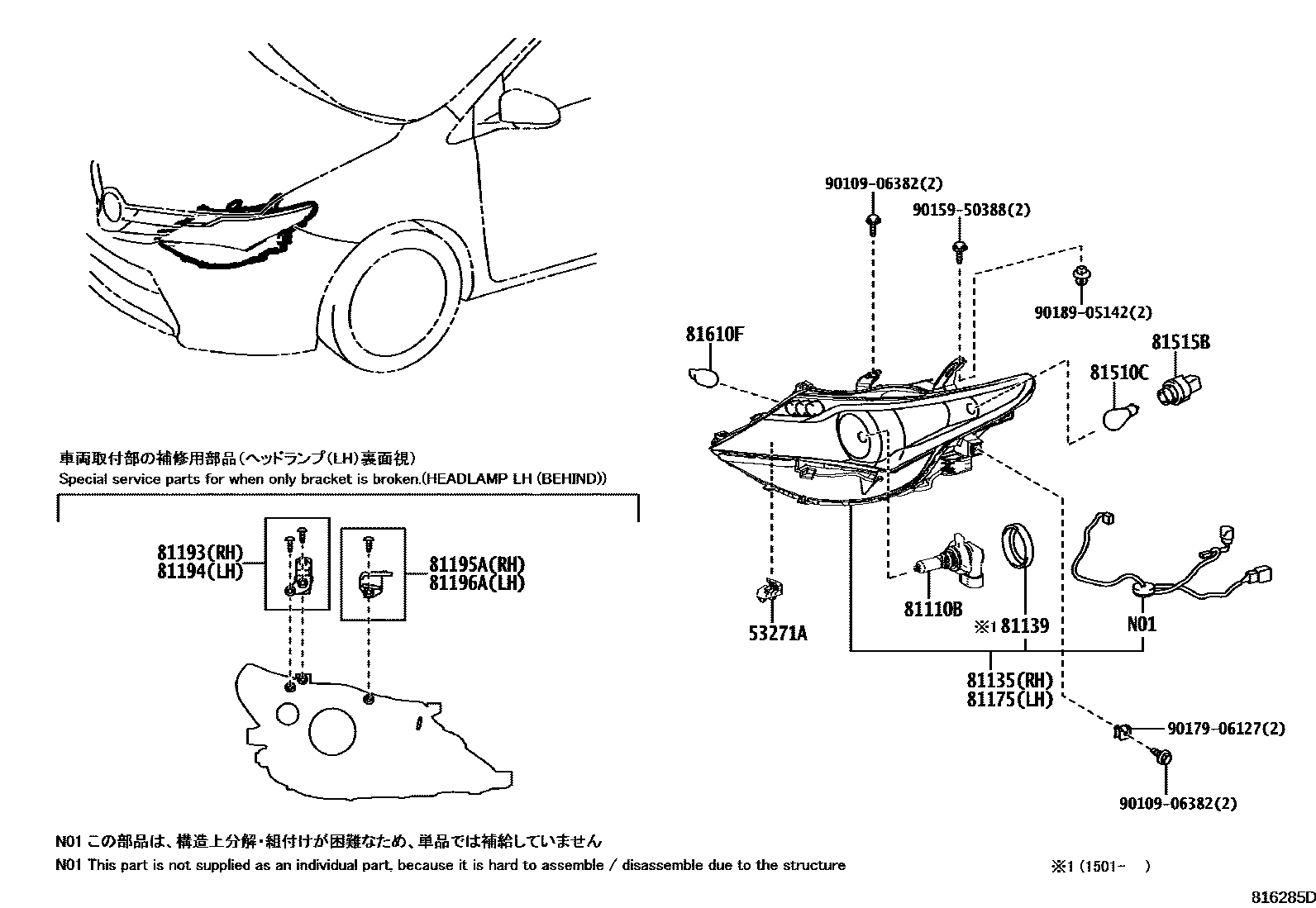

HEADLAMP

0001 1������������� 0002 1����������������� 0003 1����� �������� 0004 1LED��������

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010×2iNRE185,NZE18#,ZRE186,ZWE186201503

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13089×2iNZE18#,ZRE186..150X,RS201208-201503

81135UNIT ASSY, HEADLAMP, RH

main81130-12G00iNZE18#,ZRE186..150X,RS201208-201501

main81130-12G01iNZE18#,ZRE186..150X,RS201501-201503

main81130-12G80iNRE185,ZRE186,ZWE186..CVT201503

main81145-12G20supersedes 81130-12G30iZRE186..180201208-201503

sub81145-12G21

81139COVER, HEADLAMP SOCKET

main81135-12G00×2iNZE18#201503

81175UNIT ASSY, HEADLAMP, LH

main81170-12G00iNZE18#,ZRE186..150X,RS201208-201501

main81170-12G01iNZE18#,ZRE186..150X,RS201501-201503

main81170-12G30iNRE185,ZRE186,ZWE186..CVT201503

main81185-12G20supersedes 81170-12D60iZRE186..180201208-201503

sub81185-12G21

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12180iNRE185,NZE18#,ZRE186,ZWE186201503

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12180iNZE18#,ZRE186201208-201503

81195SCREW, HEADLAMP

main90168-40059×4iNRE185,NZE18#,ZRE186,ZWE186201503

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-12240iNRE185,NZE18#,ZRE186,ZWE186201503

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-12240iNZE18#,ZRE186201208-201503

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iNRE185,NZE18#,ZRE186,ZWE186201503

main90981-15020×2iNZE18#,ZRE186201208-201503

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050×2iNRE185,NZE18#,ZRE186,ZWE186201503

main81515-52570×2iNZE18#,ZRE186201208-201503

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNZE18#201503

9010906382

main90109-06382

9015950388

main90159-50388

9017906127

main90179-06127

9018905142

main90189-05142

17 parts on this diagram · 4 diagrams in section
