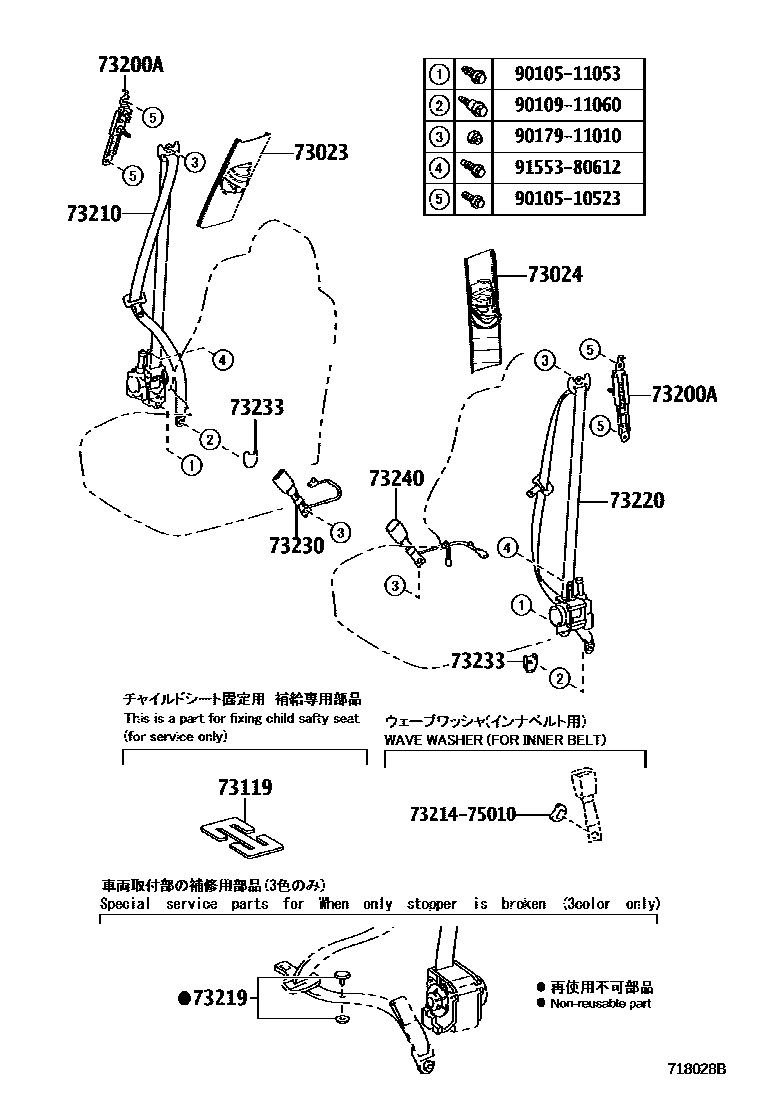

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM0#,2#
BLACK/LT.GRAY,TRIM2#,3#
BLACK/BLACK,TRIM0#
73219STOPPER, TONGUE PLATE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM0#,2#
BLACK/LT.GRAY,TRIM2#,3#
BLACK/BLACK,TRIM0#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
73233COVER, LAP BELT OUTER ANCHOR
DK.GRAY,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511053
main90105-11053
9010911060
main90109-11060
9017911010
main90179-11010
9155380612
main91553-80612
16 parts on this diagram · 2 diagrams in section
