DECK BOARD & DECK TRIM COVER
58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58332KBRACKET, LUGGAGE COMPARTMENT TRIM, NO.2
58410BBOARD ASSY, DECK
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58570AMAT ASSY, REAR FLOOR
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#
58731CCAP, REAR ABSORBER
DK.GRAY,TRIM2#
DK.GRAY,TRIM0#,2#
DK.GRAY,TRIM2#,3#
58732CCAP, REAR ABSORBER
DK.GRAY,TRIM2#
DK.GRAY,TRIM0#,2#
DK.GRAY,TRIM2#,3#
61624GBRACKET, DECK SIDE TRIM UPPER, RH
61627GBRACKET, DECK SIDE TRIM UPPER, LH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
64342ACLIP
64376SPACER, PACKAGE TRAY TRIM, NO.2
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#
64716ECLIP(FOR DECK TRIM REAR COVER)
64718ACOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
64726BCLIP, DECK REAR TRIM
64726HHOOK, DECK SIDE TRIM, NO.2
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK/DK.GRAY,TRIM0#,2#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
sub64740-12421
sub64740-12421
sub64740-12421
sub64740-12421
sub64740-12421
sub64740-12421
sub64740-12421
sub64740-12421
sub64740-12421
sub64740-12421
sub64740-12421
sub64740-12421
sub64740-12421
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64743ABOARD, DECK TRIM SIDE, LOWER RH
64744BOARD, DECK TRIM SIDE, LOWER LH
main64744-12020
64778DPROTECTOR, SPARE WHEEL
64995BOX, DECK FLOOR, RH
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
64997BOX, DECK FLOOR, LH
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
7403
81496AGUIDE, REAR COMBINATION LAMP
9011906840
main90119-06840
9017606036
main90176-06036
9046710161
main90467-10161
9167180616
main91671-80616
9167380616
main91673-80616
9324056022
main93240-56022

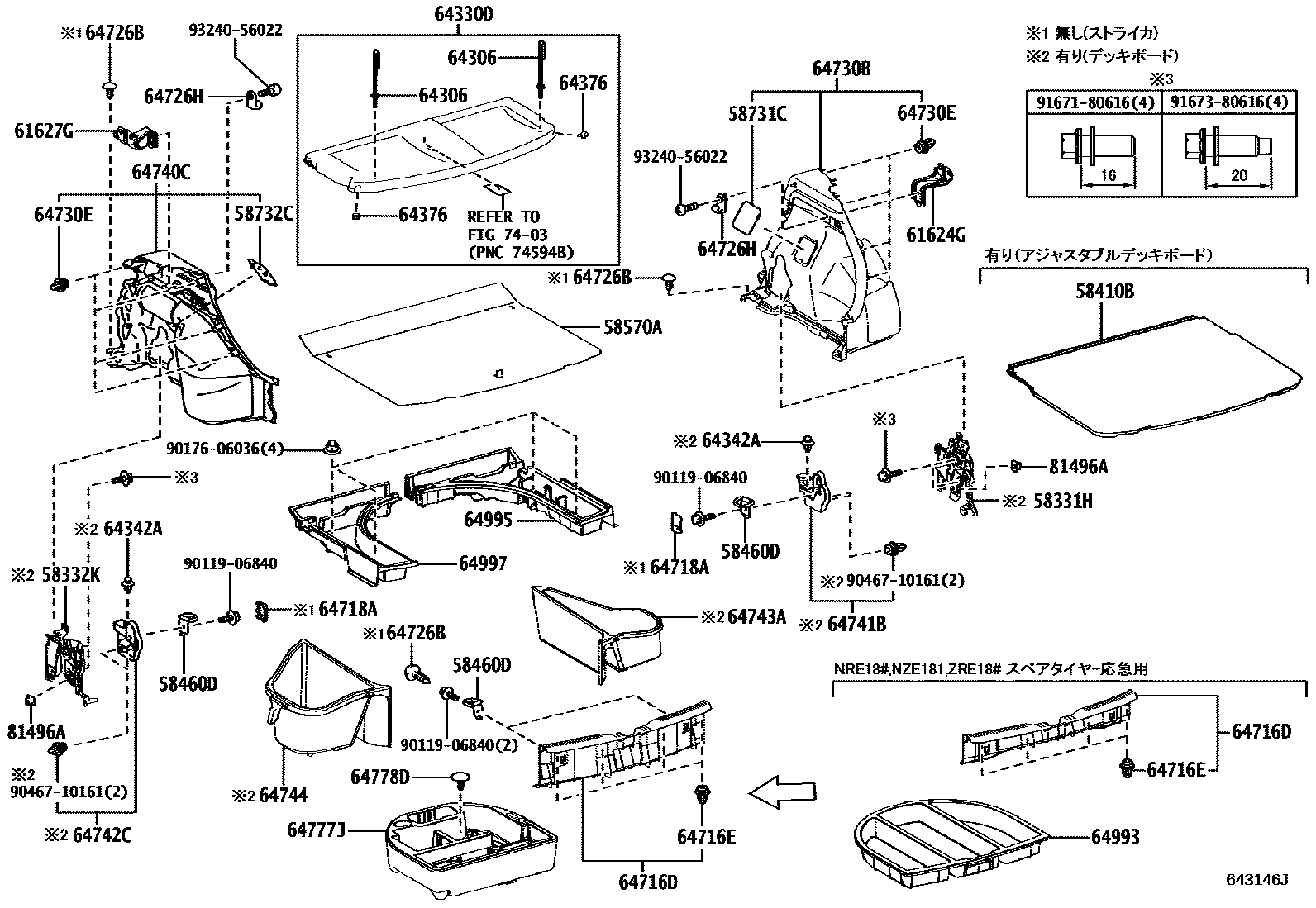

38 parts on this diagram · 2 diagrams in section
