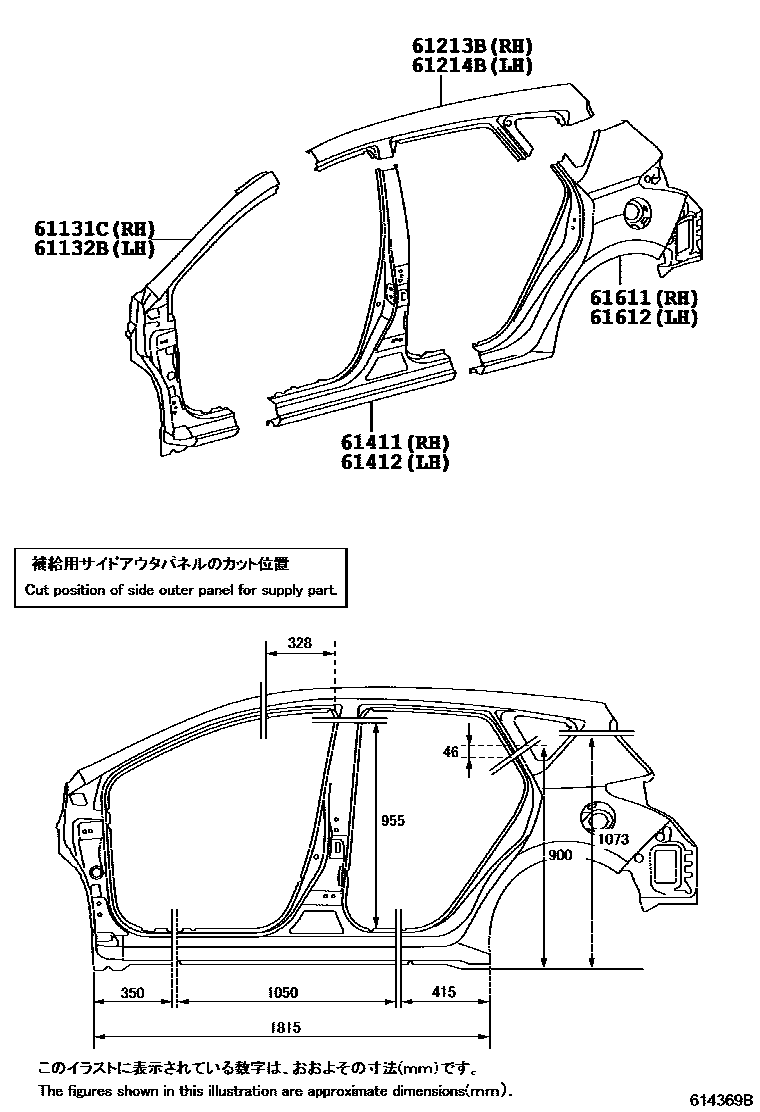

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-12840iNZE18#,ZRE186201208-201503

main61131-12850iZRE186..RS201503

61132BPILLAR, FRONT BODY, OUTER LH

main61132-12810iNZE18#,ZRE186201208-201503

main61132-12820iZRE186..RS201503

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-12050iNZE18#,ZRE186201208-201503

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-12050iNZE18#,ZRE186201208-201503

61411PANEL, ROCKER, OUTER RH

main61311-12500iNZE18#,ZRE186201208-201503

main61311-12510iZRE186..RS201503

61412PANEL, ROCKER, OUTER LH

main61312-12540iNZE18#,ZRE186201208-201503

main61312-12550iZRE186..RS201503

61611PANEL, QUARTER, RH

main61601-12B40iNZE18#,ZRE186201208-201503

main61601-12B60iZRE186..RS201503

61612PANEL, QUARTER, LH

main61602-12B40iNZE18#,ZRE186201208-201503

main61602-12B50iNRE185,NZE18#,ZRE186,ZWE186..CVT201503

main61602-12B60iZRE186..RS201503

8 parts on this diagram · 3 diagrams in section
