FRONT BUMPER & BUMPER STAY

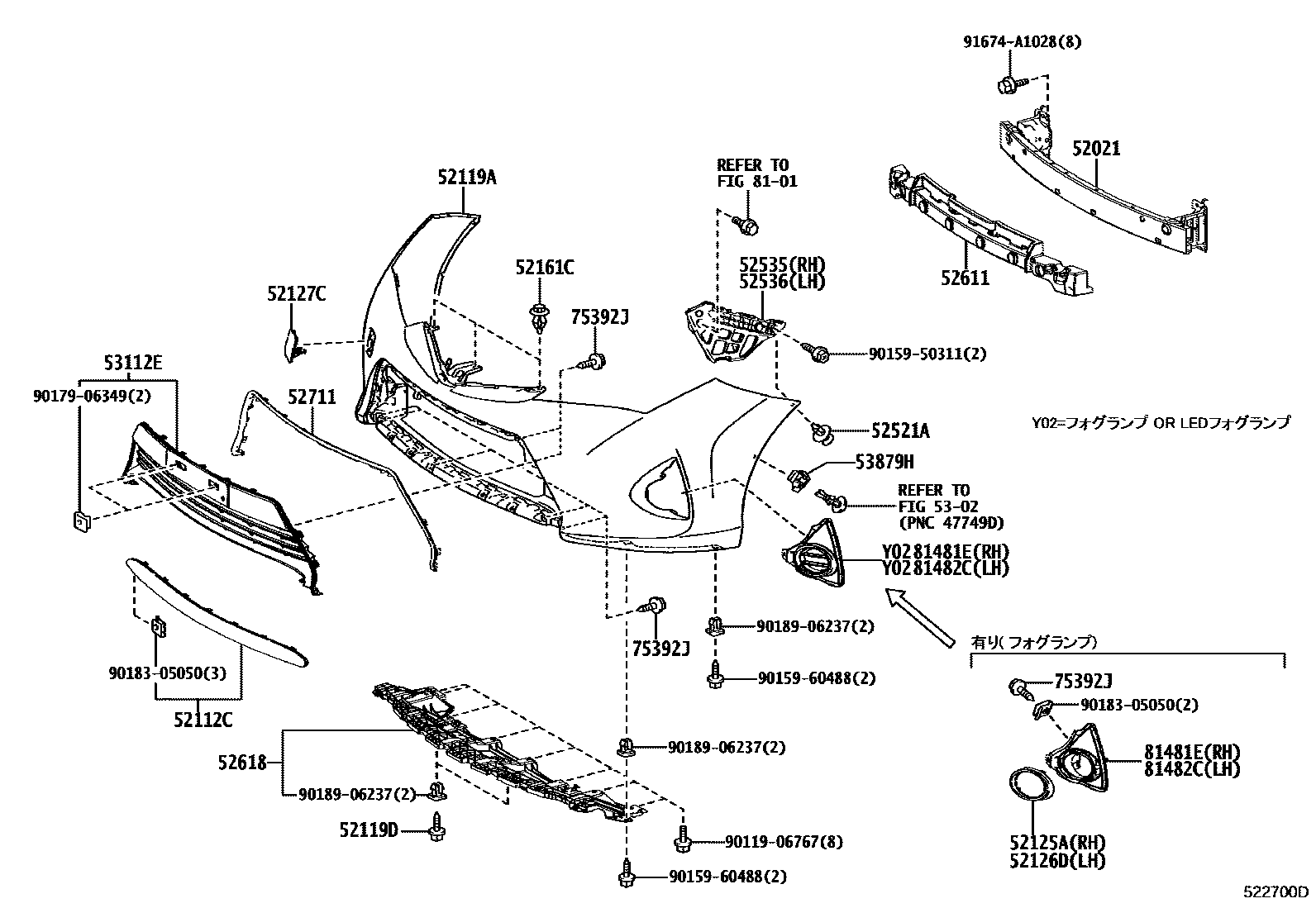

Parts diagram
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
main52021-12320i201208-201503
sub52021-12380
main52021-12380i201503-201805
52112CEXTENSION, FRONT BUMPER
main52112-12230i201208-201503
52119ACOVER, FRONT BUMPER
main52119-12C30-A1i201208-201405
sub52119-12977
main52119-12C30-A1i201208-201405
sub52119-12977
main52119-12C30-A1i201208-201405
WHITE PEARL CS.,070
sub52119-12977
main52119-12C30-B0i201208-201503
SILVER ME.,1F7
sub52119-12977
main52119-12C30-B0i201208-201405
sub52119-12977
main52119-12C30-B0i201208-201405
sub52119-12977
main52119-12C30-C0i201208-201503
BLACK MC.,209
sub52119-12977
main52119-12C30-C0i201208-201405
sub52119-12977
main52119-12C30-C0i201208-201405
sub52119-12977
main52119-12C30-D0i201208-201405
sub52119-12977
main52119-12C30-D0i201208-201503
RED M.M.,3R3
sub52119-12977
main52119-12C30-D0i201208-201405
sub52119-12977
main52119-12C30-D1i201405-201503
BLACKISH RED MC.,3R0
sub52119-12977
main52119-12C30-E0i201208-201405
sub52119-12977
main52119-12C30-E0i201208-201405
sub52119-12977
main52119-12C30-E0i201208-201503
AVANT-GARDE BRONZE ME.,4V8
sub52119-12977
main52119-12C30-E1i201208-201405
sub52119-12977
main52119-12C30-E1i201208-201503
ORANGE ME.,4R8
sub52119-12977
main52119-12C30-E1i201208-201405
sub52119-12977
main52119-12C30-J1i201208-201405
sub52119-12977
main52119-12C30-J1i201208-201503
BLUE ME.,8T7
sub52119-12977
main52119-12C30-J1i201208-201405
sub52119-12977
main52119-12E70-A1i201503-201510
sub52119-12F50
main52119-12E70-A1i201503-201510
WHITE PEARL CS.,070
sub52119-12F50
main52119-12E70-B0i201503-201510
SILVER ME.,1F7
sub52119-12F50
main52119-12E70-B0i201503-201510
sub52119-12F50
main52119-12E70-C0i201503-201510
BLACK MC.,209
sub52119-12F50
main52119-12E70-C0i201503-201510
sub52119-12F50
main52119-12E70-D0i201503-201510
RED M.M.,3R3
sub52119-12F50
main52119-12E70-D0i201503-201510
sub52119-12F50
main52119-12E70-E0i201503-201510
ORANGE ME.,4R8
sub52119-12F50
main52119-12E70-E0i201503-201510
sub52119-12F50
main52119-12E70-G0i201503-201510
CITRUS M.M.,6W2
sub52119-12F50
main52119-12E70-G0i201503-201510
sub52119-12F50
main52119-12E70-J1i201503-201510
sub52119-12F50
main52119-12E70-J1i201503-201510
BLUE ME.,8X7
sub52119-12F50
main52119-12E90-A1i201503-201510
WHITE PEARL CS.,070
sub52119-12F70
main52119-12E90-B0i201503-201510
SILVER ME.,1F7
sub52119-12F70
main52119-12E90-C0i201503-201510
BLACK MC.,209
sub52119-12F70
main52119-12E90-D0i201503-201510
RED M.M.,3R3
sub52119-12F70
main52119-12E90-E0i201503-201510
ORANGE ME.,4R8
sub52119-12F70
main52119-12E90-G0i201503-201510
CITRUS M.M.,6W2
sub52119-12F70
main52119-12E90-J1i201503-201510
BLUE ME.,8X7
sub52119-12F70
main52119-12F30-A1i201405-201503
WHITE PEARL CS.,070
sub52119-12977
main52119-12F50-A1i201503-201805
WHITE PEARL CS.,070
sub52119-12989
main52119-12F50-B0i201503-201805
SILVER ME.,1F7
sub52119-12989
main52119-12F50-C0i201503-201805
BLACK MC.,209
sub52119-12989
main52119-12F50-D0i201503-201805
RED M.M.,3R3
sub52119-12989
main52119-12F50-E0i201503-201805
ORANGE ME.,4R8
sub52119-12989
main52119-12F50-G0i201503-201805
CITRUS M.M.,6W2
sub52119-12989
main52119-12F50-J0i201503-201805
BLUE ME.,8X7
sub52119-12989
main52119-12F70-A1i201510-201805
WHITE PEARL CS.,070
sub52119-12991
main52119-12F70-B0i201510-201805
SILVER ME.,1F7
sub52119-12991
main52119-12F70-C0i201510-201805
BLACK MC.,209
sub52119-12991
main52119-12F70-D0i201510-201805
RED M.M.,3R3
sub52119-12991
main52119-12F70-E0i201510-201805
ORANGE ME.,4R8
sub52119-12991
main52119-12F70-G0i201510-201805
CITRUS M.M.,6W2
sub52119-12991
main52119-12F70-J0i201510-201805
BLUE ME.,8X7
sub52119-12991
52119DSCREW, NO.1
main90159-60488i201503-201805
52125ABRACKET, FOG LAMP MOUNTING, RH
main52125-12090i201503
52126DBRACKET, FOG LAMP MOUNTING, LH
main52126-12080i201503
52127CCOVER, FRONT BUMPER HOLE
main52127-12320-A1i201208-201405
sub52127-12910
main52127-12320-A1i201208-201405
WHITE PEARL CS.,070
sub52127-12910
main52127-12320-A1i201208-201405
sub52127-12910
main52127-12320-B0i201208-201503
SILVER ME.,1F7
sub52127-12910
main52127-12320-B0i201208-201405
sub52127-12910
main52127-12320-B0i201208-201405
sub52127-12910
main52127-12320-C0i201208-201405
sub52127-12910
main52127-12320-C0i201208-201503
BLACK MC.,209
sub52127-12910
main52127-12320-C0i201208-201405
sub52127-12910
main52127-12320-D0i201208-201503
RED M.M.,3R3
sub52127-12910
main52127-12320-D0i201208-201405
sub52127-12910
main52127-12320-D0i201208-201405
sub52127-12910
main52127-12320-D1i201405-201503
BLACKISH RED MC.,3R0
sub52127-12910
main52127-12320-E0i201208-201503
AVANT-GARDE BRONZE ME.,4V8
sub52127-12910
main52127-12320-E0i201208-201405
sub52127-12910
main52127-12320-E0i201208-201405
sub52127-12910
main52127-12320-E1i201208-201503
ORANGE ME.,4R8
sub52127-12910
main52127-12320-E1i201208-201405
sub52127-12910
main52127-12320-E1i201208-201405
sub52127-12910
main52127-12320-J1i201208-201405
sub52127-12910
main52127-12320-J1i201208-201503
BLUE ME.,8T7
sub52127-12910
main52127-12320-J1i201208-201405
sub52127-12910
main52127-12350-A1i201503-201805
WHITE PEARL CS.,070
sub52127-12912
main52127-12350-B0i201503-201805
SILVER ME.,1F7
sub52127-12912
main52127-12350-C0i201503-201805
BLACK MC.,209
sub52127-12912
main52127-12350-D0i201503-201805
RED M.M.,3R3
sub52127-12912
main52127-12350-E0i201503-201805
ORANGE ME.,4R8
sub52127-12912
main52127-12350-G0i201503-201805
CITRUS M.M.,6W2
sub52127-12912
main52127-12350-J1i201503-201805
BLUE ME.,8X7
sub52127-12912
main52127-12370-A1i201405-201503
WHITE PEARL CS.,070
sub52127-12910
52161CPIECE, FRONT BUMPER
main52161-16010i201208-201805
52521ACLIP(FOR FRONT BUMPER RETAINER)
main90467-05170i201208-201503
52535RETAINER, FRONT BUMPER SIDE, RH
main52535-12130i201208-201503
52536RETAINER, FRONT BUMPER SIDE, LH
main52536-12130i201208-201503
52611ABSORBER, FRONT BUMPER ENERGY
main52611-12330i201208-201503
main52611-12360i201503
52618ABSORBER, FRONT BUMPER, LOWER
main52618-12030i201208-201503
52711MOULDING, FRONT BUMPER
main52711-12290i201208-201503
main52711-12320i201503
5302
53112EGRILLE, RADIATOR, LOWER NO.1
main53112-12330i201208-201503
main53112-12380i201503
53879HRETAINER, FRONT FENDER LINER
main53879-50020i201307-201503
main53879-58010i201208-201307
75392JRETAINER, OUTSIDE MOULDING
main75392-42030i201208-201503
main75392-42030i201208-201503
8101
81481ECOVER, FOG LAMP, RH
main81481-12250i201208-201503
main81481-12320i201503
main81481-12320i201503
81482CCOVER, FOG LAMP, LH
main81482-12190i201208-201503
main81482-12230i201503
main81482-12230i201503
9011906767
main90119-06767
9015950311
main90159-50311
9015960488
main90159-60488
9017906349
main90179-06349
9018305050
main90183-05050
9018906237
main90189-06237
91674A1028
main91674-A1028

28 parts on this diagram · 3 diagrams in section
