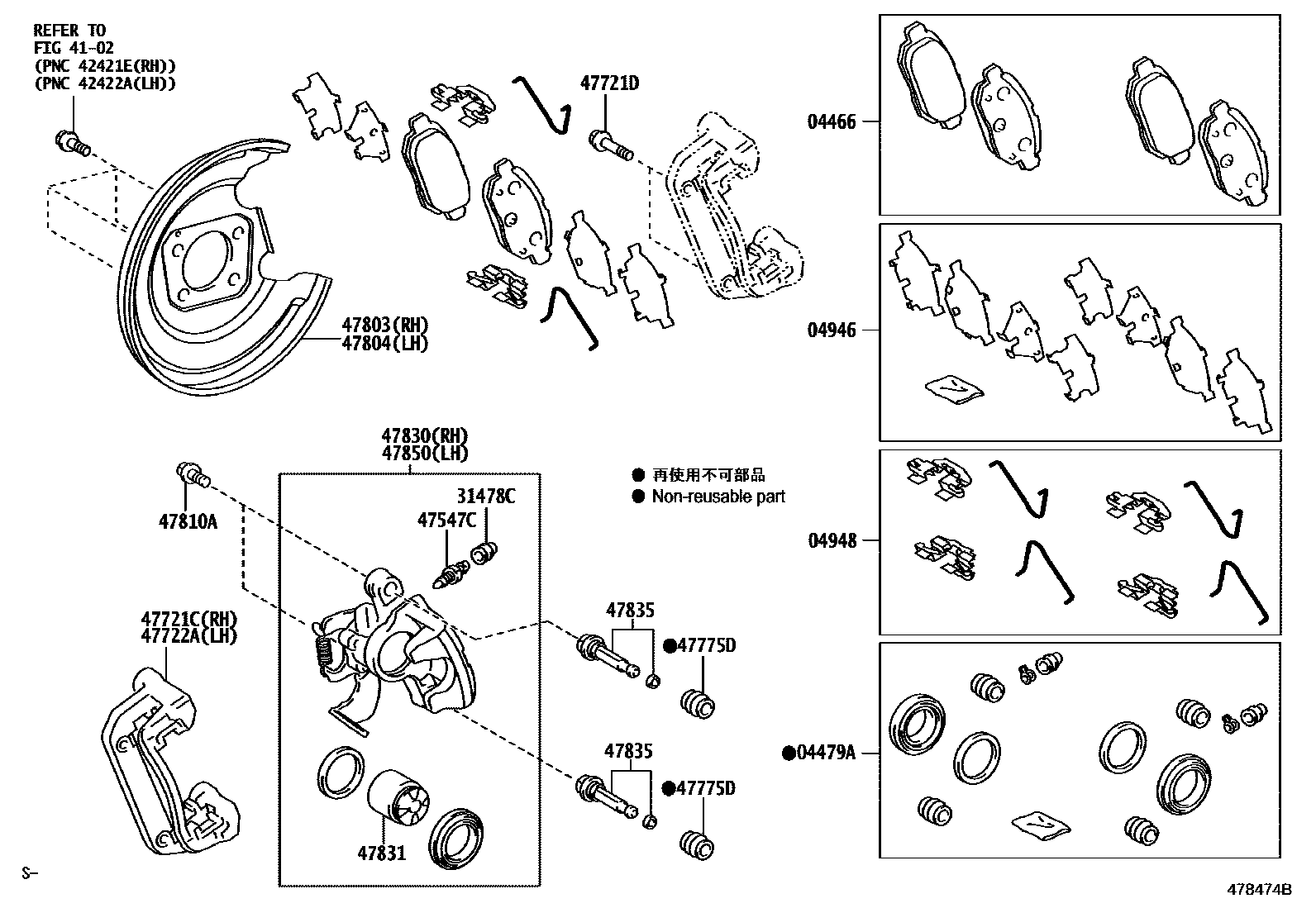

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-12150iNZE184,ZRE186201208-201503

main04466-47080iNZE181201208-201503

main04466-76012iZWE186201604

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230iNRE185,NZE184,ZRE186,ZWE186201208-201503

main04479-52170iNZE181201208-201503

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12110iNRE185,NZE184,ZRE186201208-201503

main04946-47070iNZE181,ZWE186201208-201503

04948FITTING KIT, DISC BRAKE, REAR

main04948-12030iNRE185,NZE184,ZRE186201208-201503

main04948-47010iNZE181201208-201503

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iNRE185,NZE18#,ZRE186,ZWE186201208-201503

4102

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iNZE18#,ZRE186201208-201503

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12150iNRE185,NZE184,ZRE186,ZWE186201208-201503

main47821-12151iNZE181201208-201503

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404iNZE181201208-201805

main91552-C1025iNZE184,ZRE186201208-201805

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12150iNZE184,ZRE186201208-201503

main47821-12151iNZE181201208-201503

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iNZE18#,ZRE186201208-201503

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-12071iNZE181201208-201805

main47881-12090iNRE185,NZE184,ZRE186,ZWE186201208-201805

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-12071iNZE181201208-201805

main47882-12090iNZE184,ZRE186201208-201805

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102iNZE18#,ZRE186201208-201503

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12160iNZE184,ZRE186201208-201503

sub47830-12260

main47830-12250iNZE181201208-201503

47831PISTON, REAR DISC BRAKE

main47831-52050iNZE184,ZRE186201208-201503

main47831-52090iNZE181201208-201503

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150iNZE18#,ZRE186201208-201503

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12160iNZE184,ZRE186201208-201503

sub47850-12260

main47850-12250iNZE181201208-201503

18 parts on this diagram · 2 diagrams in section
