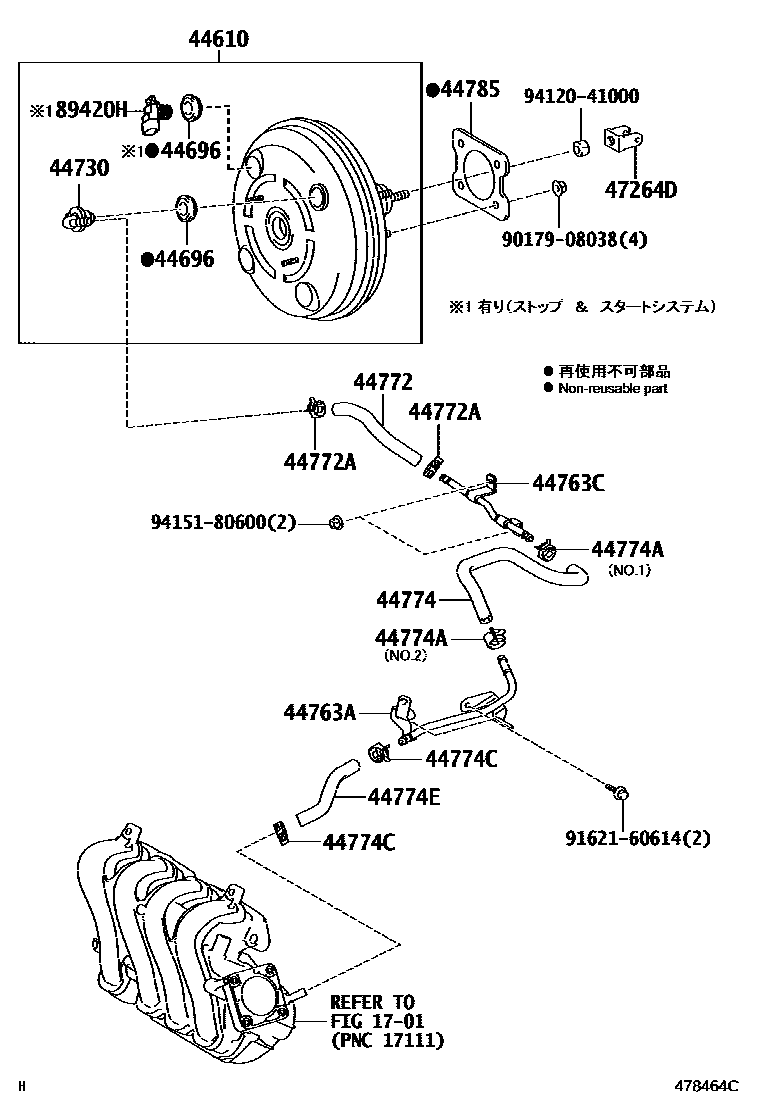

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1701

44610BOOSTER ASSY, BRAKE

main44610-09A20iZRE186..RS201208-201503

main44610-09C70iZRE186..RS201503

main44610-12J30iNZE18#201208-201503

main44610-12J60iZRE186..180201208-201503

main44610-12M00iNZE18#201503

main44610-12M10iNRE185201503

main44610-12M20iZRE186..180201503

main44610-12K50iNZE181201208-201503

main44610-12L90iNZE181201503

44696GROMMET, CHECK VALVE

main90480-24015iZRE186..RS201503-201805

main90480-24439iNZE18#201503-201805

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iZRE186..RS201208-201503

main44730-09070iZRE186..RS201503

main44730-14050iNRE185201503-201710

main44730-20170iNZE18#,ZRE186..CVT201208-201503

main44730-52010iNZE181201711

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12560iNRE185201503

main44763-52030iNZE18#201208-201503

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12420iNZE18#201503

main44763-12440iZRE186201208-201503

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12600iNZE18#,ZRE186201208-201503

main44772-12770iNRE185201503-201805

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014×2iNZE18#,ZRE186201403-201503

main96133-41500×2iNZE18#,ZRE186201208-201403

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12601iNZE18#201208-201503

main44774-12790iZRE186201208-201212

main44774-12820iZRE186201212-201503

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014×2iNZE18#,ZRE186201403-201503

main96133-41500iNZE18#,ZRE186201208-201403

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iNZE18#201208-201501

main96136-41801×2iNZE18#201502-201503

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-52070iNZE18#201208-201503

44785GASKET, BRAKE BOOSTER

main44785-12040iNZE18#,ZRE186201208-201503

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-68010iNZE18#,ZRE186..CVT201208-201503

89420HSENSOR ASSY, VACUUM

main89421-52020iNRE185201503-201805

9017908038

main90179-08038

9162160614

main91621-60614

9412041000

main94120-41000

9415180600

main94151-80600

19 parts on this diagram · 4 diagrams in section
