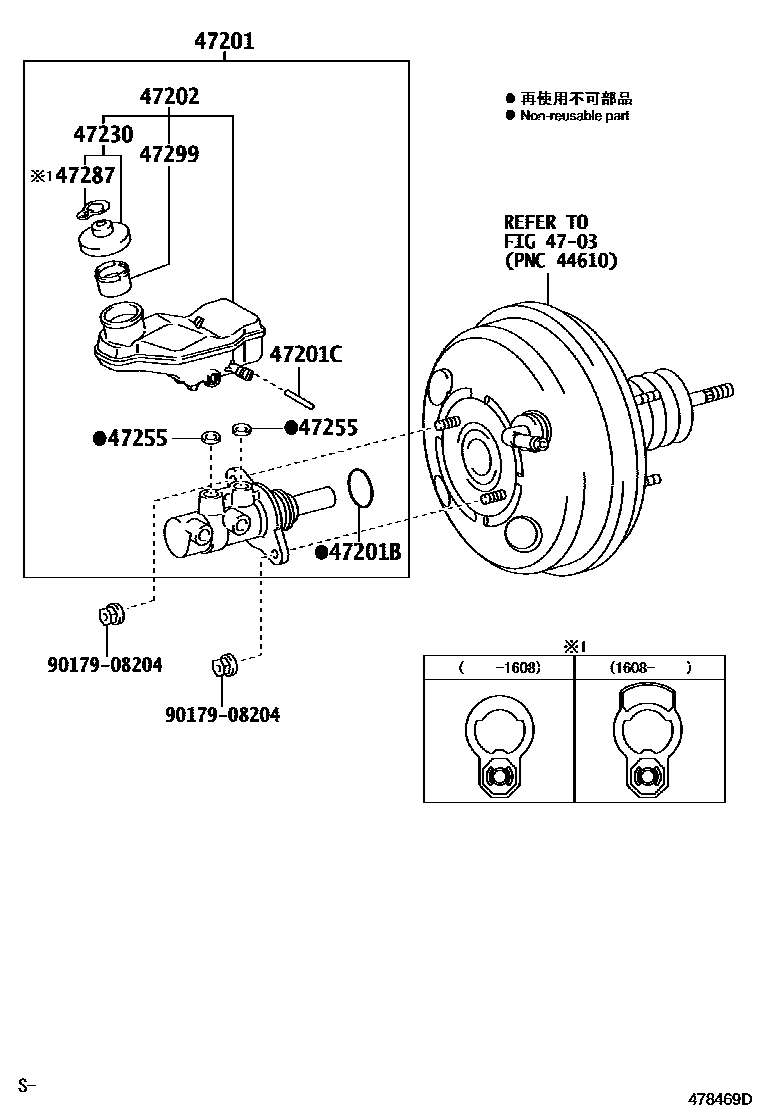

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09700iZRE186..RS201208-201503

main47201-12B72iNZE18#,ZRE186..CVT201208-201503

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNZE18#,ZRE186..CVT201208-201503

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNZE18#,ZRE186..CVT201208-201503

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09170iZRE186..RS201208-201503

main47220-12190iNZE18#,ZRE186..CVT201208-201503

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02220iZRE186..RS201208-201503

main47230-20140iNRE185,NZE18#,ZRE186..CVT201208-201503

main47230-47090iZWE186201612

main47230-58010iZWE186201604-201612

sub47230-11010

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iZRE186..RS201208-201503

main90029-48001iNZE18#,ZRE186..CVT201208-201503

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iNRE185,NZE18#,ZRE186..CVT201608

main47287-20010iNZE18#,ZRE186..CVT201208-201608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iZRE186..RS201208-201503

main47299-20060iNZE18#,ZRE186..CVT201208-201503

9017908204

main90179-08204

10 parts on this diagram · 3 diagrams in section
