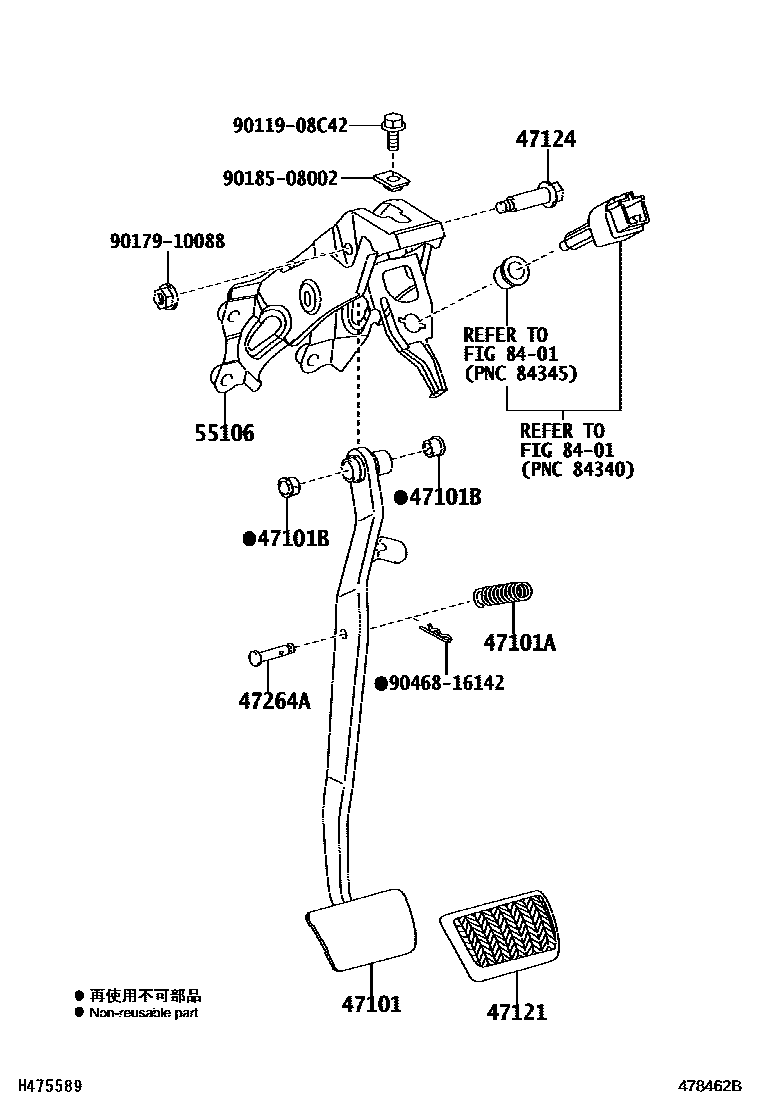

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-12710iZRE186..RS201208-201503

main47101-12720iNRE185,NZE18#,ZRE186..CVT201208-201503

main47101-12730iZWE186201604

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14050iZWE186201604

main90507-15007iNZE18#,ZRE186201208-201503

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNZE18#,ZRE186201208-201503

47121PAD, BRAKE PEDAL

main31321-42010iZRE186..RS201208-201503

main47121-42010iNRE185,NZE18#,ZRE186,ZWE186..CVT201208-201503

47124SHAFT, BRAKE PEDAL

main47124-47010iZWE186201604

main90109-10174iNRE185,NZE18#,ZRE186201208-201503

47264APIN(FOR PUSH ROD)

main47148-47020iZWE186201604

main90249-08256iNZE18#,ZRE186201208-201503

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12680iNZE18#,ZRE186201208-201503

main55106-12770iZWE186201604

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

12 parts on this diagram · 2 diagrams in section
