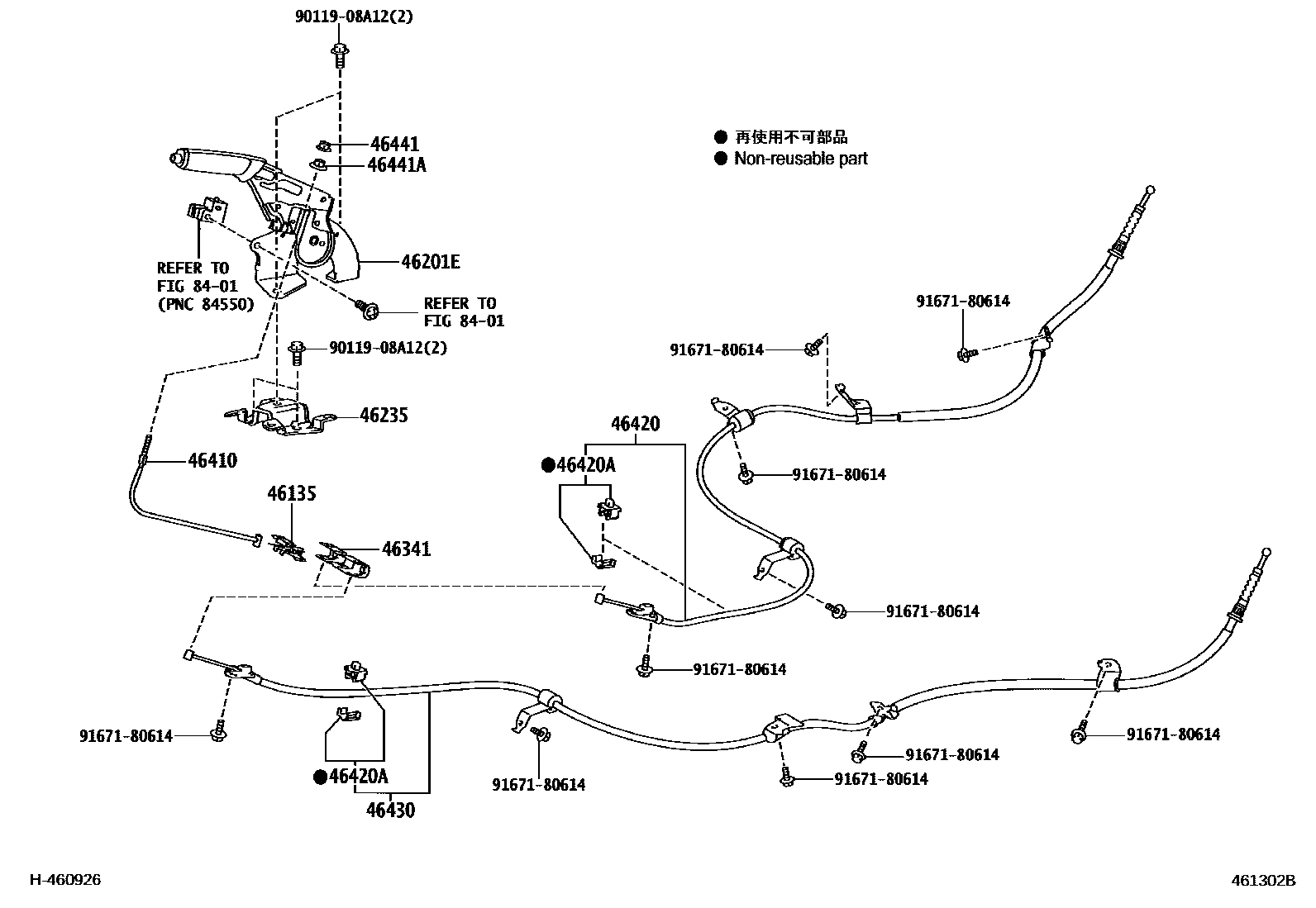

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iNZE18#,ZRE186201208-201503

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12380-B2iNRE185,NZE181,ZRE186,ZWE186201503-201805

SATIN CHROME

main46201-12380-C0iNZE181,ZRE186..CVT201208-201503

BLACK,TRIM2#

main46201-12380-C0iNZE181,ZRE186..CVT201208-201503

BLACK,TRIM0#,2#

main46201-12520-B0iNZE184201503-201805

SATIN CHROME

main46201-12520-C0iNZE184201208-201503

BLACK,TRIM0#,2#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-12010iNZE181,ZRE186201208-201503

main46235-12030iNZE184201208-201503

46341EQUALIZER, PARKING BRAKE

main46341-12040iNZE18#,ZRE186201208-201503

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12320iNZE181,ZRE186201208-201503

main46410-12400iNZE184201208-201503

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0W110iZWE186201604

main46420-12690iZRE186201208-201503

main46420-12810iNZE181201208-201503

main46420-12820iNZE184201208-201503

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-12030iNZE181,ZRE186201208-201503

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0W110iZWE186201604

main46430-12660iZRE186201208-201503

main46430-12700iNZE181201208-201503

main46430-12710iNZE184201208-201503

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iNZE18#,ZRE186201208-201503

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iNZE18#,ZRE186201208-201503

8401

9011908A12

main90119-08A12

9167180614

main91671-80614

13 parts on this diagram · 4 diagrams in section
