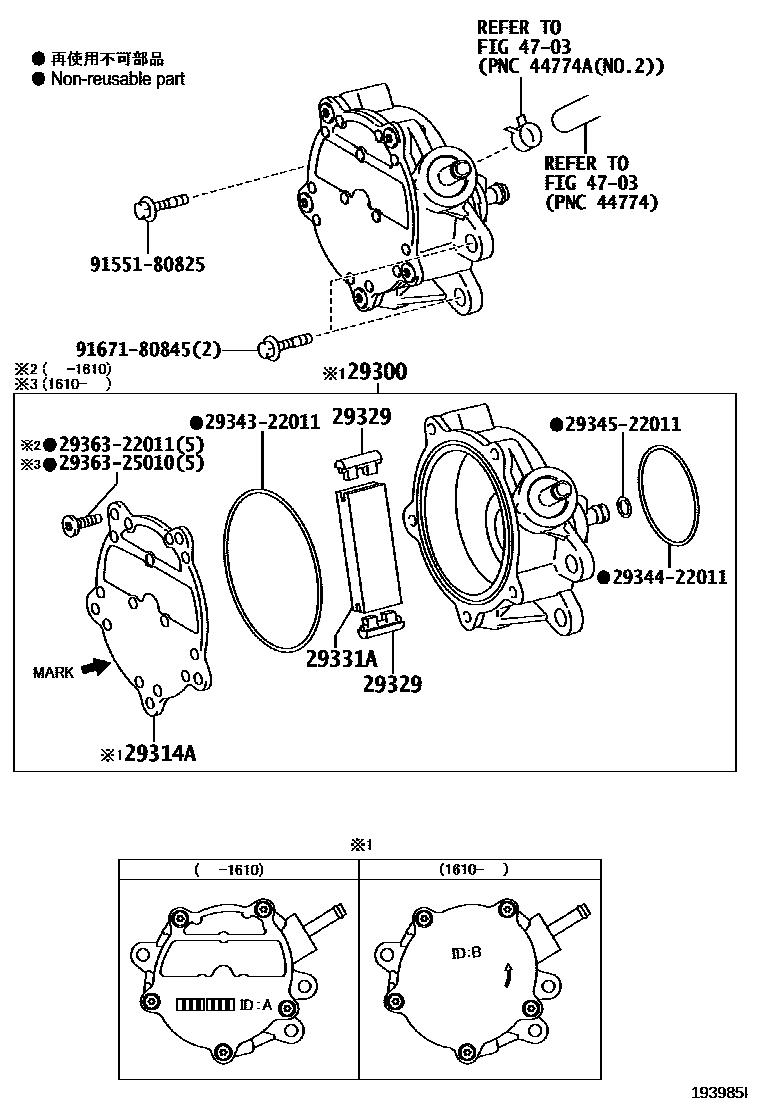

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-37010i2ZRFAE..ZRE186201208-201508

main29300-37010i2ZRFAE..ZRE186201508-201609

main29300-37011i2ZRFAE..ZRE186201610

main29300-47040i8NRFTS..NRE185201503-201802

main29300-47050i8NRFTS..NRE185201802

29314ACOVER, END

main29314-37010i2ZRFAE..ZRE186201208-201508

main29314-37010i2ZRFAE..ZRE186201508-201610

main29314-37011i2ZRFAE..ZRE186201610

main29314-47040i8NRFTS..NRE185201503

29329CAP, VACUUM PUMP VANE

main29329-37010i2ZRFAE..ZRE186201208-201503

29331AVANE, VACUUM PUMP

main29331-37010i2ZRFAE..ZRE186201208-201503

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2934322011RING, O VACUUM PUMP, NO.1

main29343-22011

2934422011RING, O VACUUM PUMP, NO.2

main29344-22011

2934522011RING, O VACUUM PUMP, NO.3

main29345-22011

2936322011SCREW, HOLLOW VACUUM PUMP

main29363-22011

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9155180825

main91551-80825

9167180845

main91671-80845

12 parts on this diagram · 2 diagrams in section
