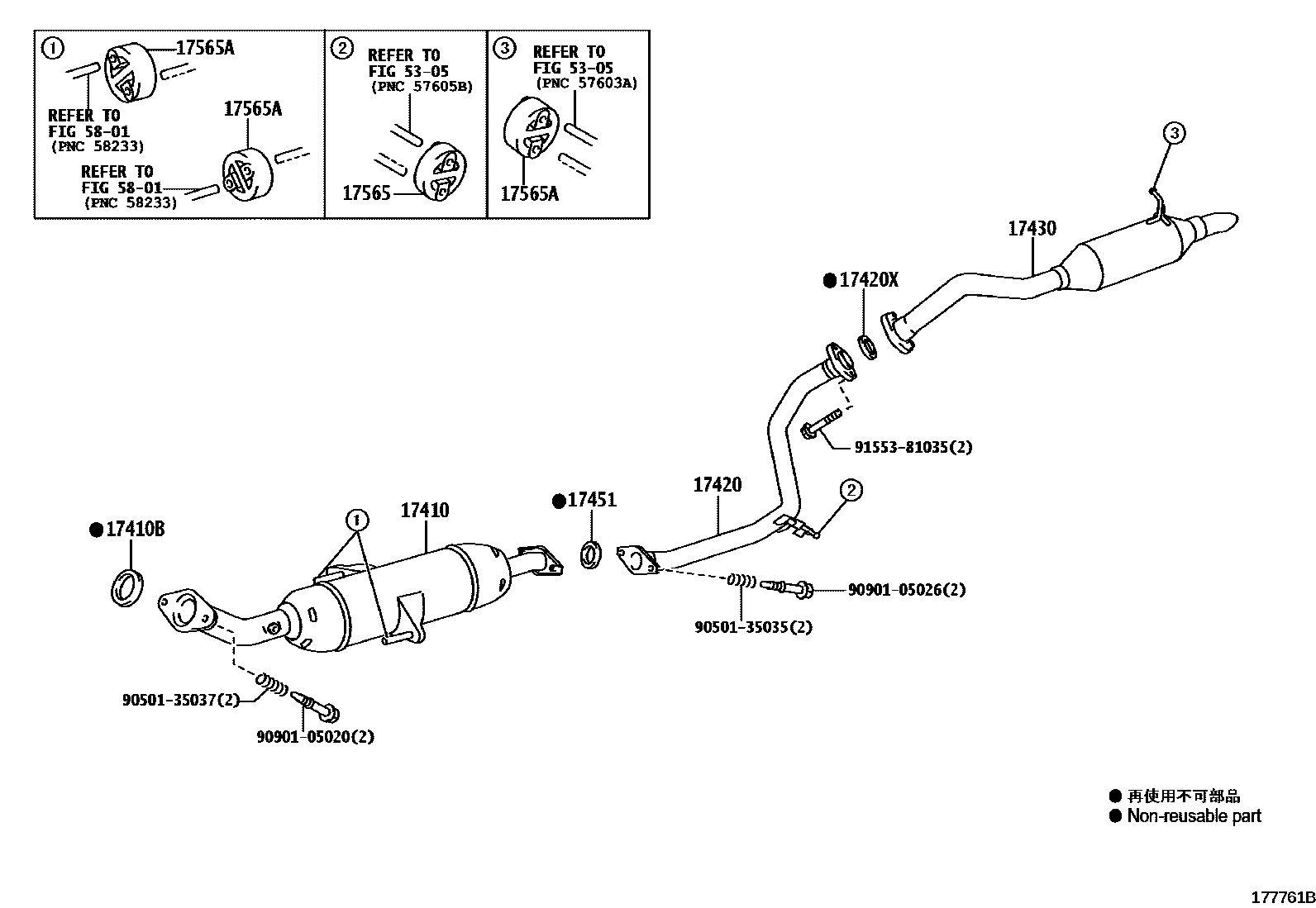

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1��(�����������) 0006 1��(�����������)

17410PIPE ASSY, EXHAUST, FRONT

main17410-0Y320i8NRFTS..NRE185¥119,000201503

main17410-21890i1NZFE..NZE184¥193,000201208-201211

sub17410-21891¥160,000

main17410-21891i1NZFE..NZE184¥160,000201212-201503

main17410-21C60i1NZFE..NZE181¥59,400201208-201503

main17410-37610i2ZRFAE..ZRE186¥119,000201208-201503

main17410-37780i2ZRFXE..ZWE186¥194,000201604

17410BGASKET, EXHAUST PIPE

main17451-21070i1NZFE..NZE18#¥1,360201208-201503

main17451-28040i2ZRFAE..ZRE186¥1,510201208-201503

sub17451-28041¥1,510

17420PIPE ASSY, EXHAUST, CENTER

main17420-21180i1NZFE..NZE181¥12,400201208-201503

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06044i1NZFE..NZE181¥630201208-201503

17430PIPE ASSY, EXHAUST, TAIL

main17430-21891i1NZFE..NZE181¥21,000201208-201503

main17430-37440i1NZFE..NZE184¥35,600201208-201211

sub17430-37441¥29,600

main17430-37441i1NZFE..NZE184¥29,600201212-201503

main17430-37490i2ZRFAE..ZRE186..180¥34,800201208-201608

sub17430-37491¥29,000

main17430-37491i2ZRFAE..ZRE186..180¥29,000201609

main17430-37500i2ZRFAE..ZRE186..RS¥34,800201208-201608

sub17430-37501¥29,000

main17430-37501i2ZRFAE..ZRE186..RS¥29,000201609

main17430-37670i2ZRFXE..ZWE186¥35,700201604

main17430-47240i8NRFTS..NRE185¥29,000201503

17451GASKET, EXHAUST PIPE

main17451-23042i1NZFE..NZE181¥790201208-201503

sub17451-23043¥720

main17451-28032i1NZFE,2ZRFAE..NZE184,ZRE186¥1,360201208-201503

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030i1NZFE..NZE181¥570201208-201503

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i1NZFE,2ZRFAE..NZE184,ZRE186¥670201208-201503

5305

5801

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

9090105020

main90901-05020¥230

9090105026

main90901-05026¥310

9155381035

main91553-81035¥120

15 parts on this diagram · 6 diagrams in section
