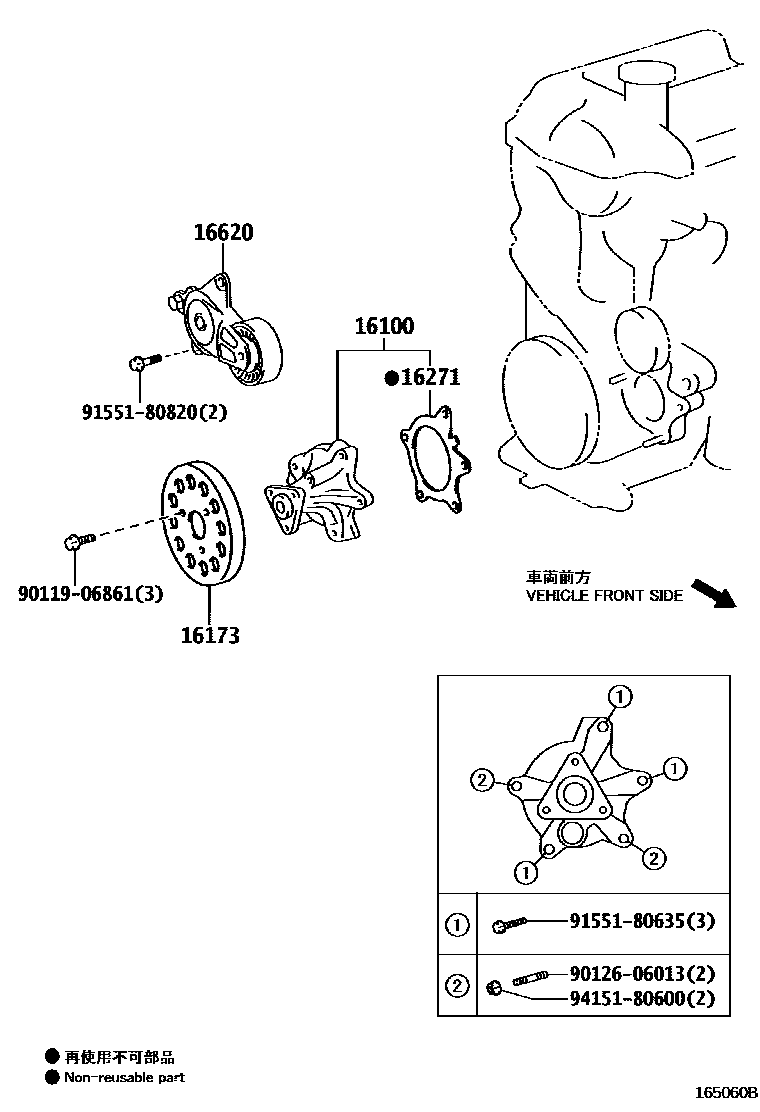

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-29157i1NZFE..NZE18#¥8,400201208-201805

sub16100-29158¥8,400

main16100-39565i2ZRFAE..ZRE186¥10,500201208-201503

main16100-80014i8NRFTS..NRE185¥9,000201503-201805

main161A0-29015i2ZRFXE..ZWE186¥15,000201604

16173PULLEY, WATER PUMP

main16173-21020i1NZFE..NZE18#¥2,970201208-201805

sub16173-21021¥2,250

16271GASKET, WATER PUMP

main16271-21021i1NZFE..NZE18#¥380201208-201503

main16271-37020i2ZRFXE..ZWE186¥470201604

main16271-37030i2ZRFAE..ZRE186¥520201208-201503

main16271-47060i8NRFTS..NRE185¥410201503

16620TENSIONER ASSY, V-RIBBED BELT

main16620-21010i1NZFE..NZE181¥13,400201208-201503

sub16620-21011¥10,100

main16620-37010i2ZRFAE..ZRE186¥16,100201208-201303

sub16620-37011¥16,100

main16620-37011i2ZRFAE..ZRE186¥16,100201303-201506

sub16620-37030¥10,100

main16620-37030i2ZRFAE..ZRE186¥10,100201507

main16620-47060i8NRFTS..NRE185¥16,100201503-201612

sub16620-47061¥11,200

main16620-47061i8NRFTS..NRE185¥11,200201701

9011906861

main90119-06861¥60

9012606013

main90126-06013¥130

9155180635

main91551-80635¥80

9155180820

main91551-80820¥80

9415180600

main94151-80600¥60

9 parts on this diagram · 4 diagrams in section
